Top Manufacturer AC Electric Haulage Coal Shearer/Coal Mining Machinery Introduction
The MG100/111-TD thin seam A.C. power chain-hauled shearer is the frequency conversion velocity modulation electricity which researches and develops on the basis of MG100-T shearer.
The MG100/111-TD thin seam A.C. power chain-hauled shearer, it mainly consist of cutting and hauling two major parts . The motor capacity of cutting part is 100KW, and in hauling part is 11KW. The total installed capacity is 111KW. In hauling part the motor be transverse arranged, the electrical machinery controlling system has introduced the SPWM frequency conversion velocity modulation technology, enabled shearer to be allowed to act according to the anthrax degree of hardness, the movement resistance to adjust the speed automatically ,so that to realized the best operation effect , to adapt the requirement of the working face , easy to control and operation , realized the hauling with stepless speed regulation , to get the stronger towing power.
Top Manufacturer AC Electric Haulage Coal Shearer/Coal Mining Machinery Parameter
Mining height scope |
0.75-1.5m |
Cutting depth |
0.8m, 1m |
Suitable coal bed hardness |
f<=2.5 |
Productivity |
100-200 t/h |
Roller rotation speed |
82r/min |
Roll drum diameter |
Φ750mm, Φ850mm, Φ1000mm |
Working voltage |
660V |
Maximum working towing force |
120KN |
Rated working towing force |
90KN |
Towing speed |
0-3.6m/min |
Haulage chain specification |
Φ18mm×64mm |
Rocking shaft pivot angle |
Raise 45°, Decline 16° |
Outline size |
5780mm×1883mm(Cutting depth 800mm)×580mm(length×width×height) |
Machine weight |
about 7t |

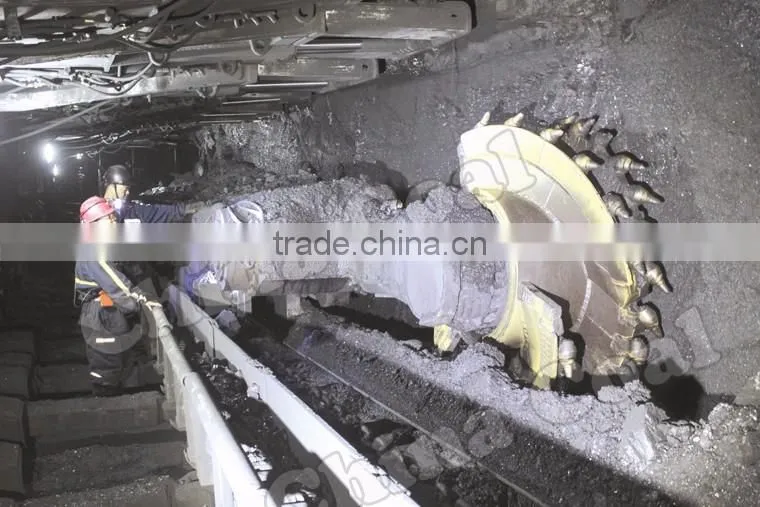

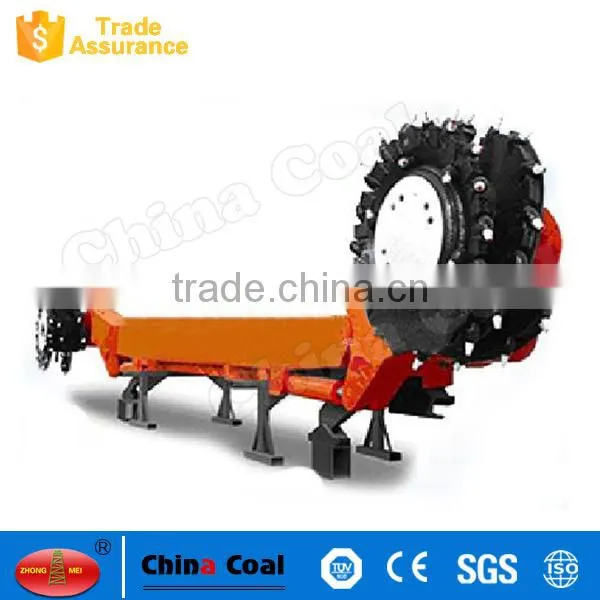

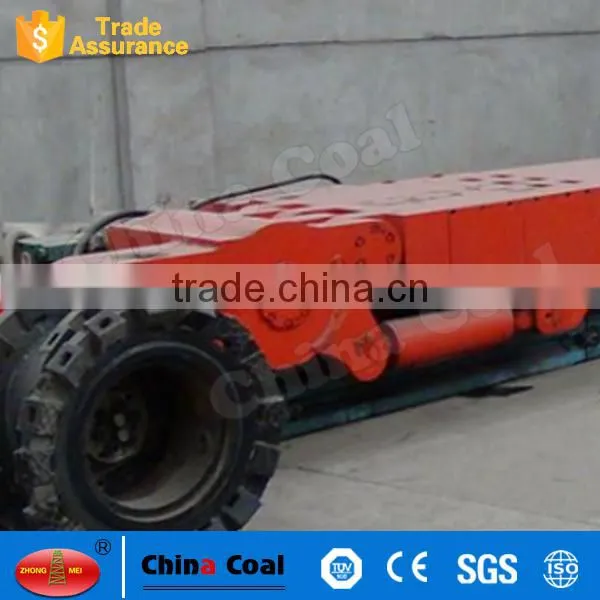

Top Manufacturer AC Electric Haulage Coal Shearer/Coal Mining Machinery Photos
