Product Introduction

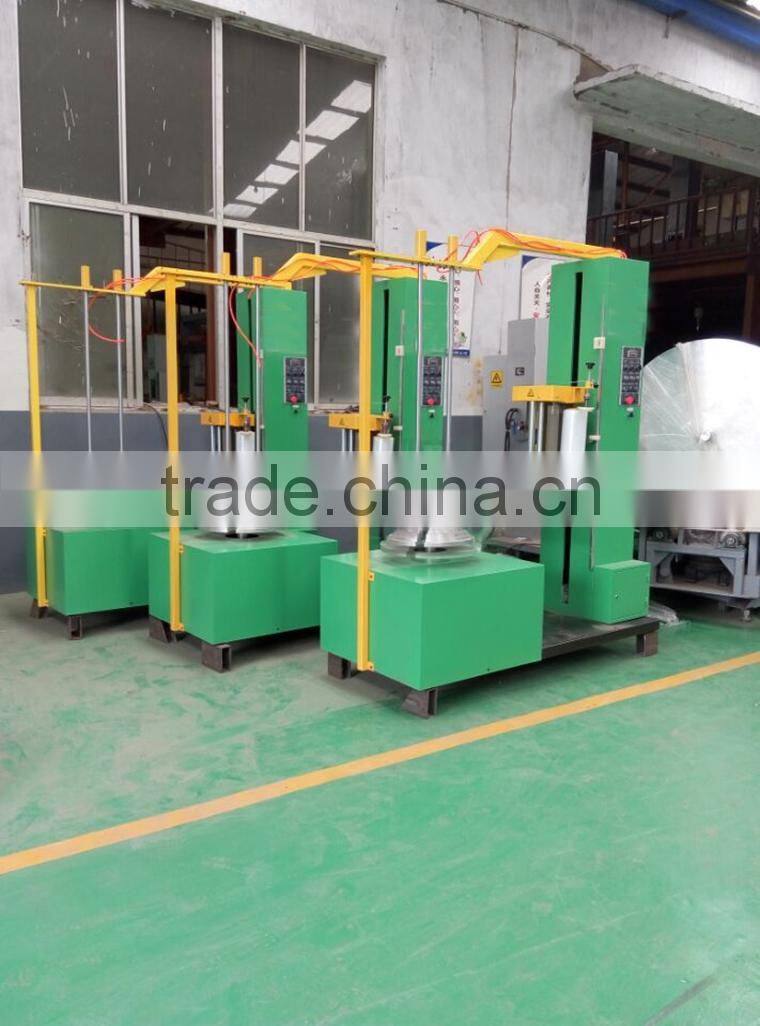

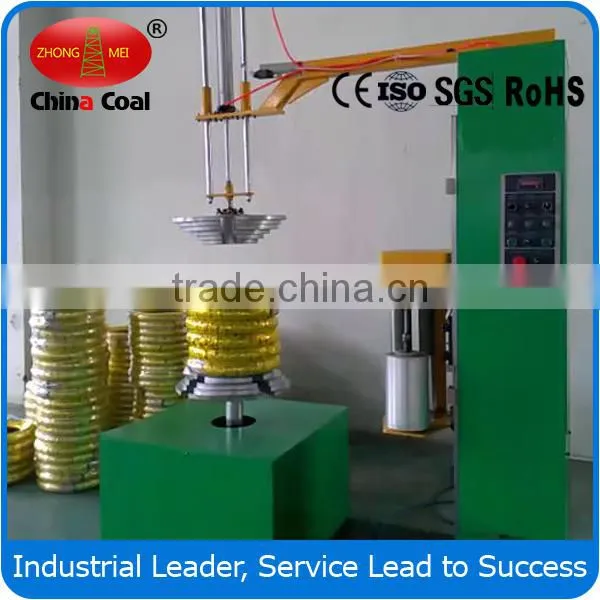

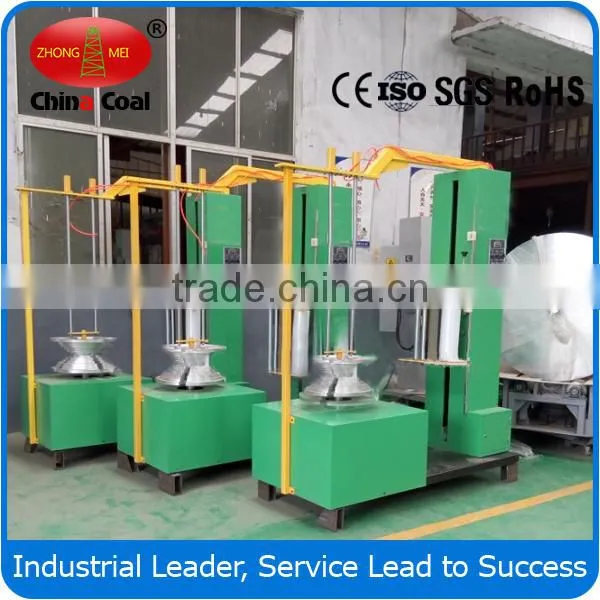

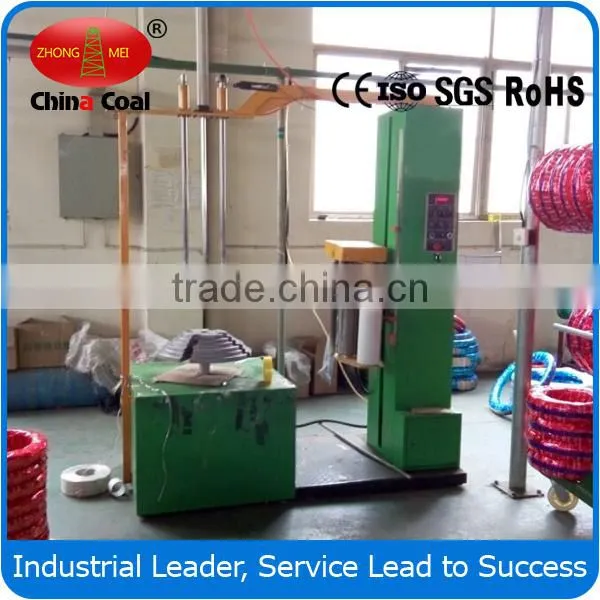

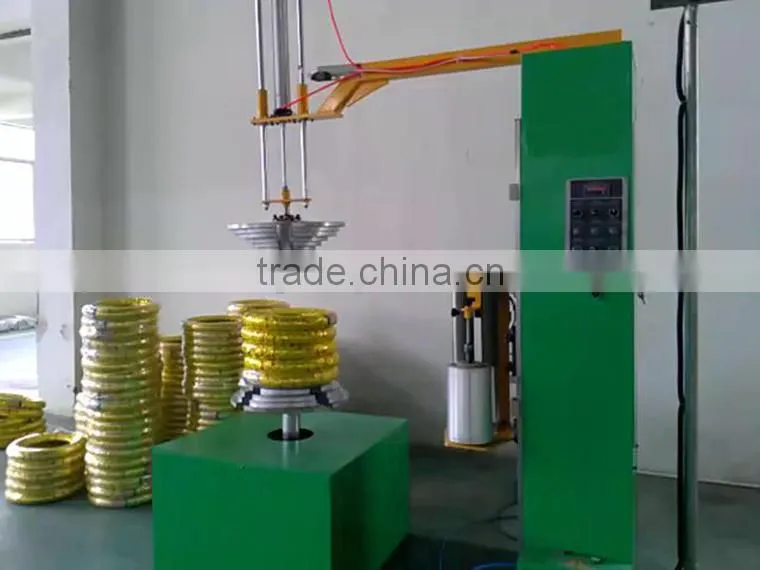

Tyre Wrapping Machine From China Coal

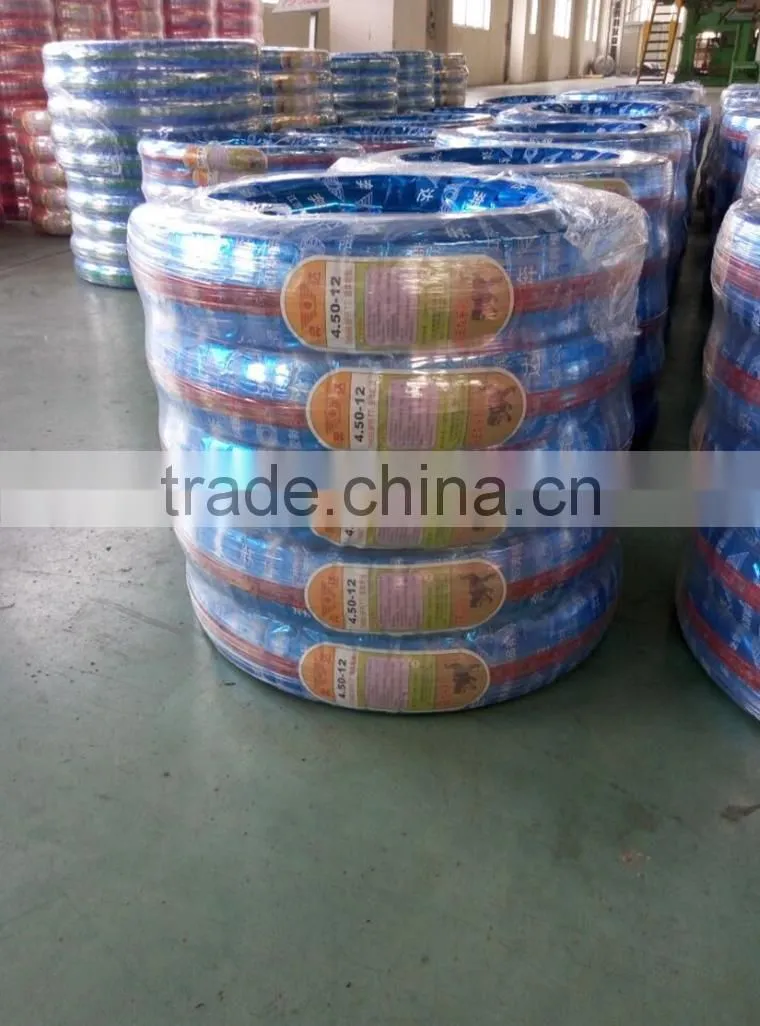

NP series tyres wrapping stretch film machine is special design for electrocar tyres/motorcycle tyres,etc other ring products.The advantange of this machine: absoultely replace the human power,packing speed quickly,easy to operate,improve efficiency, packing effect perfectly. Film provides extra support while the tyres are being transport to protect them become damaged. And the plastic and closing label cannot be removed and replaced by a thief .
1,Material usage:
Machine using a standard type of stretch film packaging material for creating a hard to tear,resistance,waterproof Cover over the baggage.The film is recyclable.
Specification of film:
width:500mm,
thickness:20-25 microns,
length:1500meters,
weight: max:16kg,
stretchable,one side sticky,transparent or colored.
2,Main technical data of the machine:
1.Control System
PLC control
Separate top ,bottom & up-down Wrap Counter options
Overwrap time is up to create an overwrap
Reinforce wrap times is set to better secure 2 loads placed on top of each other
Film Tension Control adjustment on the panel
Separate start, pause and emergency stop buttons
Power indicator
Manual carriage up/down
Variable Turntable Speed
Carriage up/down speed control
Manual/automatic exchangeable
3.Turntable drive
0-12rpm variable turntable speed by frequency changer
Position turntable alignment
Soft start
4.Film carriage
Powered pre-stretch system up to 250% to min film consumption
Film delivery variable speed by separate DC Drive Motor
Electronic film tension control adjustment on panel
Film dancer-bar with variable speed output
5.Film carriage Drive
Heavy duty double-chain carriage lift, calm and safety
Film carriage variable speed by frequency changer
Main Parameter
Wrapping size |
8-21 inch tyres |
Machine size(L*W*H) |
1800mm*650mm*2000mm |
Packing height(mm) |
500-1000mm |
Turntable size |
600mm |
Electrics |
220V/50Hz/1 phase |
Power |
1.5kw |
Turntable loading |
100kg |
Machine weight |
300kg |
Packing efficiency |
20-40 loads/hour |
Turntable speed |
0-18rmp |
Figure Photos
