Product Introduction

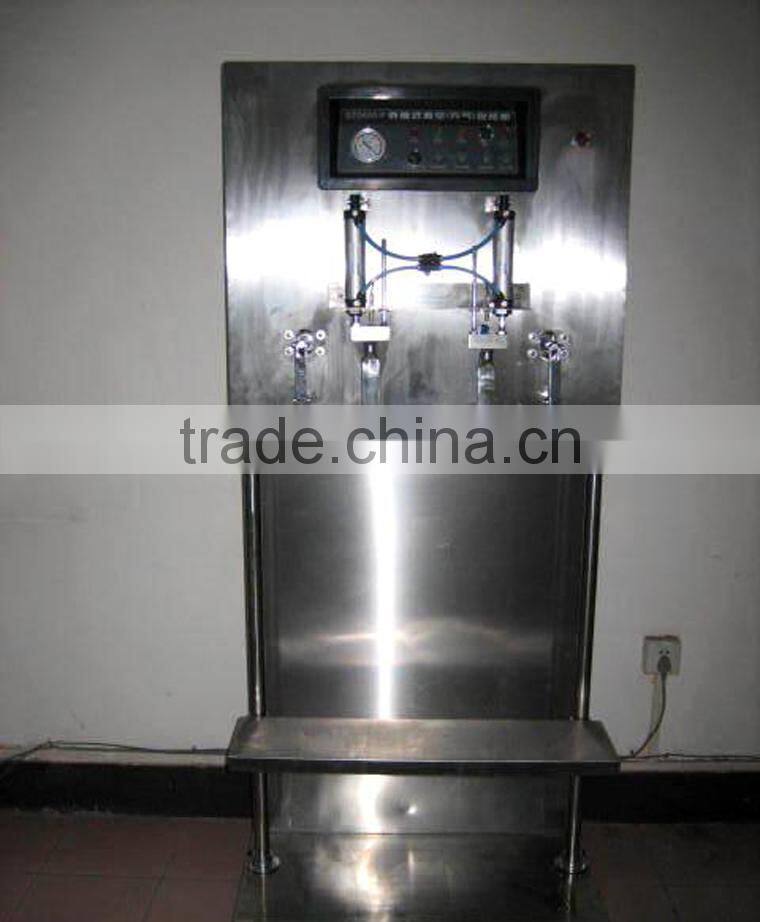

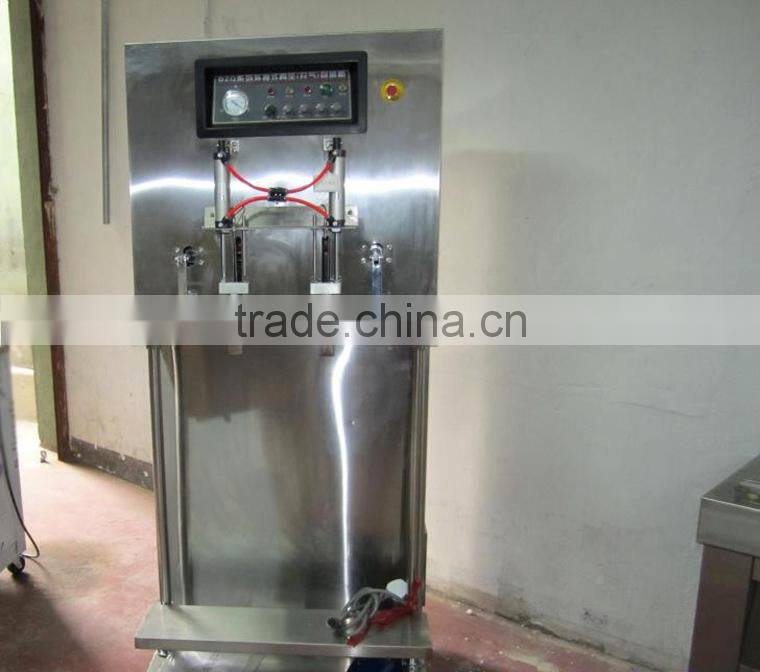

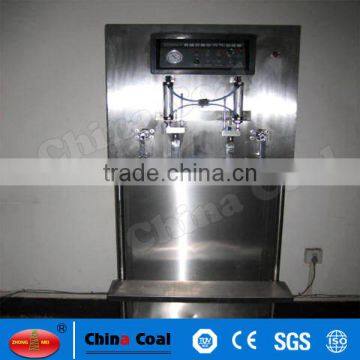

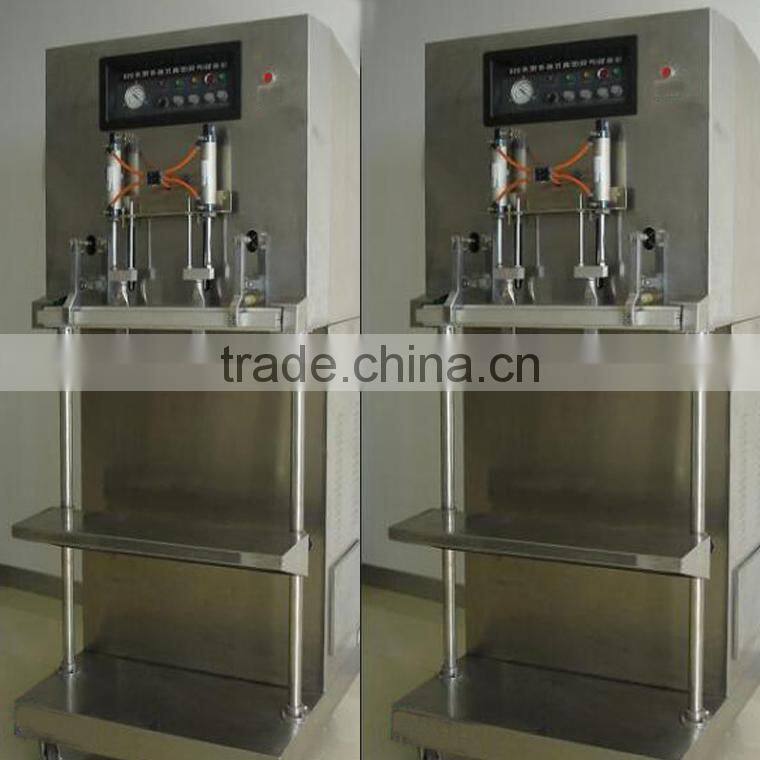

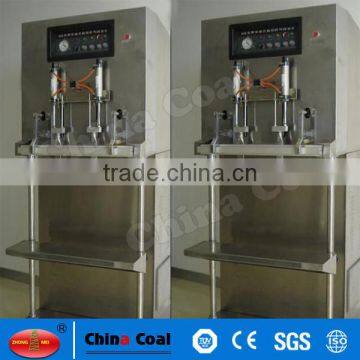

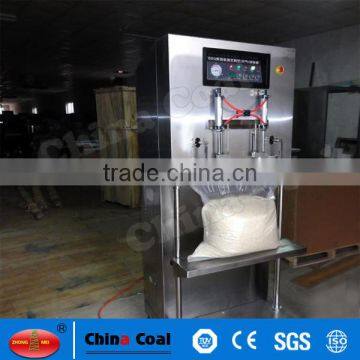

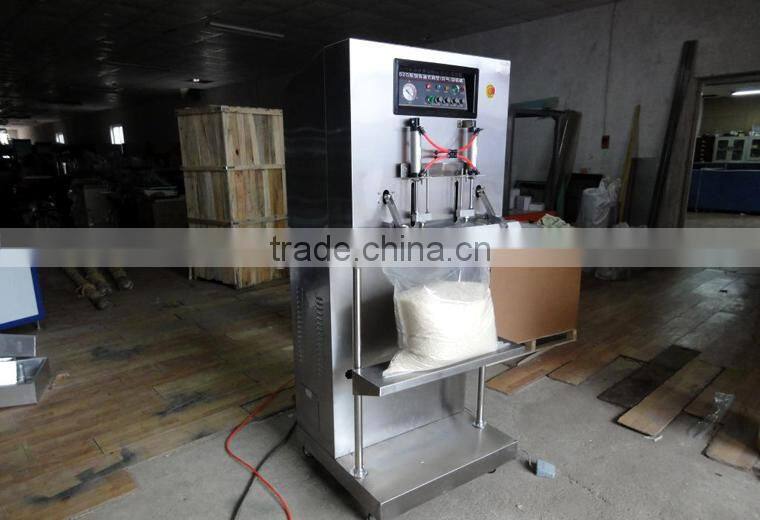

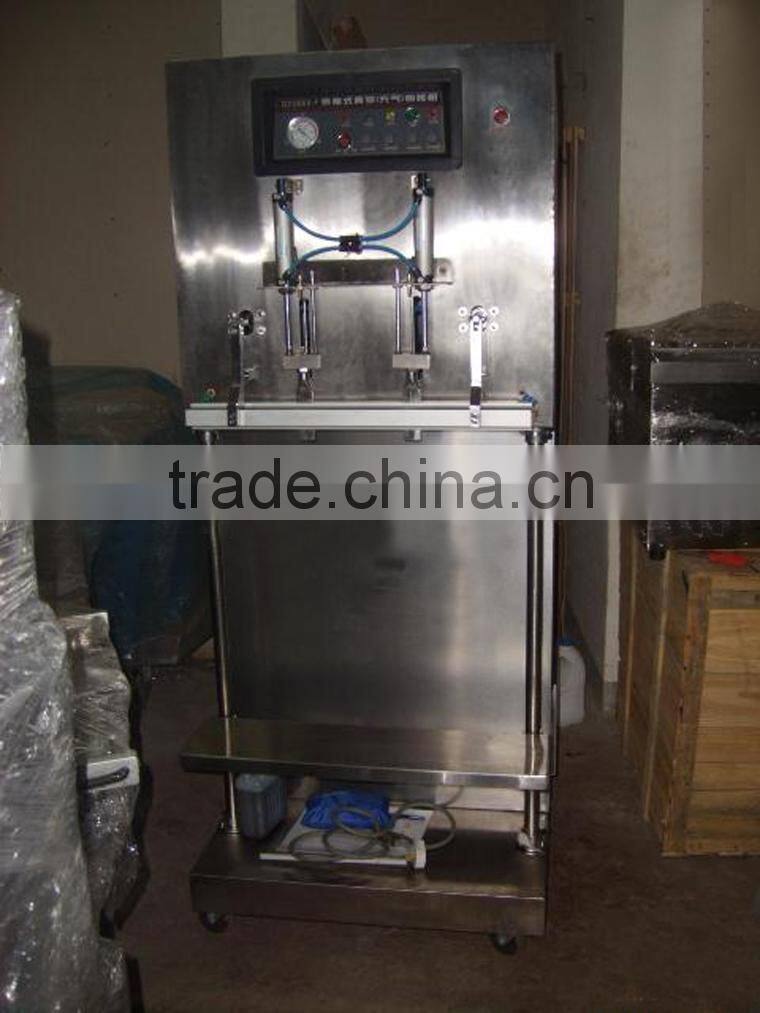

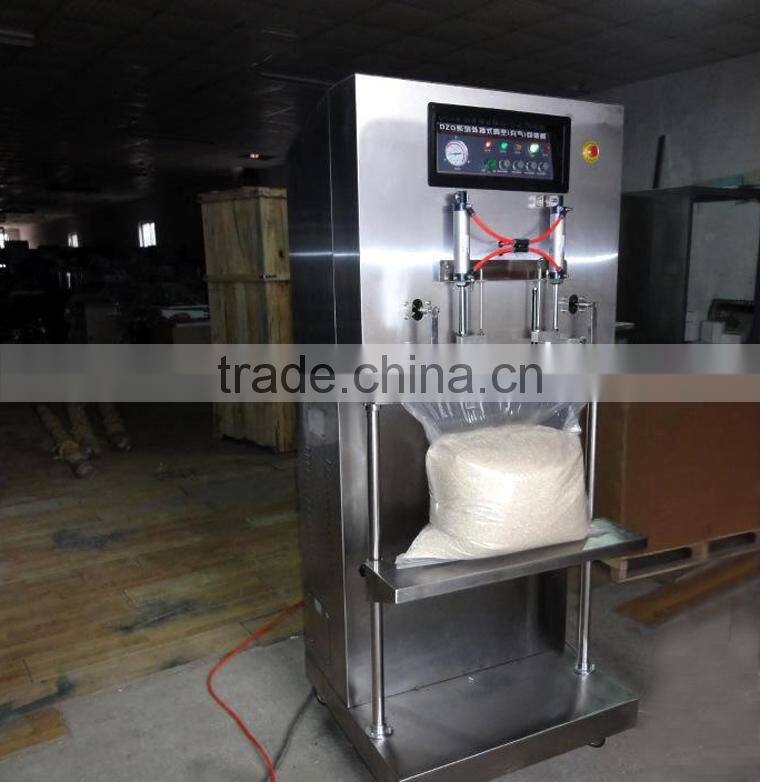

2017 DZQ-700L/S Automatic food vertical vacuum packing machine
External multi-function modified atmosphere vacuum packaging machine is a basic external vacuum packaging machine, plus could be fixed gas flush system for inertgas filling or mixed gas filling in the packaging according to customers’ actual requirements. We will supply powder filter according to power’s mesh number if the packing item is powder at customers’ option. Generally heat sealing comes with single sealer, double sealers heat sealing can be chose according to customers’ bags different thickness at customers’ option.
Features:
1.Control system: OMRON programmable PLC, text display.
2.Pneumatic system::Taiwan Air TAK pneumatic component.
3.External vacuum suction structure: Two cylinders, two suction nozzles.
4.Lift-down conveyor, easy in operation.
5. Heavy moving wheel (with brake): The heavy moving wheel with high bearing capability, which makes customer moving easily.
Main Parameter
Model(vacuum packaging machine) |
DZQ-700L/S (stainless steel) |
Machine Dimension(mm) |
730*830*1800 |
Sealer Form |
Double Heat |
Sealer Dimension(mm) |
700*10*2 |
Sealer Power Consumption(kw) |
1 |
Pump Capacity(m3/h) |
20 |
Pump Power Consumption(kw) |
1.1 |
Voltage(v) |
110/220/240 |
Hertz(Hz) |
50/60 |
Production Cycle(times/min) |
2-3 |
Sealer Adjustment Range(mm) |
1300-475 |
Conveyor Width (mm) |
230 |
Conveyor Length (mm) |
720 |
Conveyor Loading(kg) |
50 |
N.W.(kg) |
160 |
G.W.(kg) |
230 |
Shipping Dimension(mm) |
1900*920*1120 |
Figure Photos
B/L of The History Trading
About Us
Shandong China Coal Group Co., Ltd Import&Export Branch is a major international business service platform of Shandong China Coal Group. As an integrated service provider and supplier, we have a more comprehensive system of export business. With the clear development strategy, innovative business models, sophisticated internal management, strict risk control system and excellent staff, we strives to provide customers with more convenient, thoughtful, high quality service. And our products have been exported to more than 140 countries and regions over the world, like Australia, Russia, Colombia, Ukraine, Georgia, United States, Southeast Asia and so on.
Customers Visit
Qualification Certification
