Concrete Mixture Machine, Concrete Mixture, Concrete Mixer Machine
Price Introduction

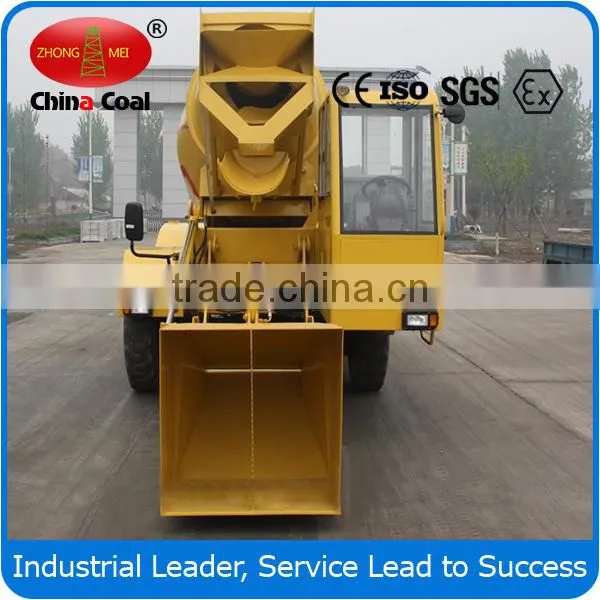

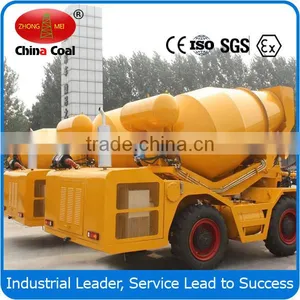

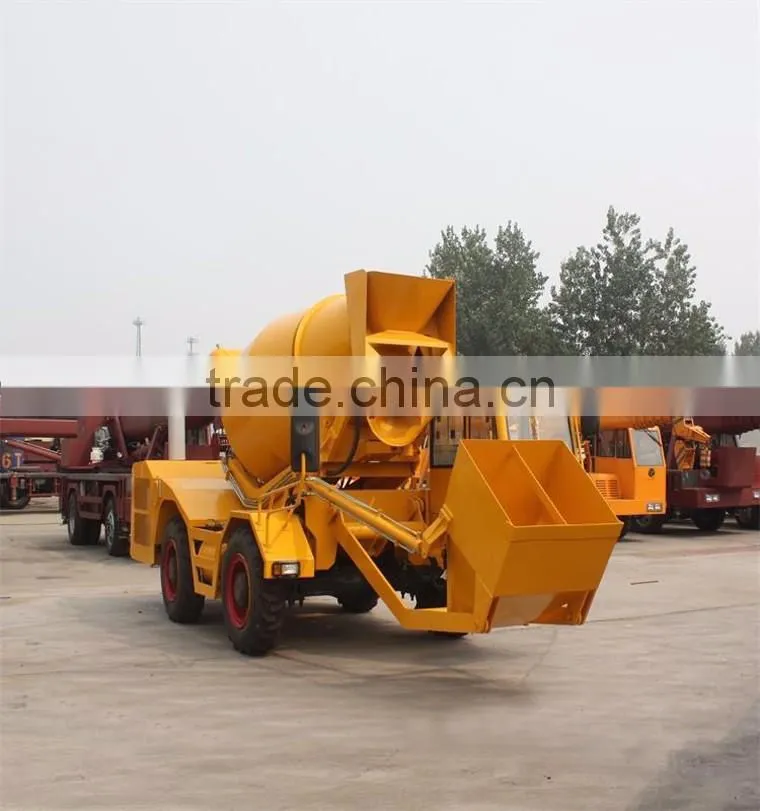

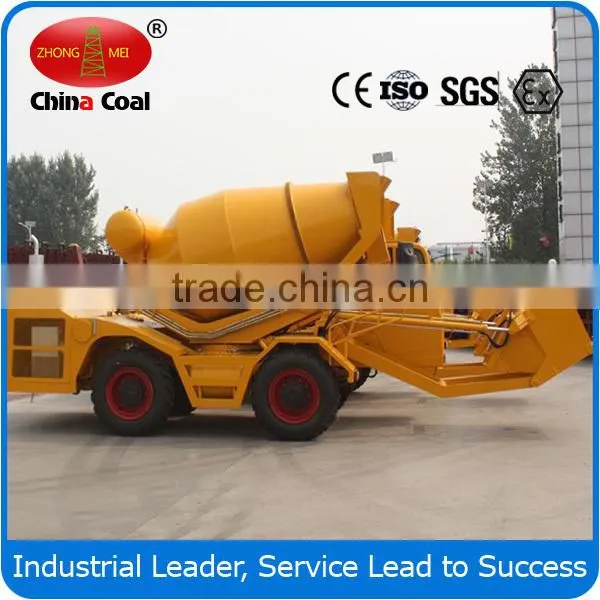

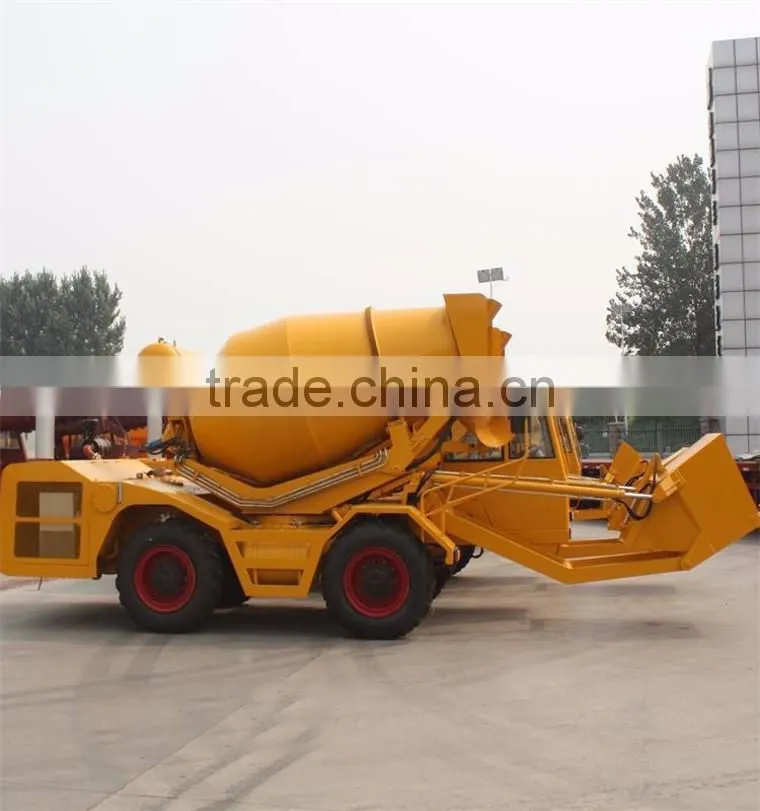

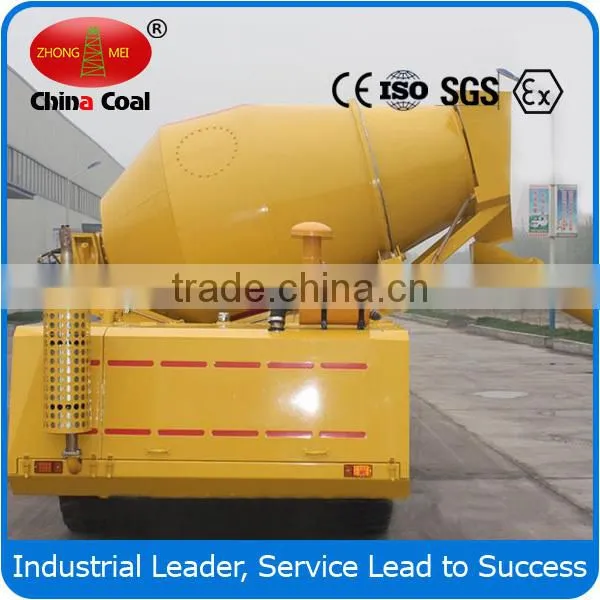

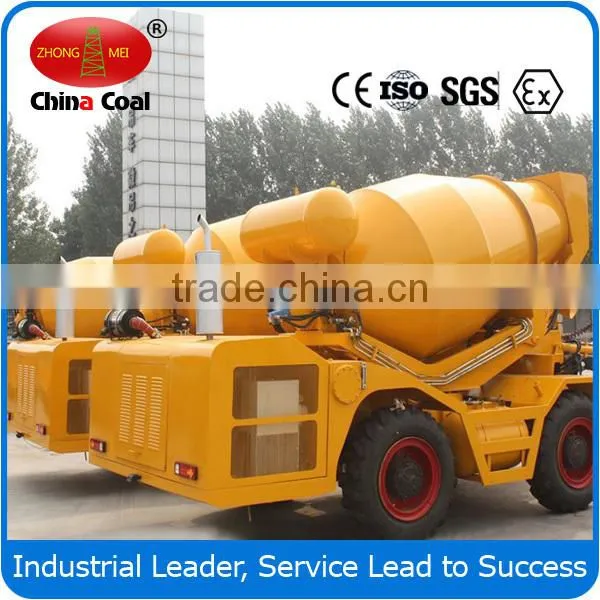

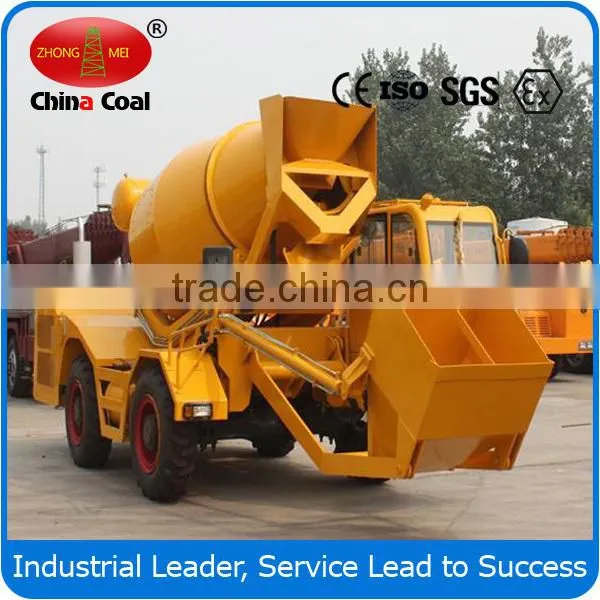

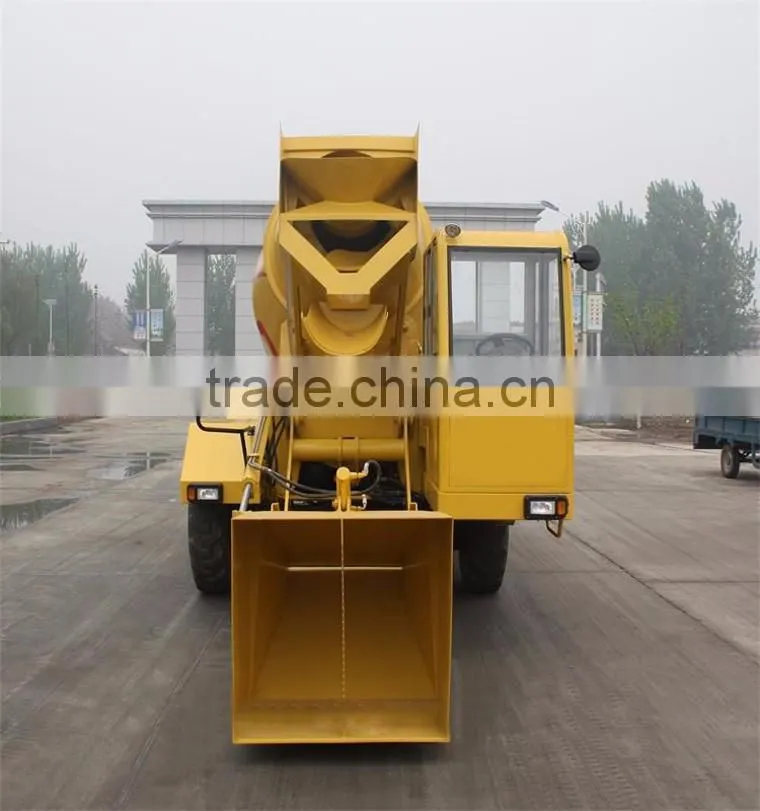

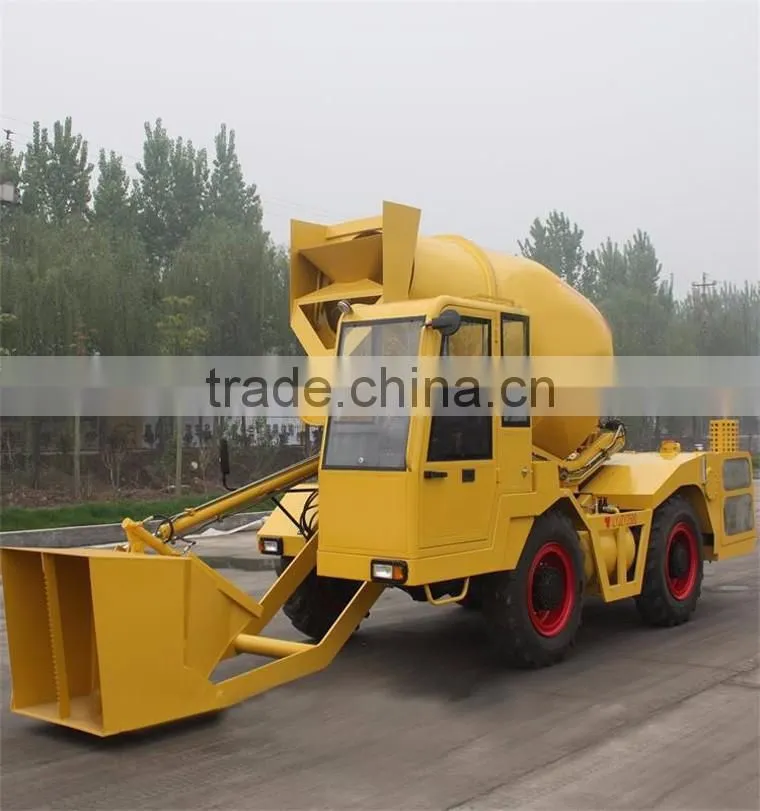

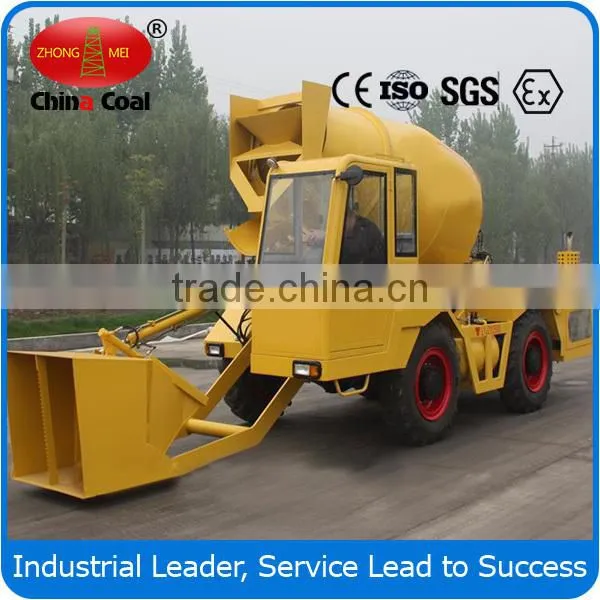

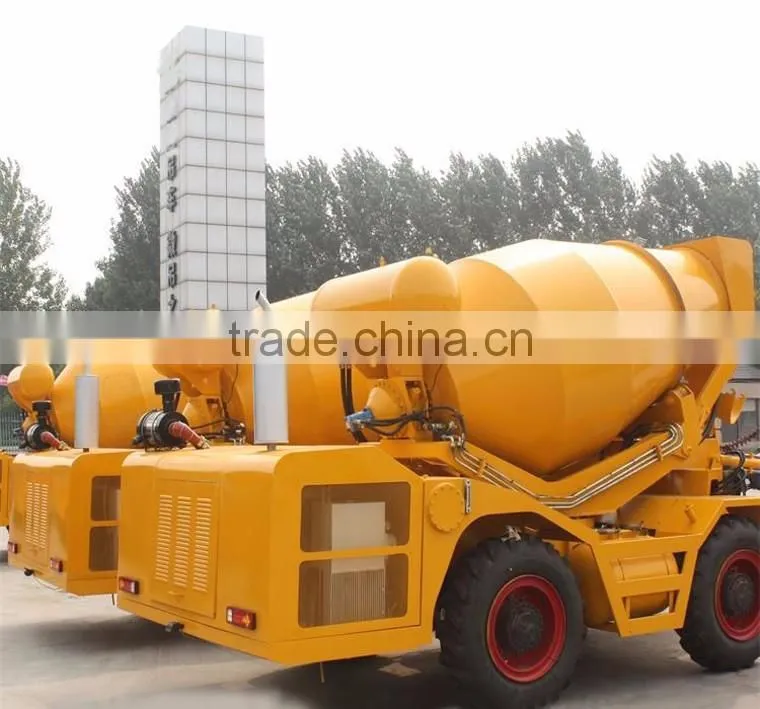

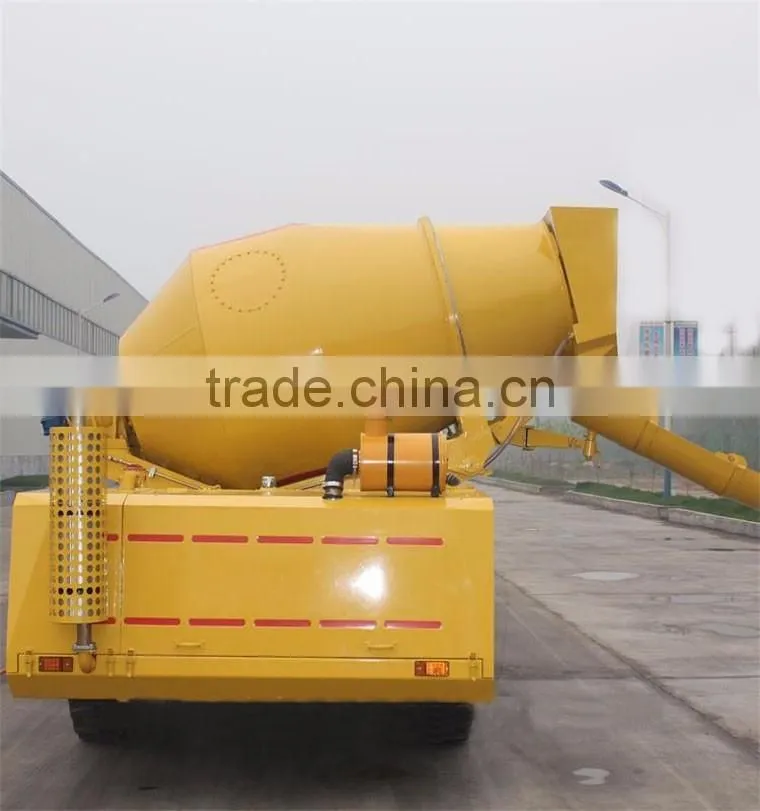

270 rotation 2.5cbm Mobile Self Loading Concrete Mixer Machine with water pump
1.The vehicle size is small, suitable for limited site and widely used in new rural construction, urban construction ,tunnel ,airport ,seaport ,high-speed rail site and so on.
2. High strength steel plate, enhance vehicle load capacity. the vehicle with high stability
3.Small capacity mixing drum design, the angle is lower than same profession, effectively reduce the gravity of vehicles improve thedriving safety.
4. Rolling ring and mixing drum use 16mn overall forging normalizing manufacturer and processing.
5.Mixing blade with varying pitch design, and simplify the feeding device, ensure the speed faster and mixing performance better.
Main Parameter
Attributes |
Unit |
Parameters |
|
Actual mixing capacity |
m3 |
2.5 |
|
Mixing drum capacity |
m3 |
3.5 |
|
Angle of inclination |
0 |
16 |
|
Rotational speed |
r/min |
0-14 |
|
Rotational direction(Forward observation from rear) |
Feed:Clockwise and discharge:Anticlockwise |
||
Mixing drum vanes |
Two spiral vanes and auxiliary blades |
||
Productivity |
4 batches per hour |
||
The slump of concrete |
mm |
70-260 |
|
Hydraulic Transmission System | |||
Oil Pump |
|
CBF-32 |
|
Motor model |
|
BMS-100 |
|
Reduction box/speed ratio |
|
HJ220 |
|
Water supply System | |||
Water supply |
|
Bring water agencies |
|
Water tank volume |
L |
450 |
|
Chassis and Engine Parameters | |||
Engine Model |
|
Perkins 1104D-44TA |
|
Form |
|
Direct injection four stroke water cooled turbocharged diesel engine |
|
Air cylinder amount |
|
4 |
|
Displacement |
L |
4.58 |
|
Rated power |
kw/r/min |
81/2300 |
|
Maximum torque |
N.m/r/min |
450/1500-1700 |
|
Maximum travelling speed |
km/h |
24 |
|
Minimum turning diameter |
M |
8 |
|
Gradeability |
% |
24 |
|
Tire |
|
9.00-20 |
|
Driving form |
|
4 wheel drive,4 wheel steering |
|
Vehicle equipment quality |
kg |
6250 |
|
Maximum loading weight |
Kg |
6500 |
|
General weight of the carload |
kg |
12750 |
|
overall dimension(L/W/H) |
mm |
6700x2400x3100 |
|
Figure Photos
