Product Introduction
1. Steel base plate and saddle for protection the hollow piston and cylinder damage and increasing abrasion performance
2. Dust ring stop the dust into cylinder during extension
3. Floating type plunger prevents the block caused by slight unbalance loading of piston
4.Step-limited piston prevents over-travel and is capable of stopping the spring compressed completely
5. Wear ring prevent metal to metal contact, increasing cylinder life and resistance to be scratched
6.High-efficient seal extends cylinder life
7.Handles included on all models
Main Parameter
Item No. |
RCH-2050 |
RCH-20100 |
RCH-3050 |
RCH-30100 |
RCH-6050 |
RCH-60100 |
RCH-10075 |
Output(T) |
20 |
20 |
30 |
30 |
60 |
60 |
100 |
Stoke(mm) |
50 |
100 |
50 |
100 |
50 |
100 |
75 |
Effective area(cm2) |
22.9 |
22.9 |
36.29 |
36.29 |
67.89 |
67.89 |
94.98 |
Oil Capacity(L) |
0.16 |
0.32 |
0.25 |
0.5 |
0.45 |
0.9 |
1.2 |
Height of products(mm) |
153 |
217 |
153 |
217 |
164 |
231 |
254 |
Extended height(mm) |
214 |
328 |
214 |
328 |
225 |
342 |
340 |
Outside(mm) |
98 |
98 |
115 |
115 |
155 |
155 |
180 |
Bore die(mm) |
73 |
73 |
88 |
88 |
125 |
125 |
140 |
Principal Dia(mm) |
54 |
54 |
68 |
68 |
93 |
93 |
110 |
Thead for input oil-port(ZG) |
27 |
27 |
34 |
34 |
54 |
54 |
79 |
Saddle protrusion form plgr(mm) |
3/8" |
3/8" |
3/8" |
3/8" |
3/8" |
3/8" |
3/8" |
Weight(kg) |
7.2 |
10 |
10 |
13.4 |
17.2 |
23.2 |
41 |

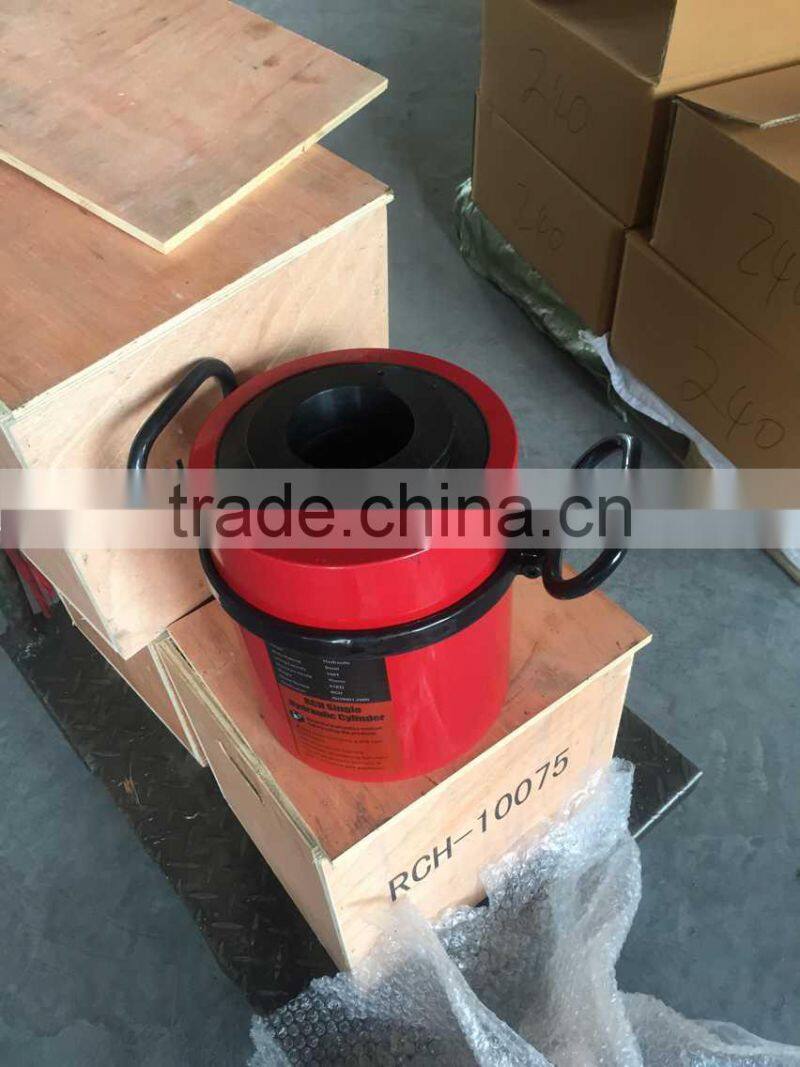

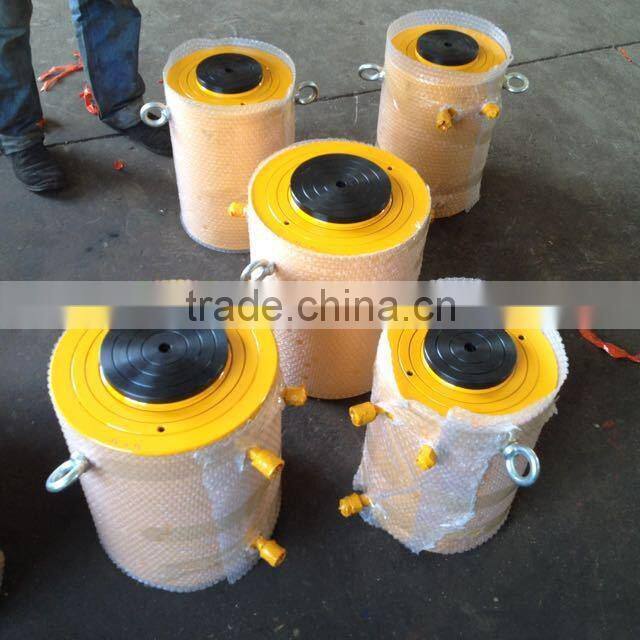

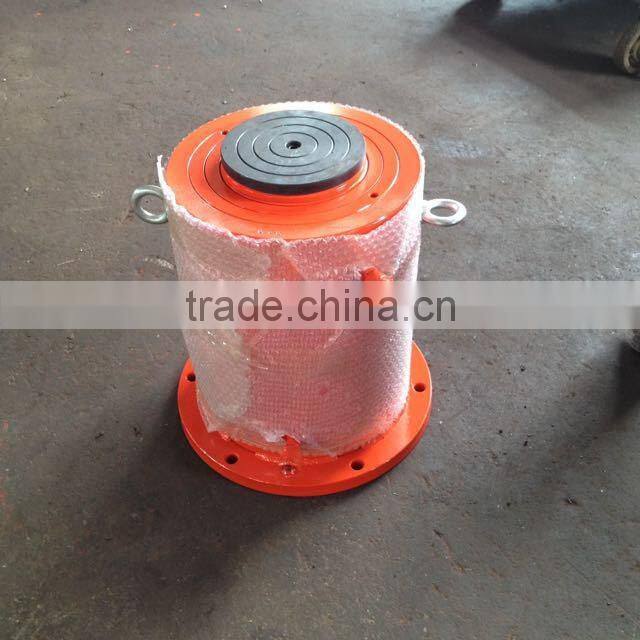

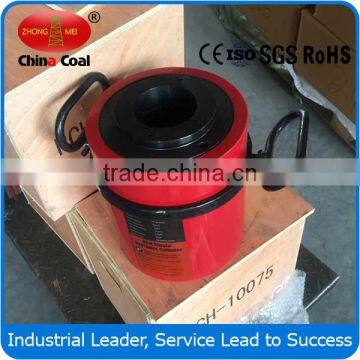

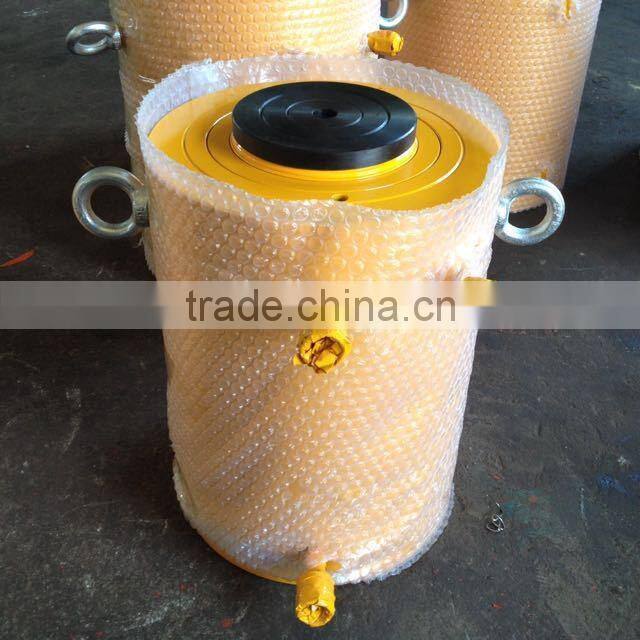

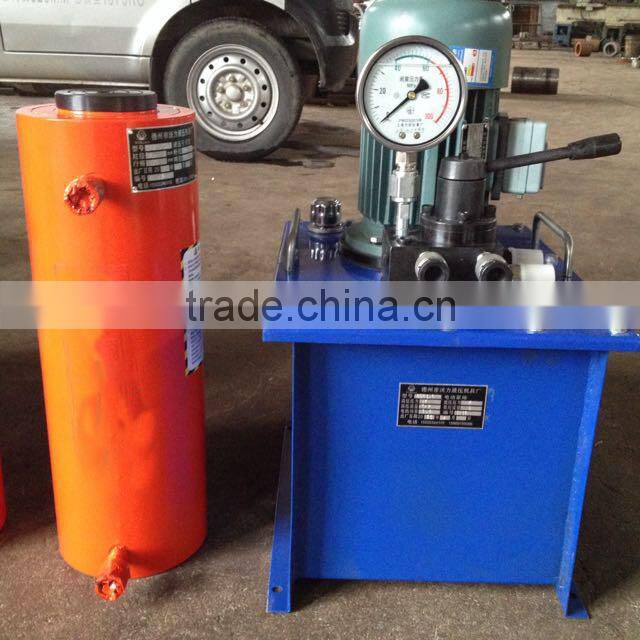

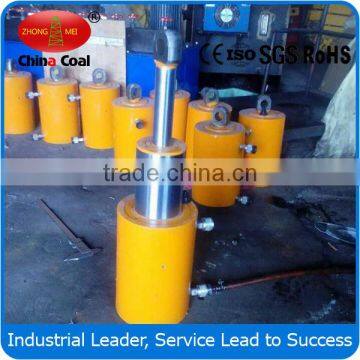

Figure Photos
