2017 FPY Series General Purpose Hydraulic Cylinders For Sale
US$ 30 - 500
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
China Coal
Model Number:
FPY
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hydraulic Tools Small Hydraulic Jack Mechanical Track JacksUS$ 1 - 100MOQ: 100 Pieces -
China Manufacturer Nature Quartzite Cultured Stone Quartz StoneNegotiableMOQ: 1 Set
-
Completed Coated Cemented Carbide CNC Turning InsertUS$ 1 - 10,000MOQ: 1 Set
-
GD-7000A Airless Spray Painting MachineNegotiableMOQ: 1 Set
-
Automatic Rebar Tying MachineUS$ 1 - 10,000MOQ: 1 Set
Place of Origin
Shandong, China
Brand Name
China Coal
Model Number
FPY
Type
Hydraulic Jack
Certification
ISO
Min Height
40mm
Max Height
110mm
FPY series General purpose hydraulic cylinders Introduction
2017 FPY series General purpose hydraulic cylinders for sale
1. Hydraulic hydraulic jack- Low height is suit for working in narrowness; Short stroke can broke up times and times.
2. The surface of plunger is finished with chrome plate to protect the using of longevity of the product;
3. Plunger has the function of retracting automatically.
FPY series General purpose hydraulic cylinders Parameter
ITEM NO |
FPY-05 |
FPY-10 |
FPY-20 |
FPY-30 |
FPY-50 |
FPY-100 |
FPY-200 |
Tonnage |
5T |
10T |
20T |
30T |
50T |
100T |
200T |
Work Travel |
7mm |
10mm |
12mm |
14mm |
18mm |
21mm |
22mm |
Cylinder Effective area |
9.61cm² |
11.3cm² |
22cm² |
31.1cm² |
56.7cm² |
95cm² |
201cm² |
Collapsed Height |
41mm |
52mm |
58mm |
64mm |
72mm |
88mm |
102mm |
Extended height |
48mm |
62mm |
70mm |
82mm |
90mm |
109mm |
124mm |
Outside dia(mm) |
64x48 |
81x56 |
100x77 |
115x95 |
138x115 |
185x160 |
275x245 |
CylinderBore die |
35mm |
43mm |
60mm |
75mm |
95mm |
130mm |
195mm |
Weight |
0.7KG |
1.50KG |
2.7KG |
4.5KG |
7.0KG |
15.7KG |
42.7KG |

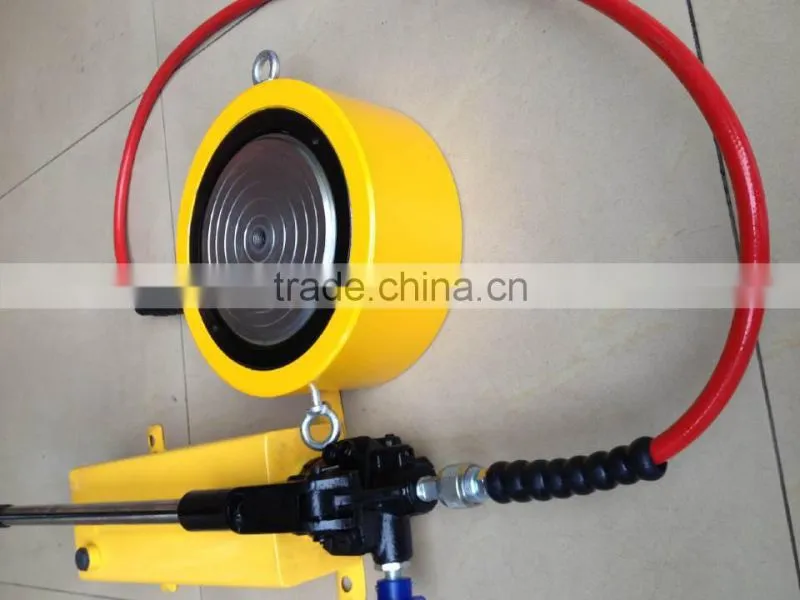

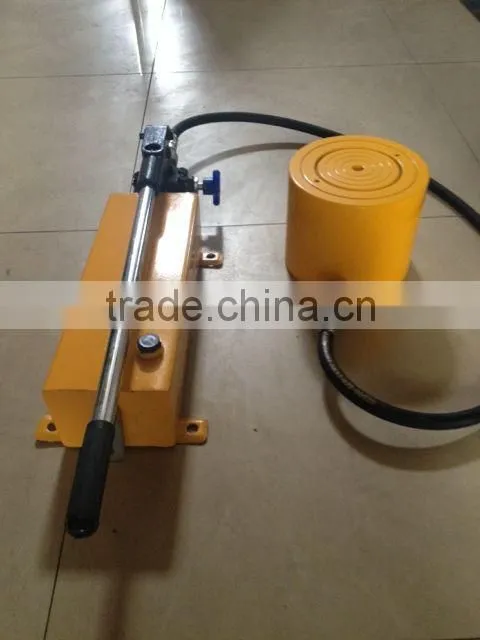

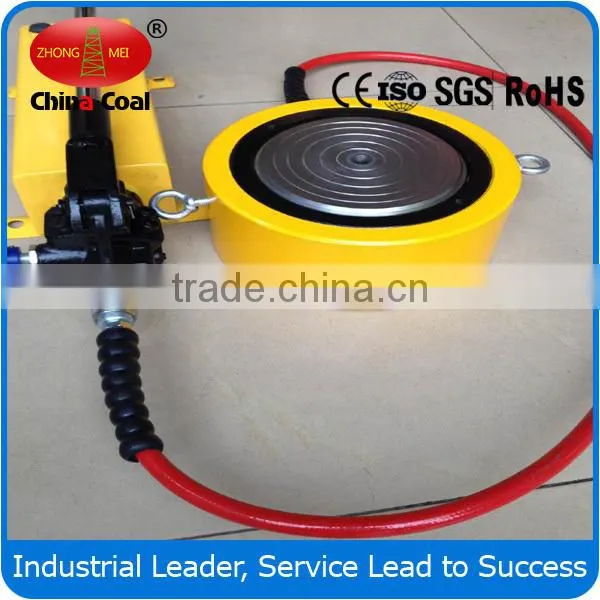

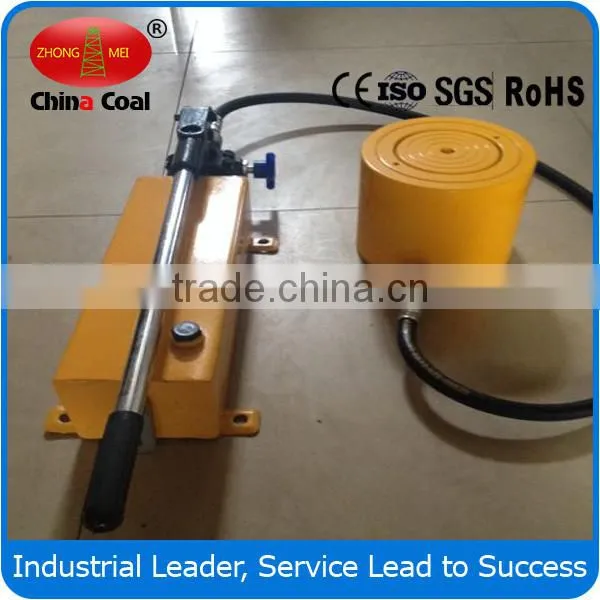

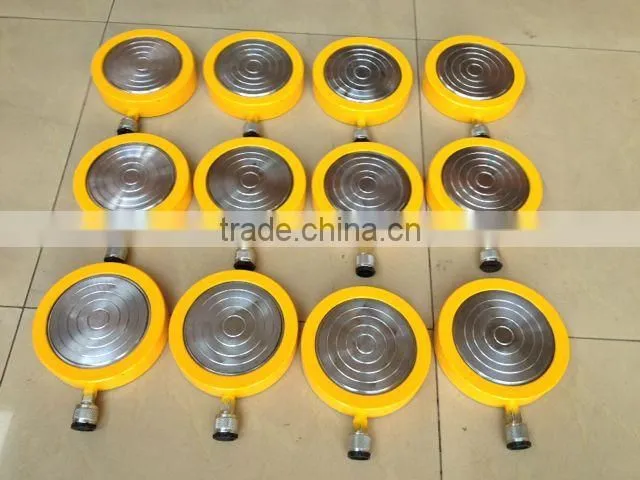

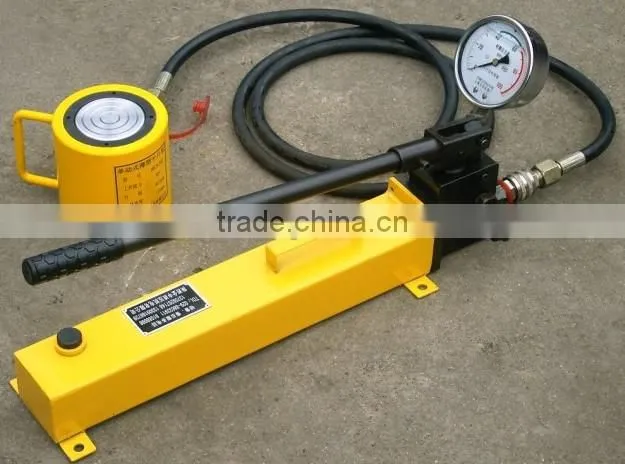

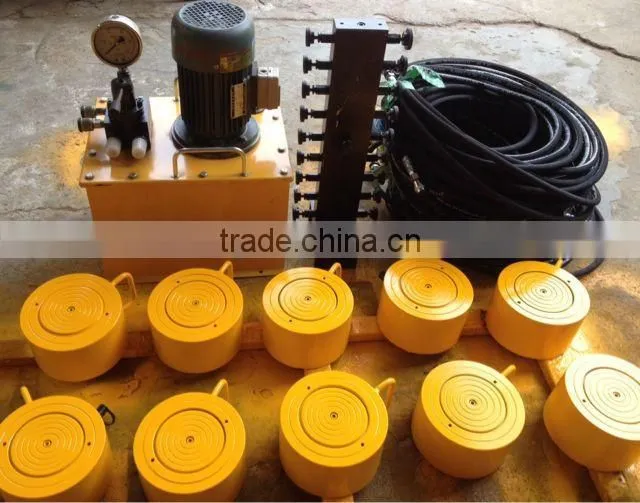

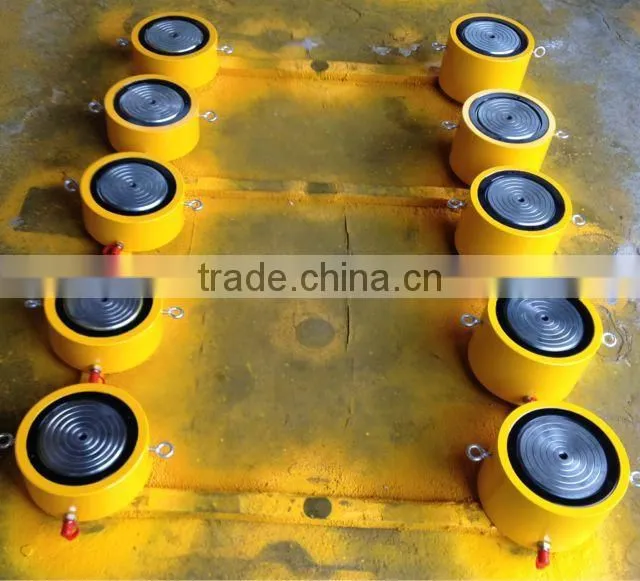

FPY series General purpose hydraulic cylinders Photos
