Specifications
DLD1-16B Single Plate Electromagnetic Clutching voltage:12V or 24V dc
B.Rating torque:160N.m
C.Power:45W
D.Speed:5000
This is Lixin Electromagnetic Clutch Co., Ltd. from China, which is a professional manufacturer of electromagnetic clutch and electromagnetic brake over 20 years experience in this field.
If you have any inquiry about clutch and brake, please kindly send your picture/drawings with detailed requirements for studying,we can also develope your new own product.We will give you our competitive price for reference and satisfactory services.

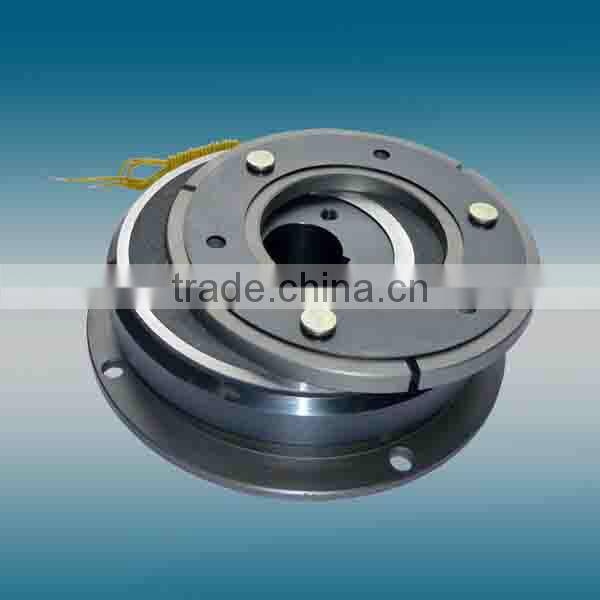

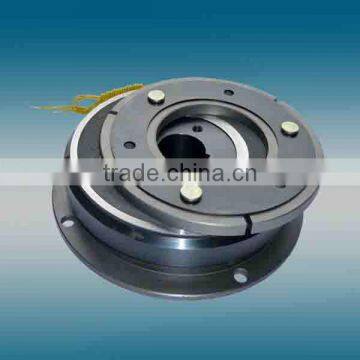

DLD1-16B Single Plate Electromagnetic Clutch
ing voltage:12V or 24V dc
B.Rating torque:160N.m
C.Power:45W
D.Max Speed:5000
DLD1 basic Clutches are singledisc clutches for dry operation,without sliping,the coil not rotating.High transmitting torque,quick
response and no drag torque.They are widely used in packing machines,printing machines,textile machines etc.,to realize the
engaging and disengaging the driven and driving shaft while the latter is running.
|
Contents Specification |
DLD1 -0.6 |
DLD1- 1.2 |
DLD1 -2.5 |
DLD1 -5 |
DLD1 -10 |
DLD1 -16 |
DLD1 -25 |
DLD1 -32 |
DLD1 -50 |
DLD1 -100 |
Rated Torque(N.m) |
6 |
12 |
25 |
50 |
100 |
160 |
250 |
320 |
500 |
1000 |
Rated Power(W) |
13 |
16 |
20 |
32 |
40 |
45 |
54 |
60 |
80 |
100 |
Rated Voltage(V dc) |
24 |
|||||||||
Engaging Time(≤ms) |
55 |
75 |
120 |
140 |
230 |
250 |
303 |
380 |
450 |
505 |
Disengaging Time(≤ms) |
15 |
25 |
35 |
45 |
60 |
90 |
170 |
200 |
260 |
330 |
Allowable Max Speed(rpm) |
3600 |
3600 |
3600 |
3600 |
2500 |
2500 |
2500 |
2000 |
2000 |
1500 |
|
Size
Part No. |
D1 |
D2 |
D3 |
D4 |
D5 |
d |
h |
b |
DLD1-0.6 |
80 |
72 |
35 |
50 |
68.5 |
15 |
17.3 |
5 |
DLD1-1.2 |
105 |
95 |
42 |
66 |
90 |
20 |
2.8 |
6 |
DLD1-2.5 |
130 |
110 |
52 |
80 |
112 |
25 |
28.3 |
8 |
DLD1-5 |
158 |
147.5 |
62 |
101 |
145 |
30 |
33.3 |
8 |
DLD1-10 |
190 |
175 |
80 |
120 |
169 |
35 |
38.3 |
10 |
DLD1-16 |
230 |
215 |
100 |
158 |
213 |
43 |
46.3 |
12 |
DLD1-25 |
270 |
258 |
110 |
182 |
245 |
50 |
53.8 |
14 |
DLD1-32 |
290 |
270 |
120 |
210 |
267 |
55 |
59.3 |
16 |
DLD1-50 |
310 |
290 |
130 |
220 |
286 |
60 |
64.4 |
18 |
DLD1-100 |
440 |
420 |
200 |
315 |
424 |
70 |
74.9 |
20 |
