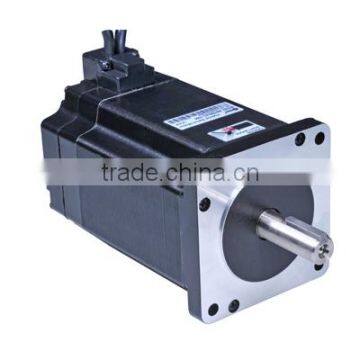

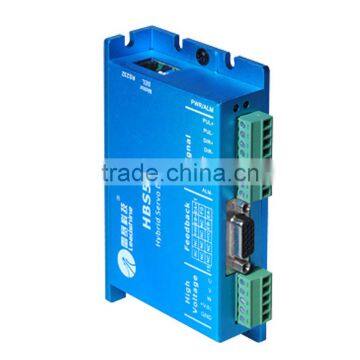

HBS57 and 573HBM20-1000 Leadshine hybrid servo motor driver for CNC router, Cutting machine, 3D printer.....
It can effectively replace 300W servo with a half cost of Panasonic servo.
It has faster response and better precision than stepper, and much easier to use than servo.
Highlights
- Stepper based servo control
- Direct 120 / 220 / 230 AC input, or DC to 100V
- Closed position loop to eliminate loss of synchronization
- No torque reservation
- Load based output current for extra low motor heating
- Smooth motor movement and low motor noise
- Quick response and no hunting
- No overshooting and almost zero settling time
- High starting torque, high inertial loads
- Capable of driving NEMA 23, 24, 34, and 42 easy servo motors (stepper motors with encoders)
- Plug-and-play, no tuning for most of applications
Features :
No Tuning, Nulls loss of Synchronization
Closed-loop, eliminates loss of synchronization
Broader operating range – higher torque and higher speed
Reduced motor heating and more efficient
Smooth motion and super-low motor noise
Do not need a high torque margin
No Tuning and always stable
Fast response, no delay and almost no settle time
High torque at starting and low speed, high stiffness at standstill
Lower cost
Descriptions :
The HBS series offers an alternative for applications requiring high performance and high reliability when the servo was the only choice,
while it remains cost-effective. The system includes a 2-phase stepper motor combined with a fully digital, high performance drive and
an internal encoder which is used to close the position, velocity and current loops in real time, just like servo systems. It combines the
best of servo and stepper motor technologies, and delivers unique capabilities and enhancements over both, while at a fraction of the cost
of a servo system.
Applications :
Its great feature of fast response and no hunting make it ideal for applications such as bonding and vision
systems in which rapid motions with a short distance are required and hunting would be a problem. And it is ideal for applications where
the equipment uses a belt-drive mechanism or otherwise has low rigidity and you don't want it to vibrate when stopping.
ES-D508=HBS57, ES-M32320= 573HBM20-1000.
