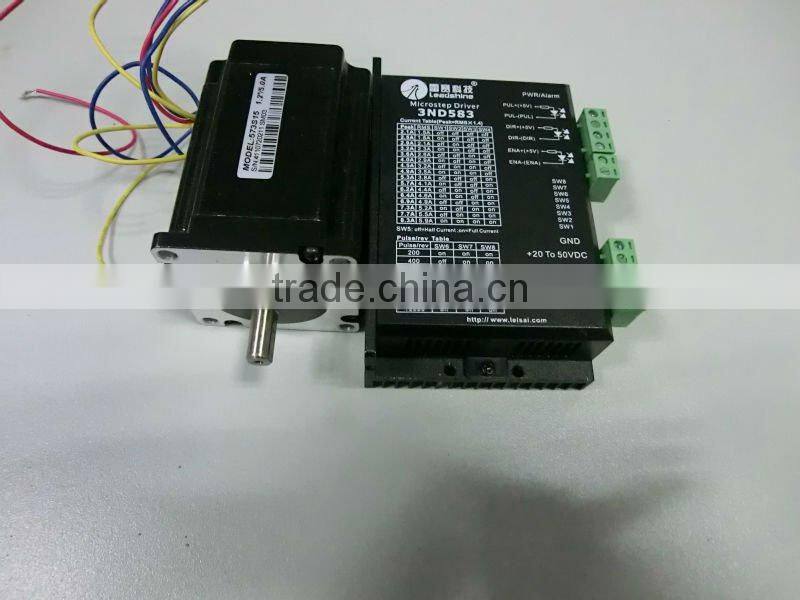

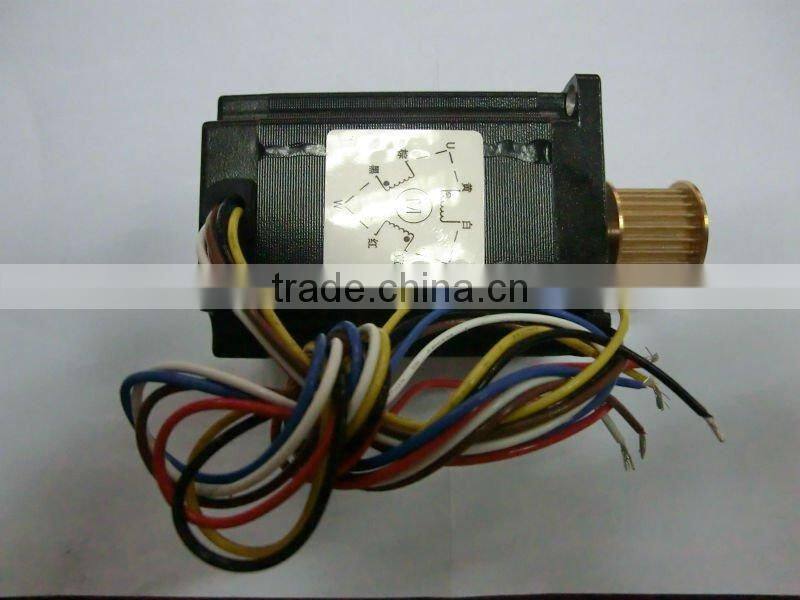

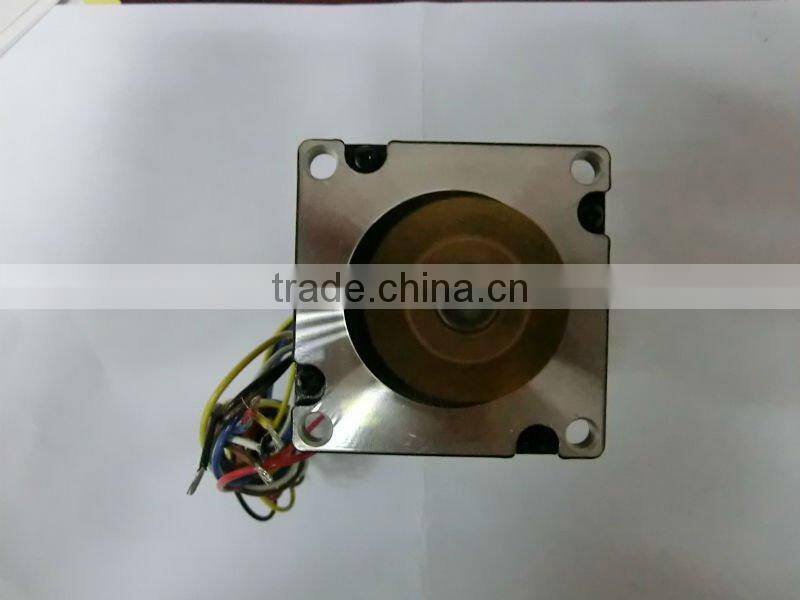

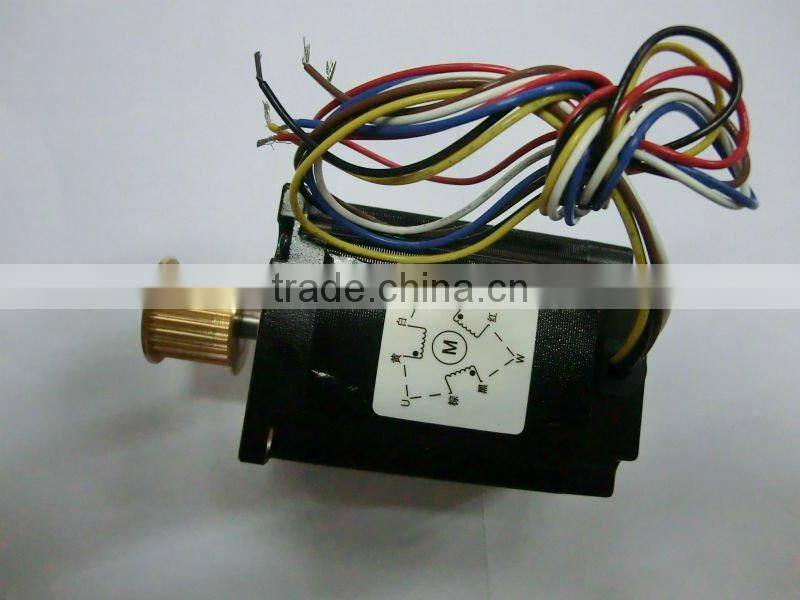

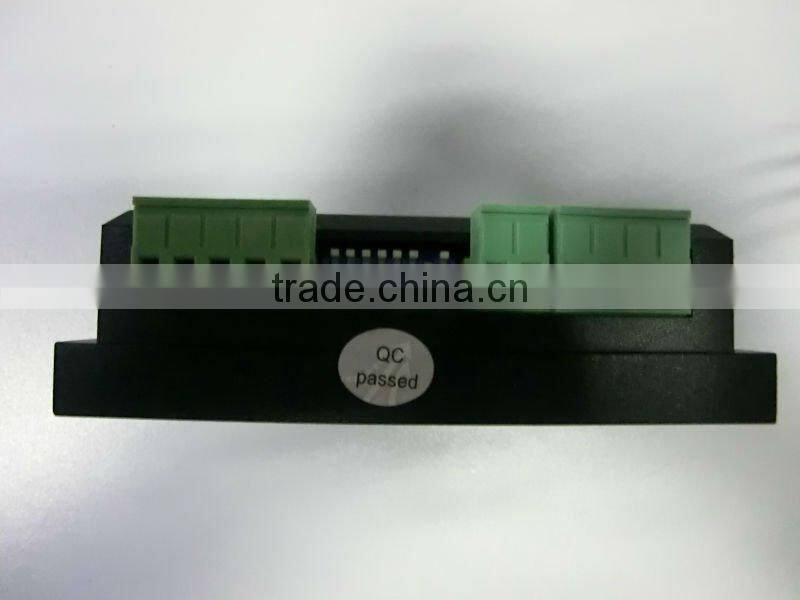

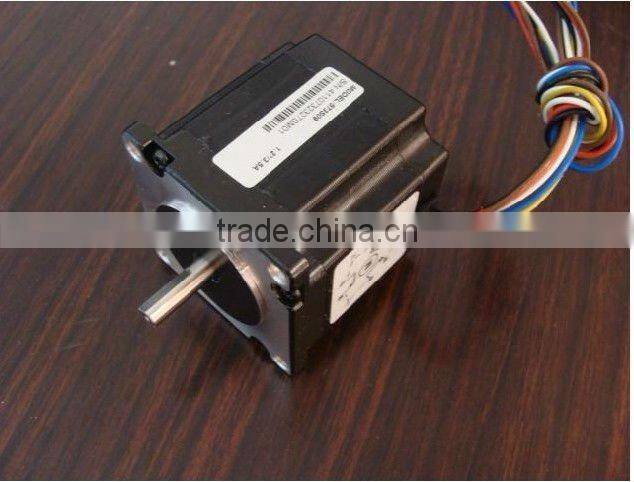

Leadshine Stepper Motor 573s15-L and Step Motor Driver 3ND583
US$ 120 - 150
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
szret
Model Number:
573s15-L
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Co2 Laser Parts Co2 Laser Step Motor 573s09 and Driver 3ND583US$ 115 - 120MOQ: 1 Set -
Stepper Motor Driver Price 57hs Series and ND556US$ 120 - 150MOQ: 1 Set
-
Nema Stepper Motor 57hs Series and ND556US$ 120 - 150MOQ: 1 Set
-
Leishine Stepper Motor Driver Price for Co2 Laser Engraving and Cutting MachineUS$ 120 - 150MOQ: 1 Set
-
Micro Stepper MotorUS$ 120 - 150MOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
szret
Model Number
573s15-L
Motor Type
Stepper Motor
Specifications

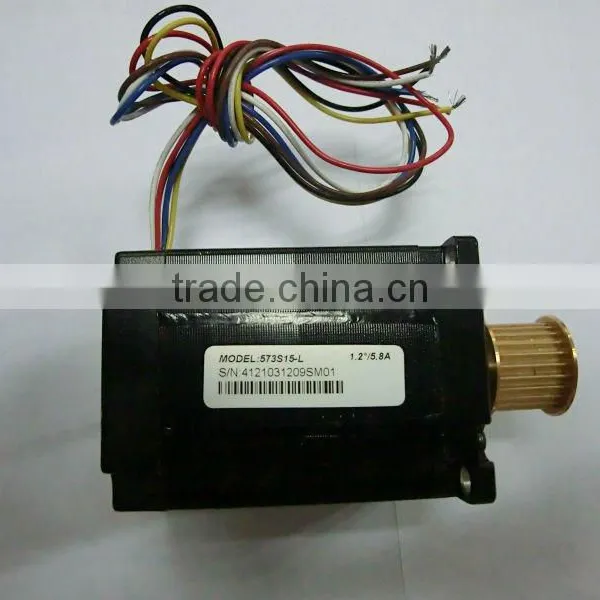

step motor 753s15-Land driver 3ND583

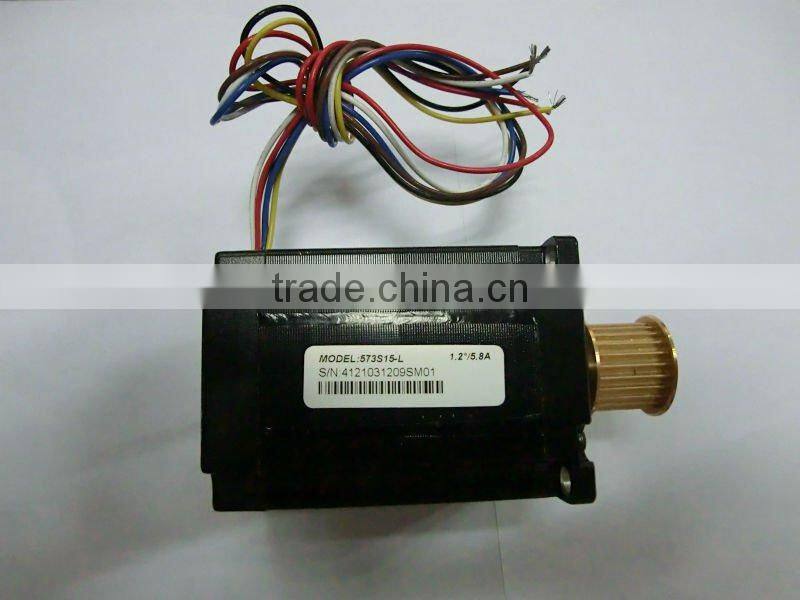

with motor gears and pulleys

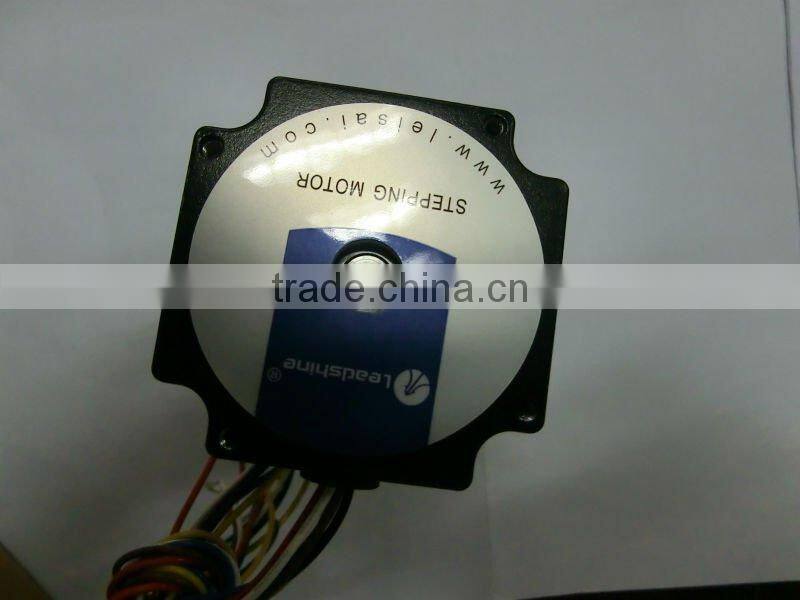

leadshine brand

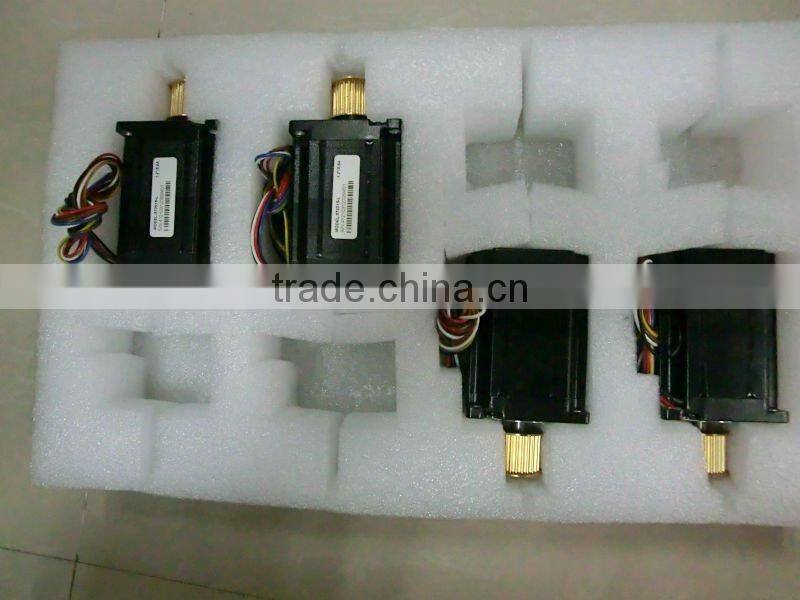

quick delivery have in stock
Technical Specifications
Model No. | phase | Step angle | Hold Torque | Rated current | Phase inductance | Phase resistance | Lead number | Rotor inertia | Positioning torque | Weight | Body length |
(°) | N.M | A | mH | Ohm | g.cm2 | Kg.cm | Kg | mm | |||
573S05 | 3 | 1.2 | 0.45 | 5.2 | 1.4 | 1.3 | 6 | 110 | 0.21 | 0.4 | 42 |
573S09 | 3 | 1.2 | 0.9 | 3.5 | 1.7 | 0.8 | 6 | 300 | 0.4 | 0.75 | 56 |
573S15 | 3 | 1.2 | 1.5 | 5.2 | 1.35 | 0.9 | 6 | 480 | 0.68 | 1.1 | 79 |
instructions | unit | min | Typ | max |
Output Current | A | 2.1 | - | 8.3 |
Input supply voltage | VDC | 18 | 36 | 50 |
Control signal input current | mA | 7 | - | 16 |
Step pulse frequency | KHz | 0 | - | 400 |
Pulse low time | μs | 1.2 |
|
|
Insulation resistance | MΩ | 500 |
|
|
