Leadshine Stepper Motor 573S05 and Step Motor Driver 3nd583

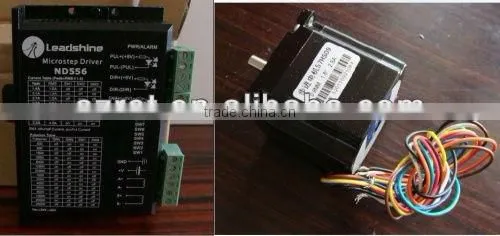

Leadshine Stepper Motor 573S05 and Step Motor Driver 3nd583 photo-1
US$ 100 - 120 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
szret
Model Number:
573s09 and 3nd583
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name szret
Model Number 573s09 and 3nd583
Motor Type Stepper Motor

Specifications

1.leadshine Motor 573s09
2.driver 3nd583 3phase 0.9nm
3.Ultra low noise
4.High ratio of performance to price
5.Low fever



<Leadshine stepper motor 573S05 and step motor driver 3nd583>





Technical Specifications

Model No.

phase

Step angle

Hold Torque

Rated current

Phase inductance

Phase resistance

Lead number

Rotor inertia

Positioning torque

Weight

Body length

(°)

N.M

A

mH

Ohm

g.cm2

Kg.cm

Kg

mm

573S05

3

1.2

0.45

5.2

1.4

1.3

6

110

0.21

0.4

42

573S09

3

1.2

0.9

3.5

1.7

0.8

6

300

0.4

0.75

56

573S15

3

1.2

1.5

5.2

1.35

0.9

6

480

0.68

1.1

79



instructions

unit

min

Typ

max

Output Current

A

2.1

-

8.3

Input supply voltage

VDC

18

36

50

Control signal input current

mA

7

-

16

Step pulse frequency

KHz

0

-

400

Pulse low time

μs

1.2





Insulation resistance

500





 Leadshine stepper motor 573S05 and step motor driver 3nd583Leadshine stepper motor 573S05 and step motor driver 3nd583Leadshine stepper motor 573S05 and step motor driver 3nd583Leadshine stepper motor 573S05 and step motor driver 3nd583Leadshine stepper motor 573S05 and step motor driver 3nd583Leadshine stepper motor 573S05 and step motor driver 3nd583

 Leadshine stepper motor 573S05 and step motor driver 3nd583Leadshine stepper motor 573S05 and step motor driver 3nd583Leadshine stepper motor 573S05 and step motor driver 3nd583Leadshine stepper motor 573S05 and step motor driver 3nd583

Leadshine stepper motor 573S05 and step motor driver 3nd583
