Home > Electrical & Electronics > Variable-Frequency Drive > Cost-effective 3 Phase Laser Stepper Driver 3nd583

Cost-effective 3 Phase Laser Stepper Driver 3nd583

Name: Cost-effective 3 Phase Laser Stepper Driver 3nd583
Brand: Leadshine
SKU: 143301904
Availability: InStock

Shenzhen Reliable Electromechanical Technology Co., Ltd.

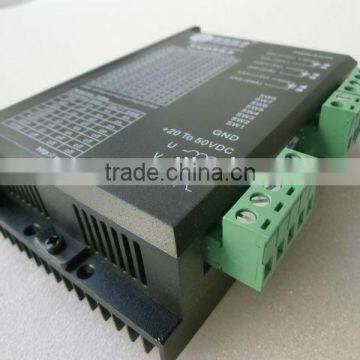

Cost-effective 3 Phase Laser Stepper Driver 3nd583 thumbnail-1

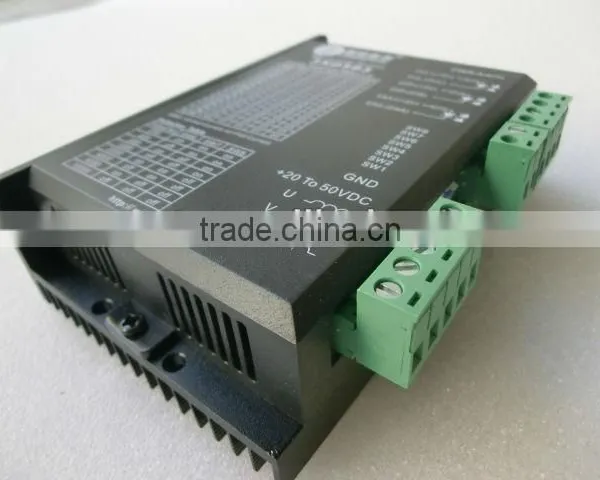

Cost-effective 3 Phase Laser Stepper Driver 3nd583 photo-1

US$ 60 - 70 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Leadshine

Model Number:

3ND583

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai shenzhen ningbo qingdao guangzhou and so on

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Leadshine

Model Number 3ND583

Motor Type Other, driver

Specifications

Cost-effective 3 phase laser stepper driver 3nd583
high quality
ultra-low noise
heating low
leadshine brand

< Cost-effective 3 phase laser stepper driver 3nd583 >

1.Product Features

3ND583

1).Cost-effective, ultra-low noise

2).Motor and drive heating are lower

3).Supply voltage up to 50VDC

4).Peak output current up to 8.3A (mean 5.9A)

5).The input signal is TTL compatible, stationary current is automatically reduced by half

6).Can drive the 3,6 line three-phase stepper motor

7).Optically isolated differential signal input impulse response frequency

up to 400KHz (higher optional)

8).Up to eight kinds of sub-optional

2.The main application areas:

Suitable for a variety of small and medium-sized automation equipment and instruments, such as: engraving machine, marking machine, cutting machine, laser phototypesetting, plotters, CNC machine tools, automatic assembly equipment and so on. Users expect a small noise, high-precision, high-speed equipment excellent special effects.

3.Electrical Specifications

instructions	unit	min	Typ	max
Output Current	A	2.1	-	8.3
Input supply voltage	VDC	18	36	50
Control signal input current	mA	7	-	16
Step pulse frequency	KHz	0	-	400
Pulse low time	μs	1.2
Insulation resistance	MΩ	500

4.Operating current setting:

Output Current - Peak	Output rms current	SW1	SW2	SW3	SW4
2.1 A	1.5A	off	off	off	off
2.5 A	1.8A	on	off	off	off
2.9 A	2.1A	off	on	off	off
3.2 A	2.3A	on	on	off	off
3.6 A	2.6A	off	off	on	off
4.0 A	2.9A	on	off	on	off
4.5 A	3.2A	off	on	on	off
4.9 A	3.5A	on	on	on	off
5.3 A	3.8A	off	off	off	on
5.7 A	4.1A	on	off	off	on
6.2 A	4.4A	off	on	off	on
6.4 A	4.6A	on	on	off	on
6.9 A	4.9A	off	off	on	on
7.3 A	5.2A	on	off	on	on
7.7 A	5.5A	off	on	on	on
8.3 A	5.9A	on	on	on	on
