Leishine Steper Motor and Driver 573S15 and 3ND583 For Laser Engraving and Cuting

Leishine Steper Motor and Driver 573S15 and 3ND583 For Laser Engraving and Cuting photo-1

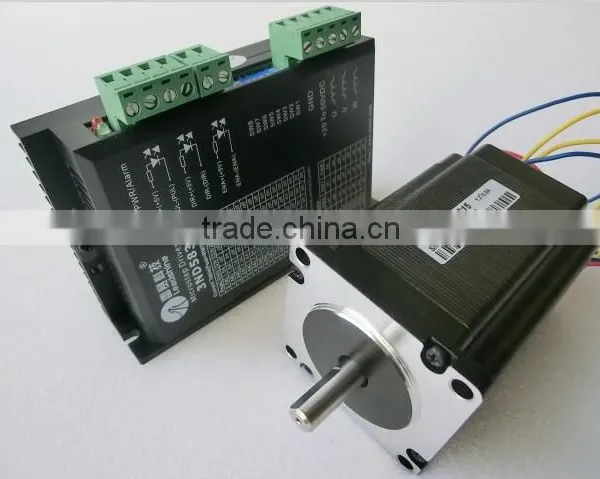

Leishine Steper Motor and Driver 573S15 and 3ND583 For Laser Engraving and Cuting photo-2

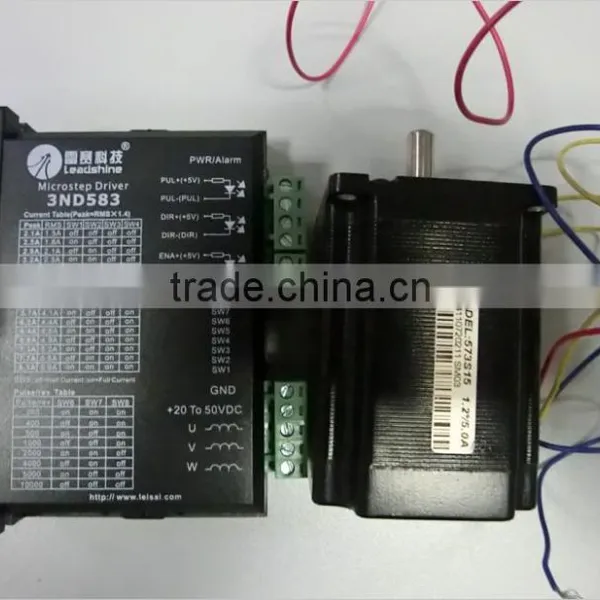

Leishine Steper Motor and Driver 573S15 and 3ND583 For Laser Engraving and Cuting photo-3

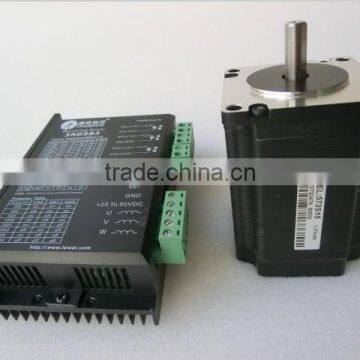

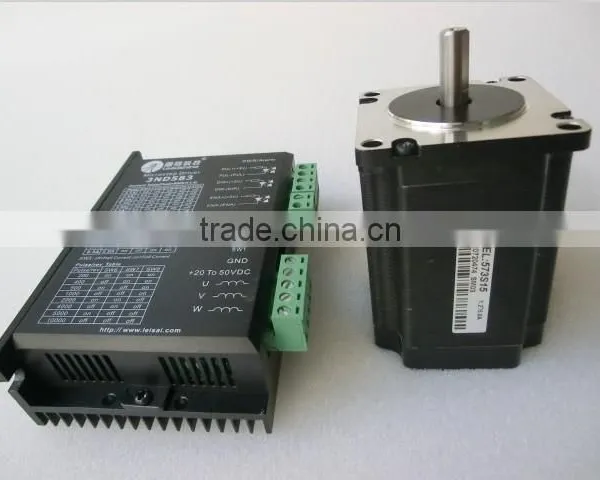

Leishine Steper Motor and Driver 573S15 and 3ND583 For Laser Engraving and Cuting photo-4

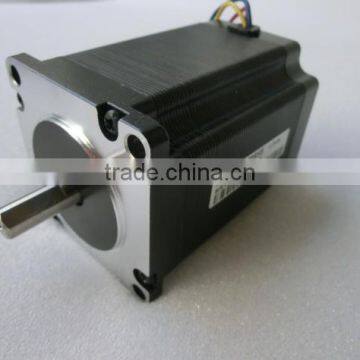

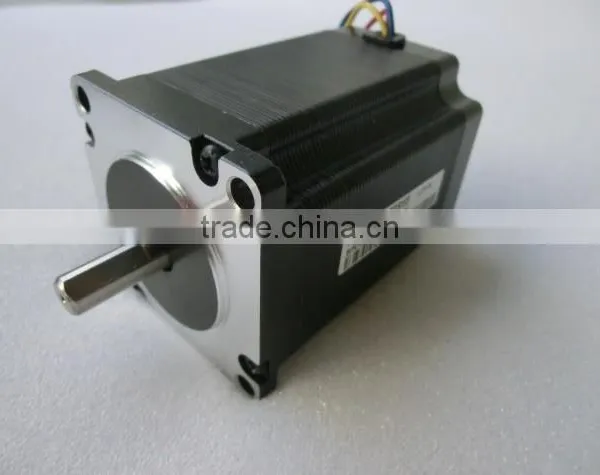

Leishine Steper Motor and Driver 573S15 and 3ND583 For Laser Engraving and Cuting photo-5

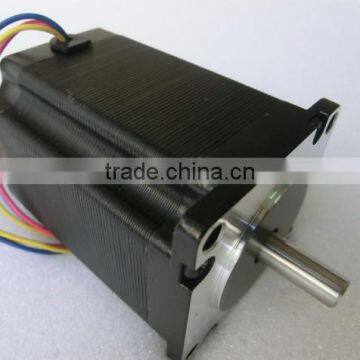

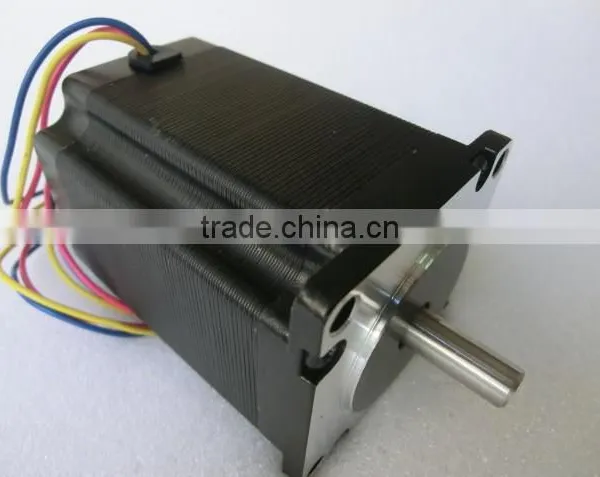

Leishine Steper Motor and Driver 573S15 and 3ND583 For Laser Engraving and Cuting photo-6
US$ 90 - 90 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
LEISHINE
Model Number:
573s15 and 3ND583
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN GUANGZHOU
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name LEISHINE
Model Number 573s15 and 3ND583
Phase 3
Type Other, stepper motor and driver
Certification CE
Step Angle(degrees) 1.2
Holding Torque 1.5n.m
Current / Phase 5.2A
Product Description



Common specifications

Step accuracy

+5%

Temperature rise

80°CMax

Ambient temperature

-10°C -- +50°C

Insulation resistance

100MΩmin.500VDC

Withstand

500VAC for one minute

Runout

0.06 Max.(450g-load)

Axial runout

0.08 max.(450g-load)



Technical Specifications

Model No.

phase

Step angle

Hold Torque

Rated current

Phase inductance

Phase resistance

Lead number

Rotor inertia

Positioning torque

Weight

Body length

(°)

N.M

A

mH

Ohm

g.cm2

Kg.cm

Kg

mm

573S05

3

1.2

0.45

5.2

1.4

1.3

6

110

0.21

0.4

42

573S09

3

1.2

0.9

3.5

1.7

0.8

6

300

0.4

0.75

56

573S15

3

1.2

1.5

5.2

1.35

0.9

6

480

0.68

1.1

79





3ND583

 Electrical Specifications



instructions

unit

min

Typ

max

Output Current

A

2.1

-

8.3

Input supply voltage

VDC

18

36

50

Control signal input current

mA

7

-

16

Step pulse frequency

KHz

0

-

400

Pulse low time

μs

1.2





Insulation resistance

500

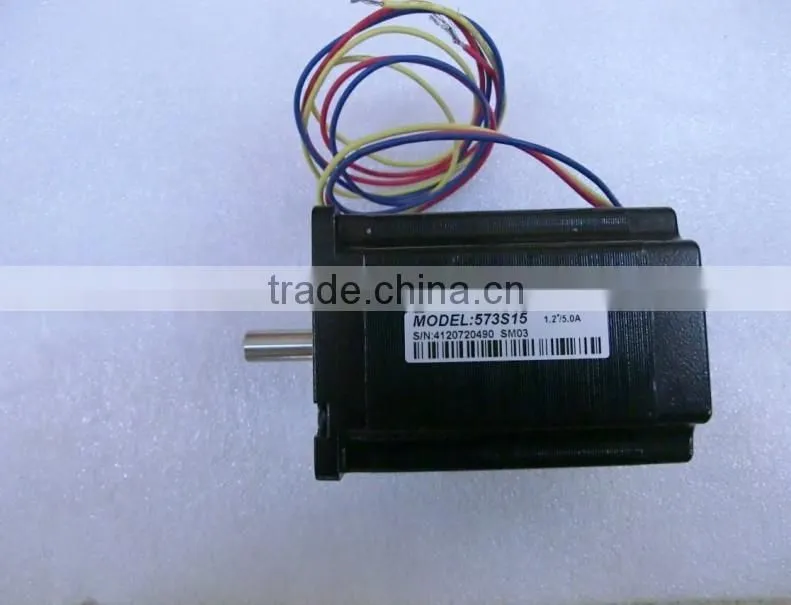

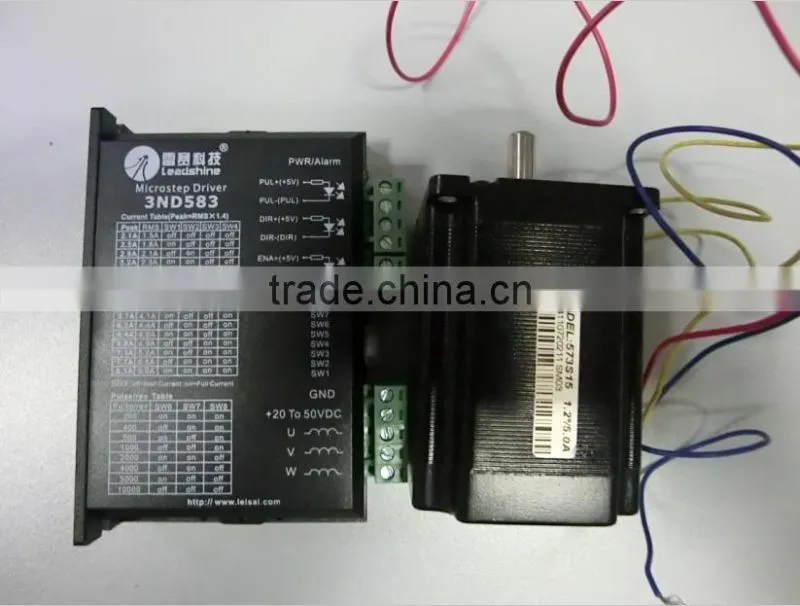

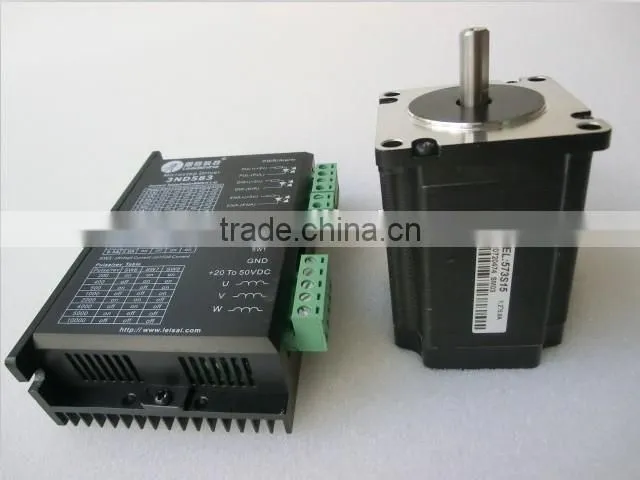

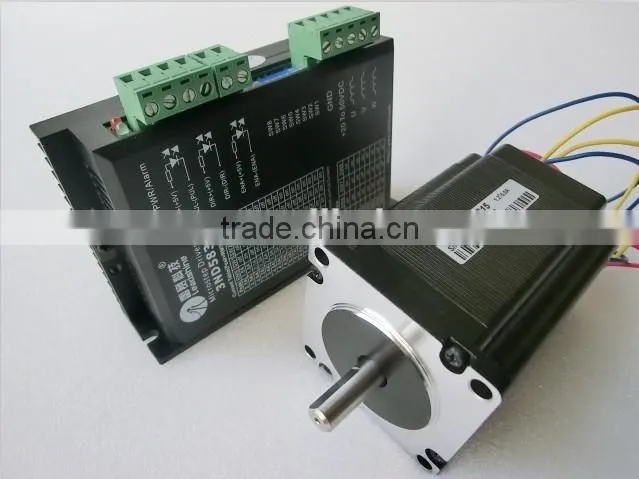

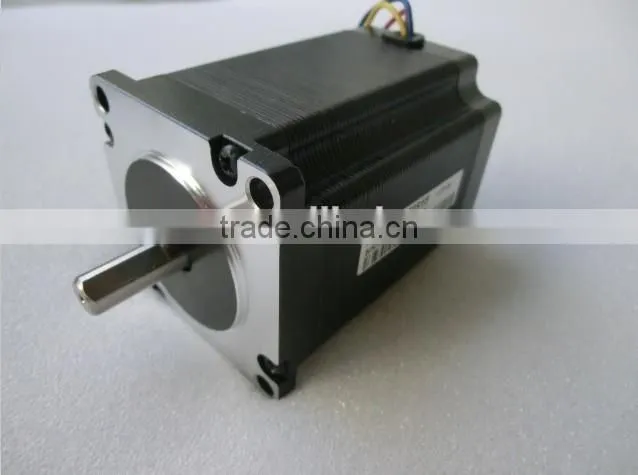

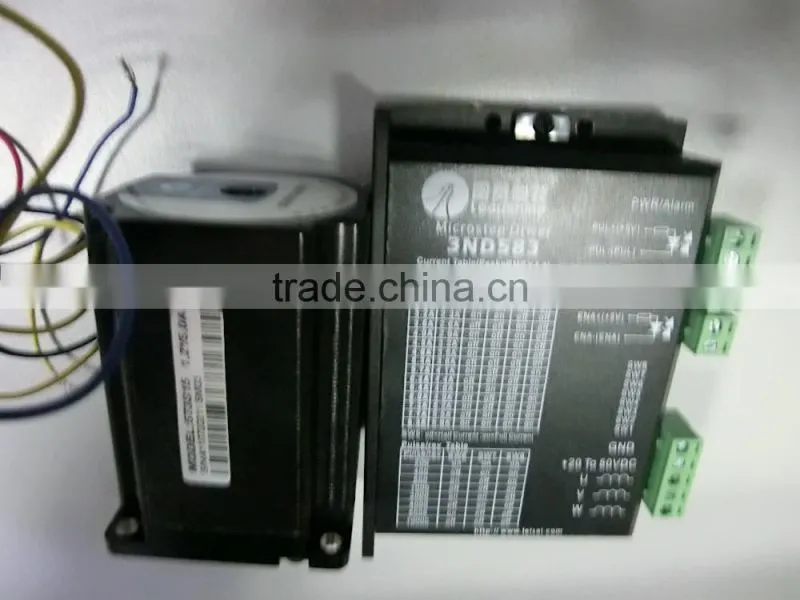

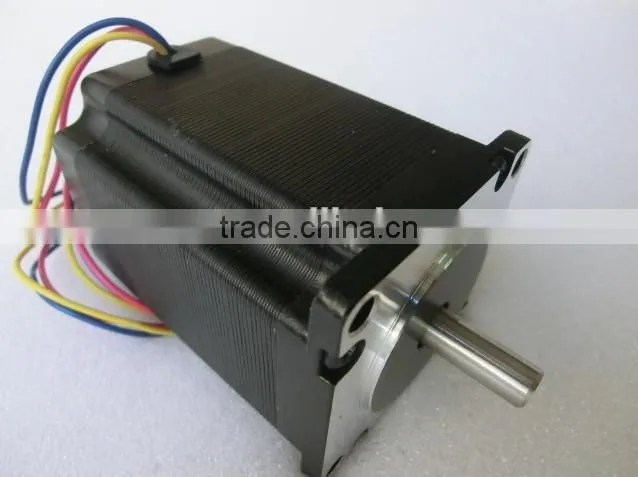

 leishine steper motor and driver 573S15 and 3ND583 For laser engraving and cutingleishine steper motor and driver 573S15 and 3ND583 For laser engraving and cutingleishine steper motor and driver 573S15 and 3ND583 For laser engraving and cutingleishine steper motor and driver 573S15 and 3ND583 For laser engraving and cutingleishine steper motor and driver 573S15 and 3ND583 For laser engraving and cutingleishine steper motor and driver 573S15 and 3ND583 For laser engraving and cutingleishine steper motor and driver 573S15 and 3ND583 For laser engraving and cuting
