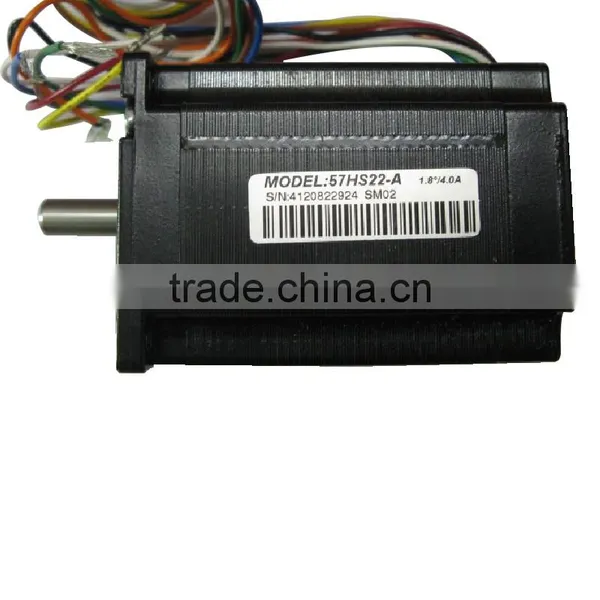

Leadshine 57HS22-A 2-phase Hybrid Step Stepper Motor 81mm Long 1.8 Step Angle 2.2NM

Features
2 phase 1.8° stepping angle
NEMA 23
Holding toque of 2.2 N*m (312 oz-in)
High precision
Smooth movement
Low motor heating
Low movement noise

The 57HS22 two-phase stepper motor is suitable for a wide range of motion control applications. Terminated with 8 motor leads, the motor can be connected in a few different ways, including bipolar series , bipolar parallel and unipolar.

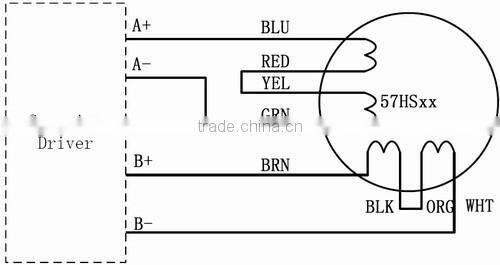

(a) 57HS22 series connection (8 leads)

(b) 57HS22 parallel connection (8 leads)

(c) 57HS22 unipolar connection (8 leads)
