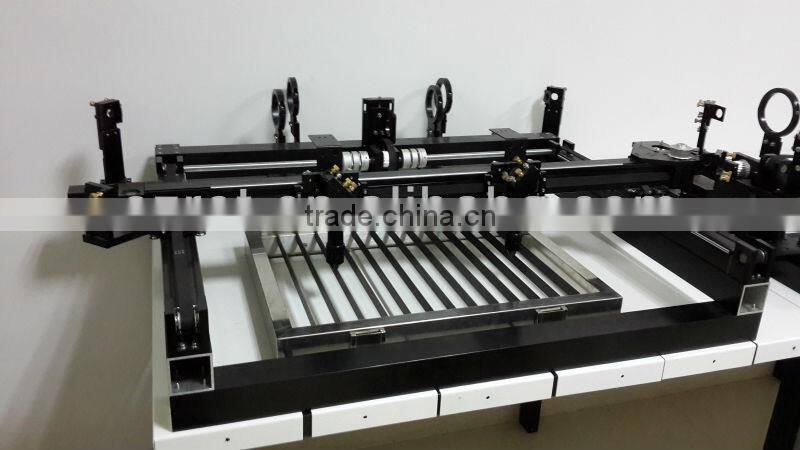

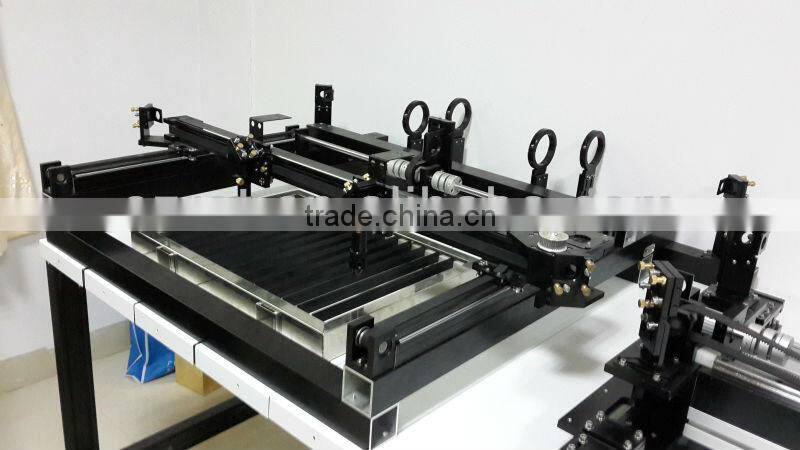

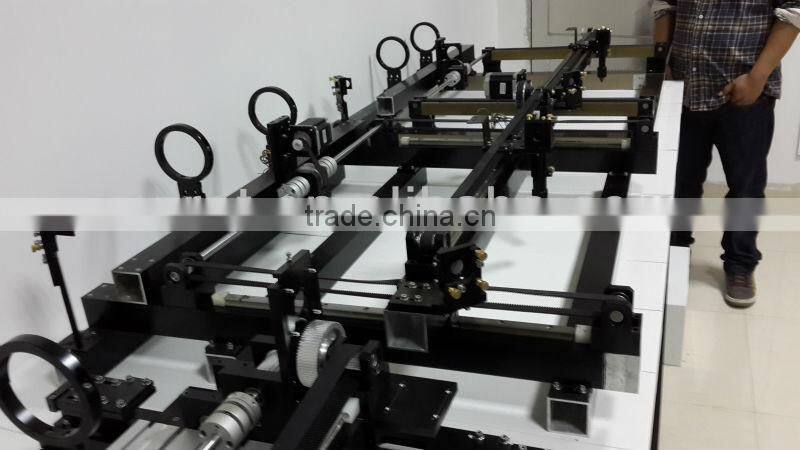

1390 1300*900mm 52" x 36" XY Stages Complete Kit Laser Table Bed Plotting for DIY CO2 Laser Engraver Cutter
US$ 760 - 860
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SZRET
Model Number:
6040
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen dongguan guangzhou shanghai qingdao ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
9060 900*600mm 36" x 24" XY Stages Complete Kit Laser Table Bed Plotting for DIY CO2 Laser Engraver CutterUS$ 700 - 800MOQ: 1 Set -
6040 600*400mm 24" x 16" XY Stages Complete Kit Laser Table Bed Plotting for DIY CO2 Laser Engraver CUTTERUS$ 660 - 760MOQ: 1 Set
-
Giant XY Stage Complete Kit for DIY CO2 Laser Engraving and Cutting Machine 1318 1325 1525 1520 1825 2030US$ 550 - 3,000MOQ: 1 Set
-
Taiwan PMI MSB15E MSB20E MSB25E Square Rail Linear Guide Block SliderUS$ 25 - 40MOQ: 1 Piece
-
Taiwan PMI MSB15S MSB20S MSB25S Square Rail Linear Guide Block SliderUS$ 25 - 40MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
SZRET
Model Number
6040
outside slider whole set parts
with motor, driver, belt, lens, mirrors
double head add 100usd
size can be ordered

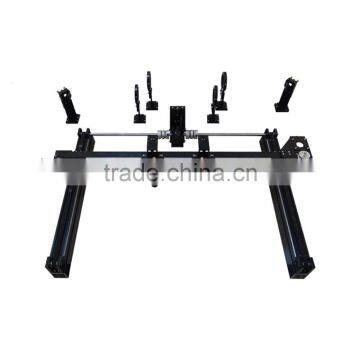

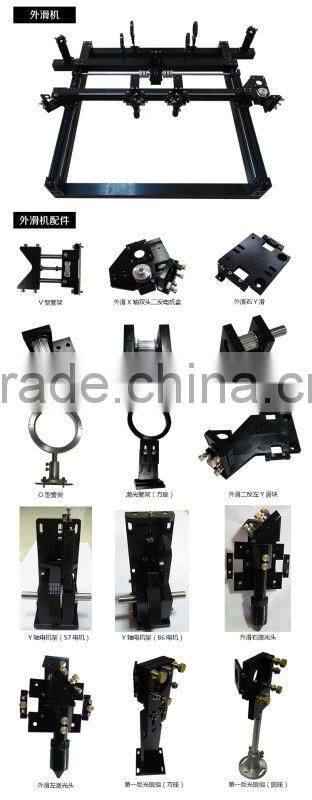

Kit major parts summary :
- 5x 2" anodized aluminum base bars
- 1x "X" slider & 2x "Y" slider
- 2:1 reduction gear box for X & Y
- 2x Nema 23 high torque 5.2A 3-phase stepping motor
- 1x laser head for 25mm mirror and 20mm lens
- 2x mirror mounts for 25mm mirror
- 2x tube mounts
- 2x limit switches
- 4x 3-band axial coupling
- 1x "X" slider track
- 2x "Y" slider track
- 2x stainless steel Y axial
Specification
-Working area: 1300mm x 900mm (52" x 36")
-Condition: New
-Speed: X: 900mm/s, Y: 500mm/s (with driver set to 1/32)
Specification
X motor:
- Brand: Leadshine 573S15 3-phase
- Step angle: 1.2 degree
- Torque: 188oz-in
- Current: 5.2A
- Resistance: 0.9ohm
- Inductance: 1.35mH
- Detente torque: 700g
- No. Wire: 3
- Weight: 1.1Kg (2.4lb)
- Length: 79m
Y motor
- Brand: Leadshine 573S15 3-phase
- Step angle: 1.2 degree
- Torque: 188oz-in
- Current: 5.2A
- Resistance: 0.9ohm
- Inductance: 1.35mH
- Detente torque: 700g
- No. Wire: 3
- Weight: 1.1Kg (2.4lb)
- Length: 79mm
