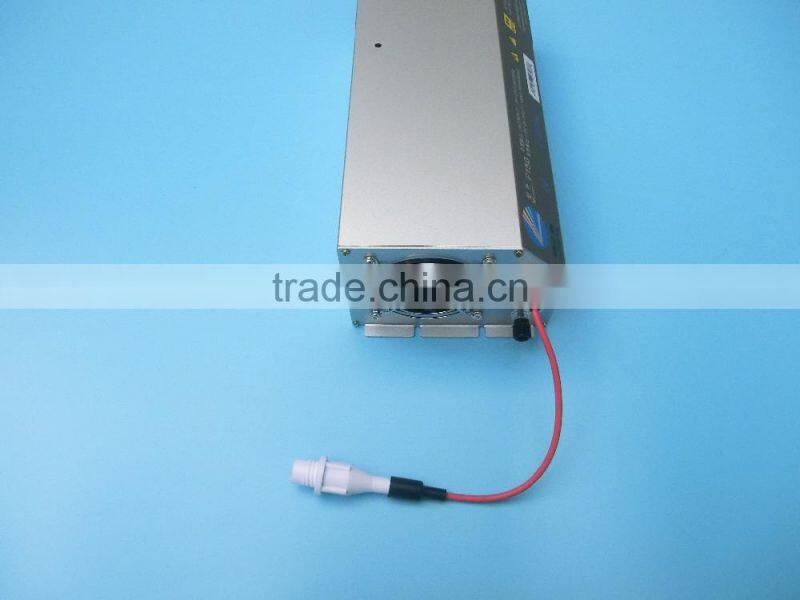

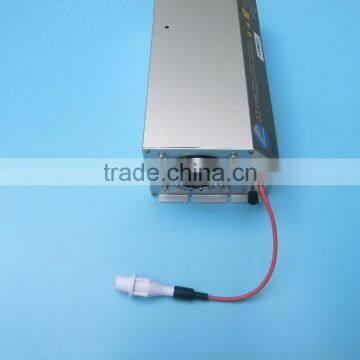

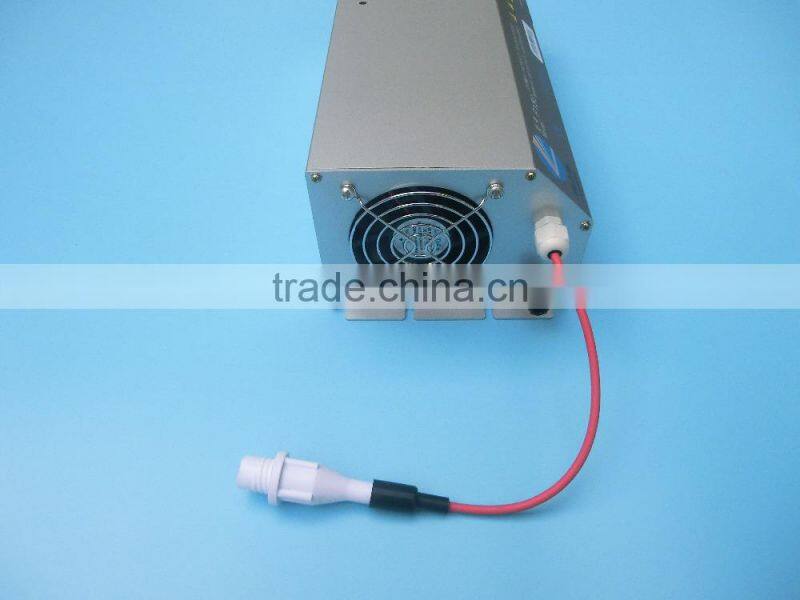

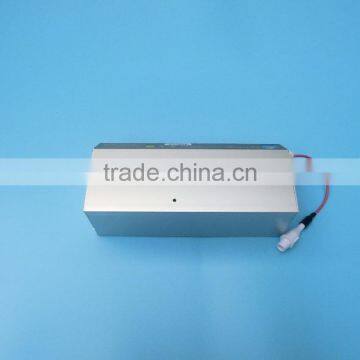

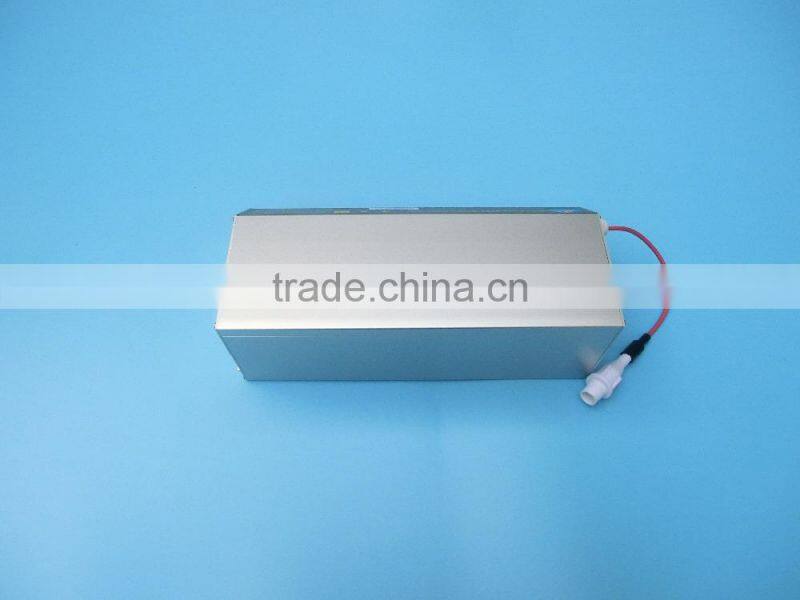

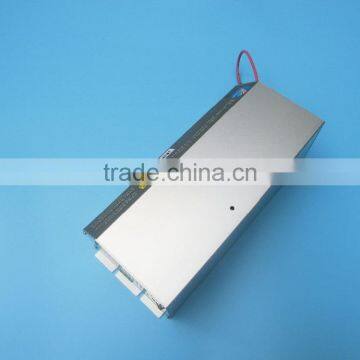

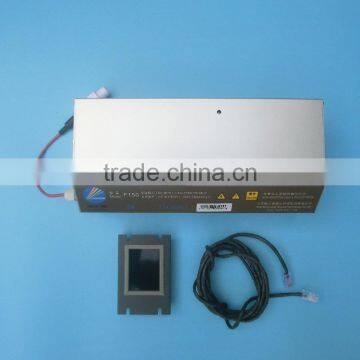

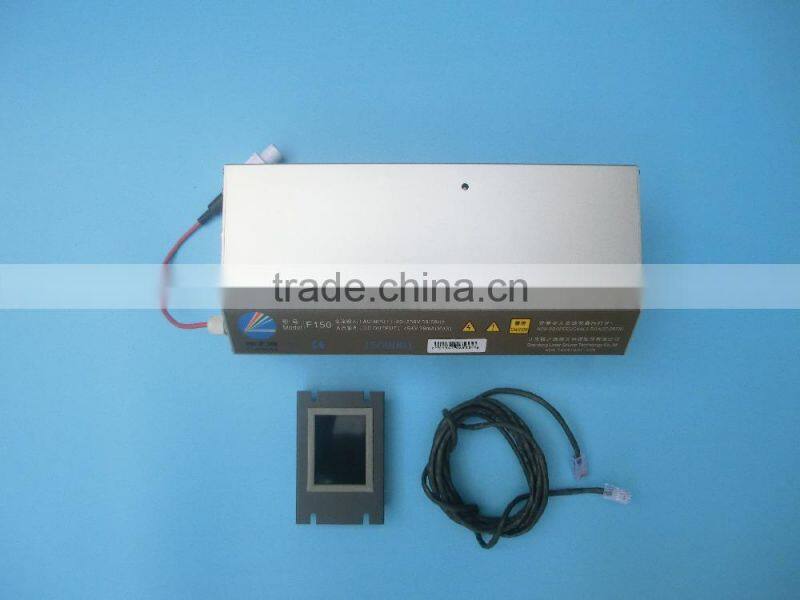

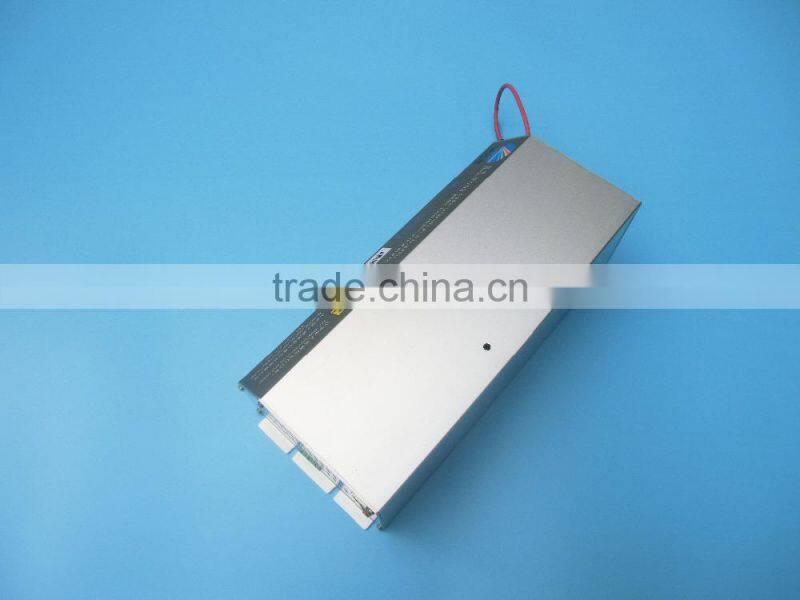

F150 LCD Intelligent Laser Power Supply
Model: HY-F150 for 130w,150w Laser Cutting and Engraving Machine
Intelligent laser power supply 150w F150 Main Feature
1. PFC wide voltage AC90V-AC250V input, global universal.
2. Open circuit protection function, if the output high voltage side open circuit or not connected well,
the power supply will automatically cut off the high voltage.

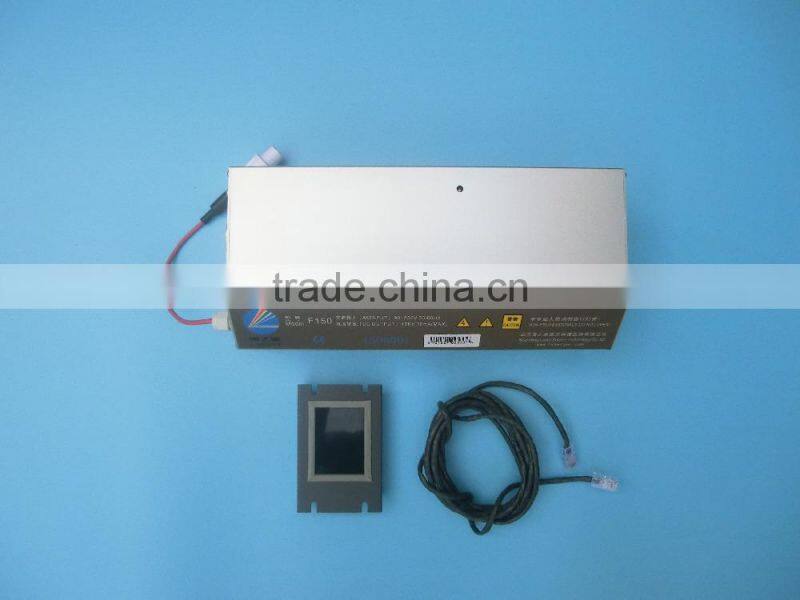

3. The power supply connected to the LCD screen through the reticle conveniently,
the user can choose LCD screen position freely according to the style of machine, monitor power
supply working condition conveniently and timely.
4. If the power supply working unusual, the LCD screen can display various fault information,
such as water protection, the board signal, open circuit and so on and so on, will avoid blind search,
making easy for users to process faults in time according to the screen information, save time, improve
work efficiency.
5. Build in high voltage discharge function, there will no residual voltage when discount the power supply,
avoid electric shock danger.
6. LCD screen can show two sets power supply working condition, matching double head laser machine.
7. Main case with special design, have more strong, beautiful appearance, better heat dissipation.
8. Improvement of the current control mode, the light is more stable and better compatibility,
match with each type of laser tube better.
9. Application: Laser cutting and engraving sculpture,acrylic,fabric,double color sheet,rubeer,ect.
F150 LCD Intelligent Laser Power Supply Specification
|
Input |
Input Voltage |
AC90V or AC250V |
|
AC frequency |
47—440HZ |
||
Max Input Power |
750W |
|
|
Max Output Current AC110/AC220 |
9.5A/4A |
|
|
Output |
Max Output Voltage |
DC 55KV |
|
Max Output Current |
DC 38mA |
||
Efficiency |
≥90percent full load |
||
Mean Time Between Failure (MTBF) |
≥10000H |
||
Response Speed |
≤1ms from the switch Signal is given to the output current up to 90% of the setting current |
||
Control Interface |
TTL level switch control; high or low effective level can be chosen details refer to the control terminal specification |
||
Pressure-proof |
Input-Output, Input-Shell: AC1500V 10MA 60S; Output negative is connected with machine shell. |
||
Protection |
can work in open-circuit condition for a short timeRequire a good protective earthing and avoid arc between the positive and the machine shell |
||
Environmental |
Operating Temperature -10~40degree centigrade Relative Humidity (RH) ≤90 percent |
||
Cooling Way |
Force-Air Cooling (FAC) |
||
Dimension |
L×W×H=330*144*104(mm) |
||

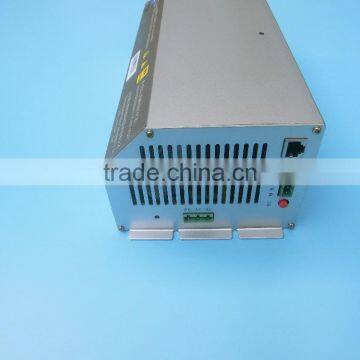

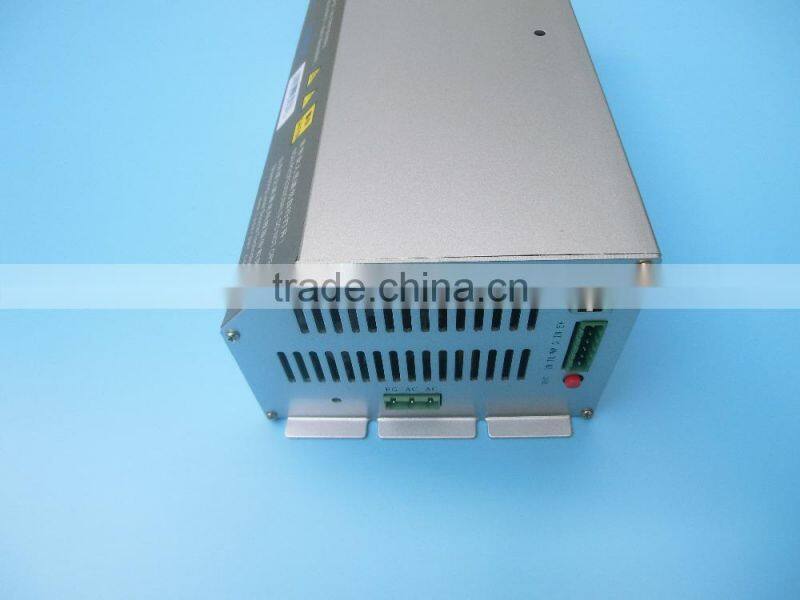

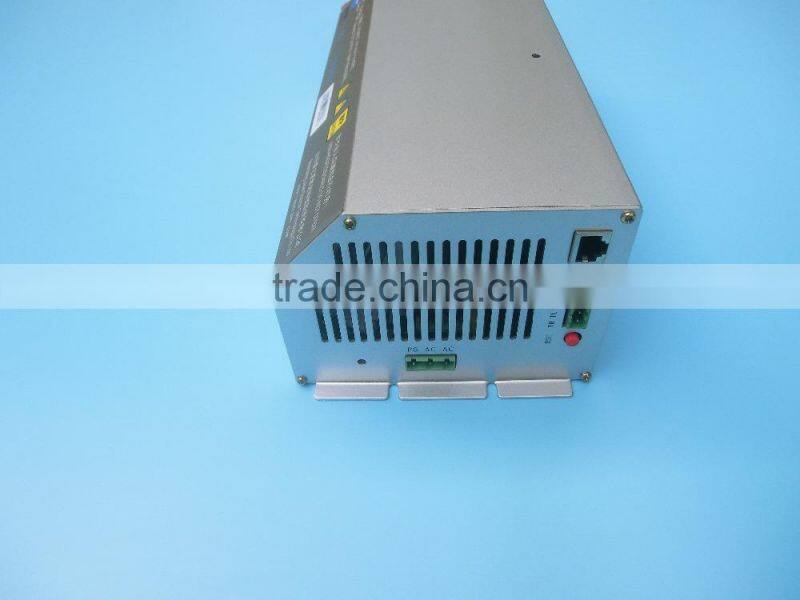

150w Laser Power Supply Terminal definition as follow:
TH |
Input Signal |
The control of laser: TH≥3V, emitting laser; TL≤0.3V, no laser. |
TL |
Input Signal |
The control of laser: TH≥3V, no laser; TL≤0.3V, emitting laser. |
WP |
Input Signal |
The control of laser: TH≥3V, no laser; TL≤0.3V, emitting laser. |
G |
GND |
This foot must be connected well with the shell of laser machine and the ground of control board. |
IN |
Input Signal |
The control of laser power: Both 0-5V analog signal and PWM signal can control the laser power. |
5V |
Output Power |
Output 5V, the maximum output current is 20mA. |
Technical Support:
1. All our item is pass the ISO9001 and CE quality Certification.
2. We are the manufactory of the Co2 Laser Power Supply, and have strict quality control system, so that we can supply the best quality products with lowest prices for our client.
3. We have a professional technical support group for all the item selling. If you need any assistance on your item problem, please do not hesitate to contact us, our technical support will be there to assist you.
4. Manual testing: Make sure the power supply and laser tube wiring correct firstly, offline the control line and then press the red button TEST to test laser tube out light or not, this method can be simple judgment power supply is working correctly.
Warranty:
One year.
If the Laser Power Supply appeared problem during this period, we can send Free Pars for your repairing.
