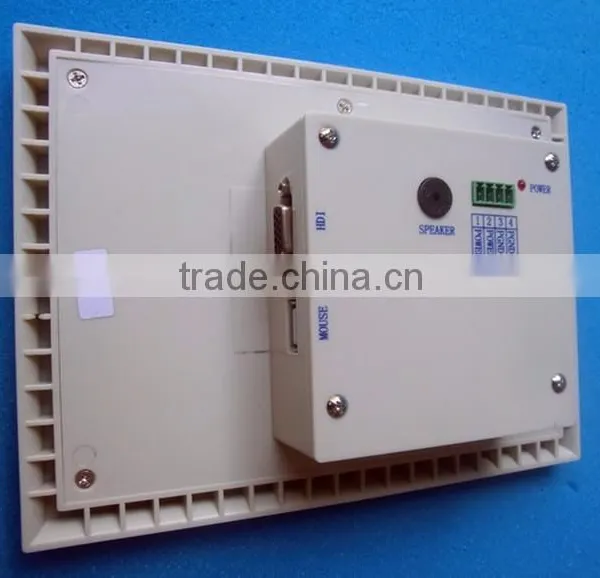

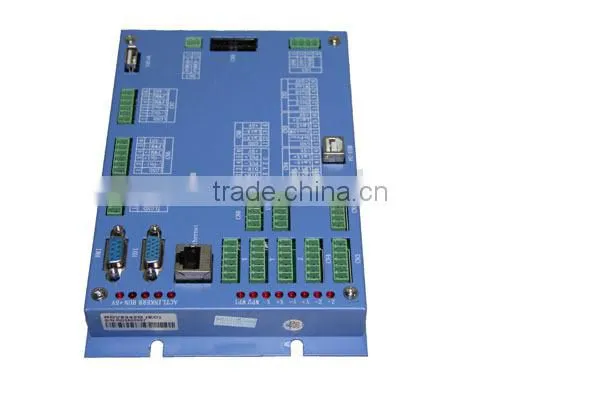

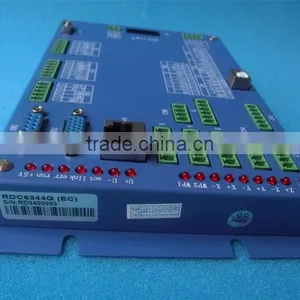

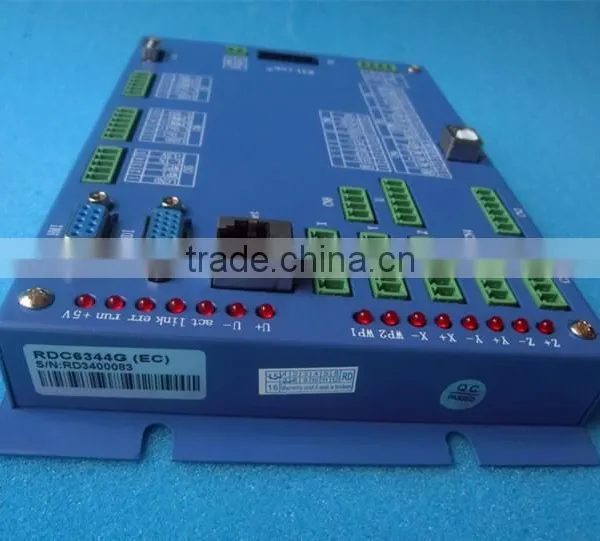

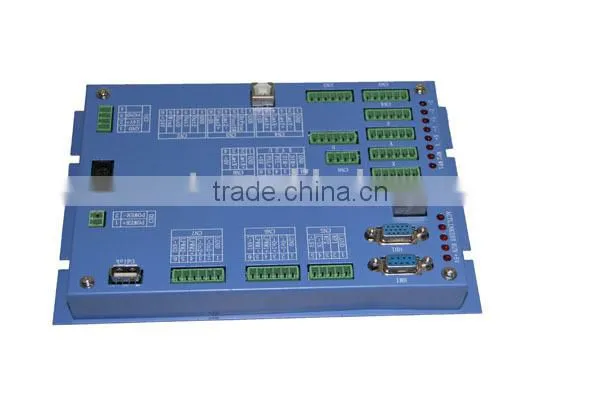

RDC6344G 4axis 7inch Touch Screen Co2 Laser Controller for Co2 Laser Cutting Machine

RDC6344G 4axis 7inch Touch Screen Co2 Laser Controller for Co2 Laser Cutting Machine thumbnail-1
RDC6344G 4axis 7inch Touch Screen Co2 Laser Controller for Co2 Laser Cutting Machine thumbnail-2
RDC6344G 4axis 7inch Touch Screen Co2 Laser Controller for Co2 Laser Cutting Machine thumbnail-3
RDC6344G 4axis 7inch Touch Screen Co2 Laser Controller for Co2 Laser Cutting Machine thumbnail-4
RDC6344G 4axis 7inch Touch Screen Co2 Laser Controller for Co2 Laser Cutting Machine thumbnail-5
RDC6344G 4axis 7inch Touch Screen Co2 Laser Controller for Co2 Laser Cutting Machine thumbnail-6
RDC6344G 4axis 7inch Touch Screen Co2 Laser Controller for Co2 Laser Cutting Machine photo-1
RDC6344G 4axis 7inch Touch Screen Co2 Laser Controller for Co2 Laser Cutting Machine photo-2
RDC6344G 4axis 7inch Touch Screen Co2 Laser Controller for Co2 Laser Cutting Machine photo-3
RDC6344G 4axis 7inch Touch Screen Co2 Laser Controller for Co2 Laser Cutting Machine photo-4
RDC6344G 4axis 7inch Touch Screen Co2 Laser Controller for Co2 Laser Cutting Machine photo-5
RDC6344G 4axis 7inch Touch Screen Co2 Laser Controller for Co2 Laser Cutting Machine photo-6
US$ 500 - 550 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
RD
Model Number:
RDC6344G
Contact Supplier Request Quote Chat Now
Shenzhen Reliable Electromechanical Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen guangzhou shanghai jinan yiwu ningbo beijing
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name RD
Model Number RDC6344G

The RDC6344G system is the RuiDa technology the technical development the newest generation of laser carving/cutting control system, this control system has the better hardware stability, has a better anti-high-pressured, the anti-electrostatic disturbance characteristic.Has the friendlier operation contact surface based on the LINUX man-machine operating system and a more formidable function.This controller including the more perfect more outstanding movement control function, the large capacity file memory, the two-circuit independent adjustable digital/simulation laser power source control connection, the compatible stronger U plate driver, the multi-channel general/special-purpose IO control, the integrated special-purpose time system support hardware encryption algorithm, may choose and so on with the PC machine communication support ethernet communication and the USB communication.



Digital laser control signal

(1) Differential output, TTL level, 20mA Driving ability

(2) PWM frequency 2.5K ~ 100K for adjustable

(3) PWM duty ratio 1% ~ 99% for adjustable

Analog laser control signal 0 ~ 5V automatically tracing adjust

Motor control signal differential output, TTL level, 20mA driving ability

Motor control pulse frequency maximum 500KHZ

USB maximum transmission rate 12M, the longest distance is 5 meters;Internet cable max transmission rate 100M,the longest distance is 200M.

Line/arc/B spline interpolation accuracy +/- 0.5 pulse

4 –way general photoelectric isolation OC gate output, the maximum 600mA driving ability

4 –way General photoelectric isolated input , TTL level

Support double heads automatic typesetting and leftover material function;

Support feeding line by line;

True color 320*240TFT screen;

10/100M the Ethernet +USB2.0 communication pattern may elect;

Mainboard integrated time system, hardware encryption, with algorithm stable and reliable encryption characteristic;

Supports 3 axes (Z axis function can be for up and down platform or unidirectional/bidirectional feeding);

Can online or off-line modified power/speed etc parameter for each parameter in the panel

Can be directly modified manufacturers/user etc machine configuration parameters on the panel

Support update start up display, dynamic/static preview the processing graph;

Correct to millisecond work time preview;

Onboard parameter storage;

Can remote upgrade mainboard program;

Onboard 256M file memory;

Power-off restart for Engraving function;

Fast and super strong compatible of U disk copy function;

Double-way digital laser control interface;

Double-way analog laser control interface;

The memory can self-checking defective track, can format, fault tolerance is good

Ramp engraving function;

Multi-Anchor point Logics

Dedicated RF laser control interface;

Max 16 way general IO input and output;

Max 4 axis stepper/servo motor open loop control;

soft/hard limit coordinates protection for optional;

Support lines, arcs, and B-spline interpolation function;



RDC634XG

6: The controller sixth generation products

3: The controller version number

4: 4 axis card

X: Display type (1: TFT character screen; 2: 3. 5 inch TFT color screen; 3: 5. 7 inch color screen; 4: 7 inch touch screen.)

G: standard function
