500W big Power Co2 Auto Focus Metal laser cutting head using for cut 4mm thin metal sheet material and 25mm non-metal material,high precision and efficiency.

Including:

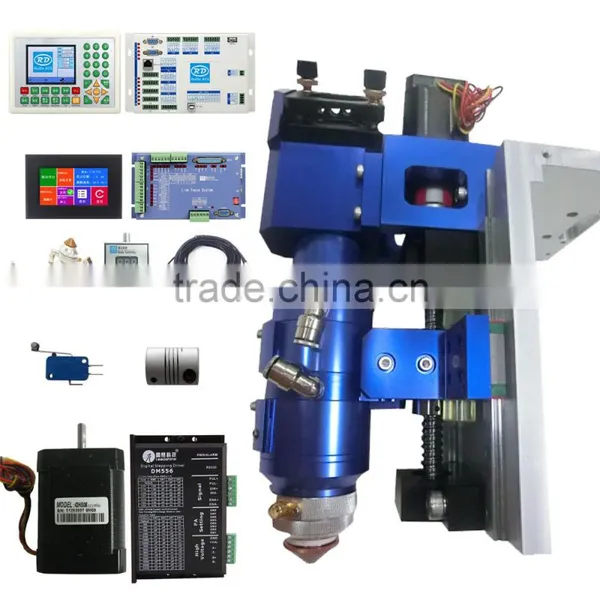

I. 1 PCS autofocus CO2 laser metal cutting head

II. 1 SET CO2 laser controller RDC6332M

III. 1 SET LFS-AM-T43 autofocus sensor system

IV. 1 SET 2 phase motor (42HS08) and driver (DM556)

V. 1 PCS 5*8mm shaft connector

VI. 1 PCS limit switch

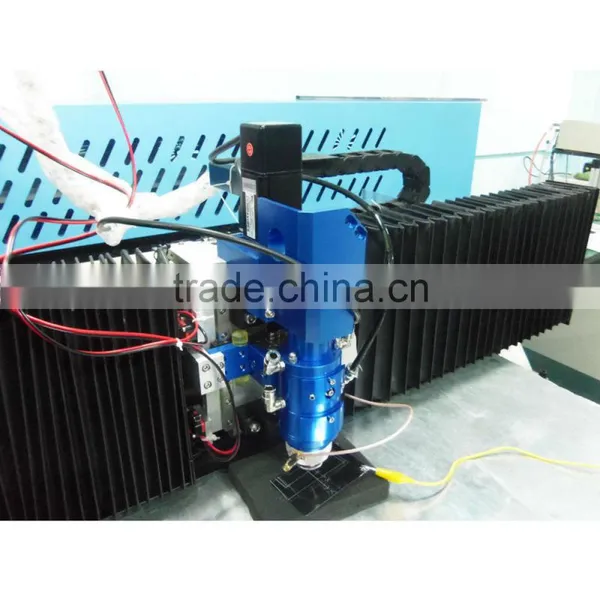

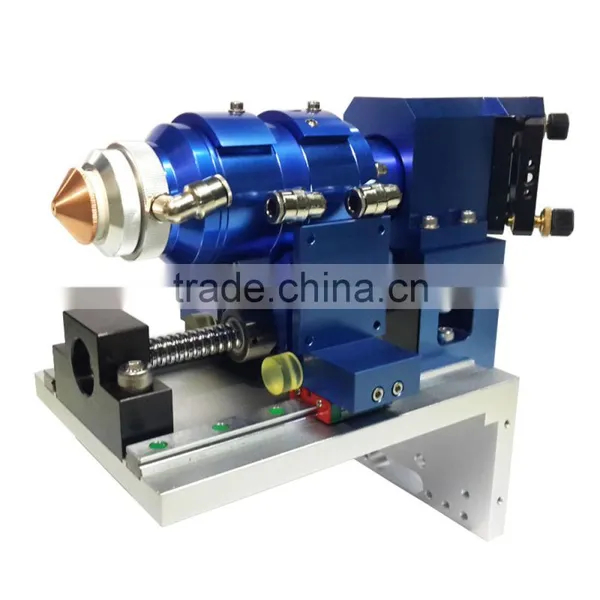

I Autofocus CO2 laser metal cutting head

1.Moving automatically up and down, left and right according to the cutting material size and thickness

2. Auto focus the lase focus length.

3. With cooling, protect the lase lens and mirros don’t heat over, and prolong the lifetime.

4. Available for assemble with oxygen gas assistance.

5.High precision, high quality, high efficacy, high convenience.

6.Using for large power cutting.

Specifications:

Maximum Power 500W or more but customized
Focal Length 2.54" and 4"
Horizontal Position of Adjustment Range +1mm/-1mm
Effective Aperture 25mm
Dimensions(mm) 300*130*130

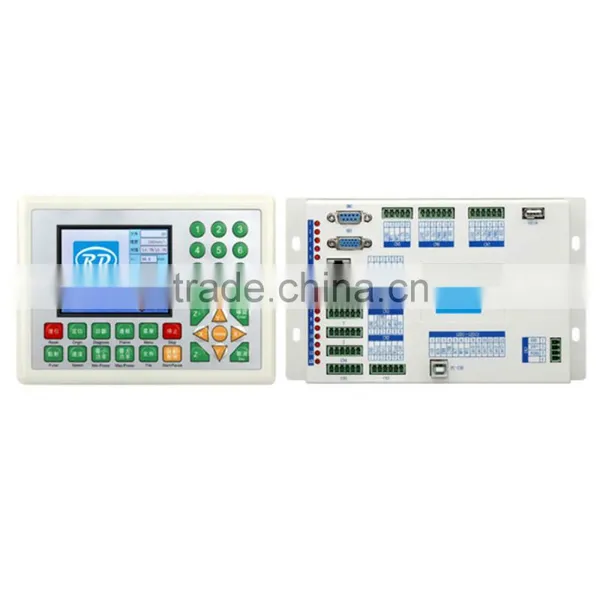

II.Metal and Non-metal Laser Cutting Controller ( RDC6332M)

Adaptive software:  MetalCut

Technical parameters:

  • Digital laser control signals, differential output, TTL level, up to 20mA driving capability

  • PWM frequency can be adjusted from 2.5KHz to 100KHz. PWM duty ratio is 1%~99%

  • Laser power control: analog voltage, 0~5V adjustable according to the motor control signal differential output, TTL level, 20mA driving capability, the max. motor control pulse frequency is 500KHZ.

  • The USB max. transmission speed is 12 Mbps, the longest distance is 5 meter.

  • 4-way generalphotoelectric isolation OC gate output, the max.drive capability is 600mA.

  • Linear/ circular/B Spline interpolation precision: +/-0.5pulse

  • 4-way generalphotoelectric isolation, TTL level

Application Area:Metal and non-metal laser cutting

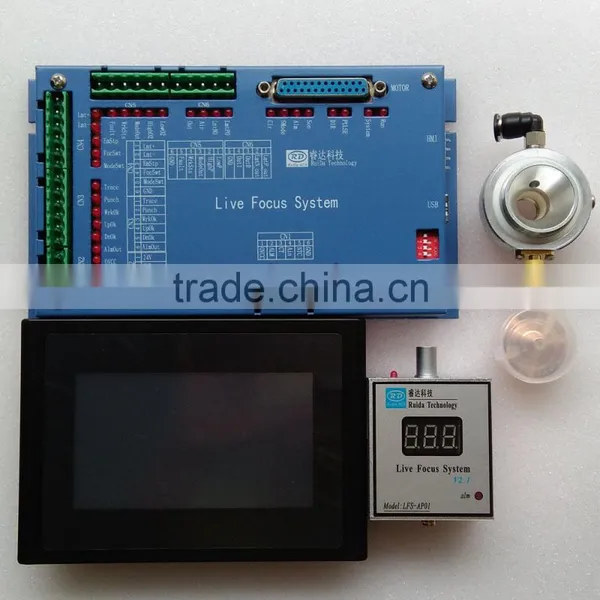

III. LFS-AM-T43 Analog Metal Live Focus System(with a touch screen)

Application Area

Metal cutting,non-metal cutting,uniaxial automatic control field

Technical Parameters

  • Digital quantity input detection, 24-bit precision;

  • Analog output +/-10V,12-bit precision;

  • General I/O output,photoelectric Isolation,high-power output to drive the relay,24V standard;

  • Dedicated motor interface,the limit switch input,pulse output frequency up to 500 KHZ;

  • 2-way PWM output, 24V and 5V level can be configured, the output frequency up to 100 KHZ;

  • Quadrature encoder input, TTL level;

  • Single data acquisition time≤2ms.

  • Low pressure punching, gradual punching, low pressure cutting, etc.cutting method.

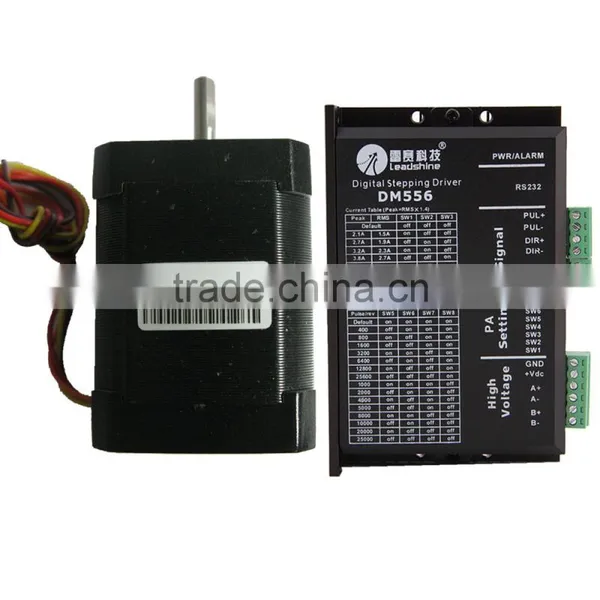

IV. 2 phase motor (42HS08) and driver (DM556)

Angle Accuracy

+5%(full step, no load)

Temperature Rise

80°C Max

Ambient Temperature

-10°C -- +50°C

Insulation Resistance

100MΩmin.500VDC

Dielectric Strength

500VAC for one minute

Shaft Radial Play

0.06 Max.(450g-load)

Shaft Axial Play

0.08 max.(450g-load)

Electric

Model No.

42HS08

Step Angle

1.8°

Phase

2 Phase

Holding Torque

0.71N.M

101.42 oz-in

NEME Size

NEME 17

Motor frame size

Frame 42

Current /phase

1.5 A

# of leads

4

Motor Length L

57 mm



Phase

Series

Model

Current

Voltage

Microstep

Motor Adapter

Size

2 Phase

DM

DM556

0.5-5.6A

20-50DCV

2-125

42, 57,86

86*55*20

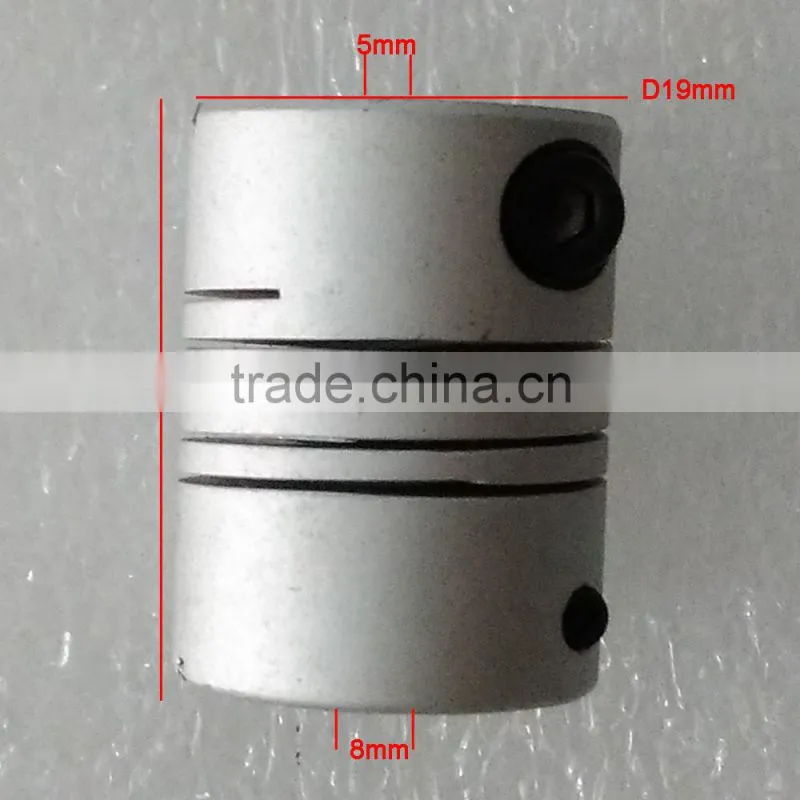

V. 5*8mm shaft connector

Automatic feeder Ruida CO2 laser metal and non metal mixed cutting system including head, controller, sensor, motor and driver

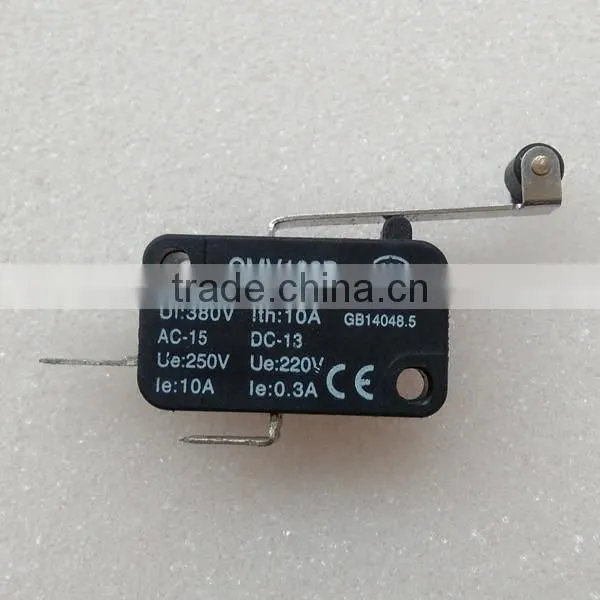

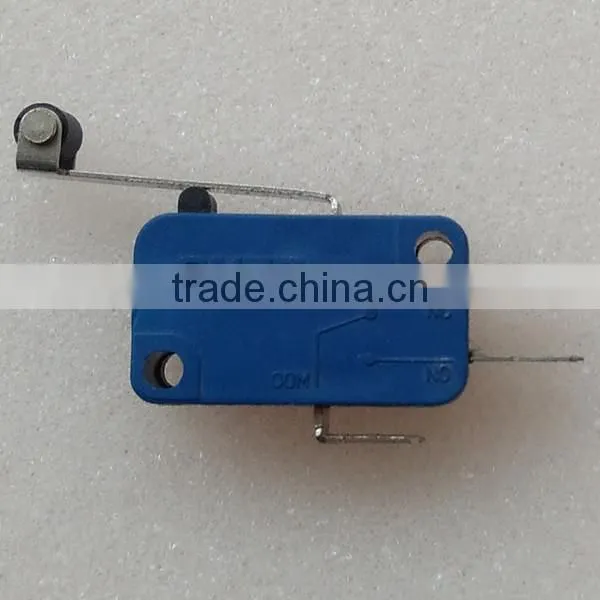

VI. limit switch
