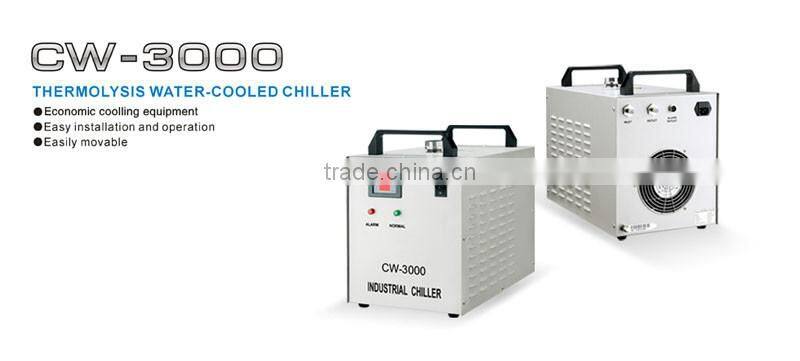

CW-3000 series thermolysis type water cooler has compact design,with energy saving,high cost performance,good protection and alarm system. It’s mainly used on the equipment for heat exchange between the heat and the air environment. The water temperature of cw-3000 cooler is related to ambient temperature, so it's thermostat is not manually adjusted.
Features:
1. Radiating capacity: 50W / Celsius Degree;
2. Small thermolysis water cooler, energy saving, long working life and simple operation;
3. With completed water flow and over high temperature alarm functions;
4. Multiple power specifications; CE approval; RoHS approval;
Specification
CW-3000AG: applied to cool a single 80W CO2 laser tube (emitting rate lower than 60%)
CW-3000AH: applied to cool dual 1.5 KW CNC spindles or welding equipment;
| Model | CW-3000AG | CW-3000DG | CW-3000AF | CW-3000DF | CW-3000AK | CW-3000DK |
| Voltage | AC 1P 220V | AC 1P 110V | AC 1P 220V | AC 1P 110V | AC 1P 220V | AC 1P 110V |
| Frequency | 50/60Hz | |||||
| Current | 0.45A | 0.9A | 0.45A | 0.9A | 0.5A | 1.0A |
| Radiating capacity | 50W/Celsius Degree | |||||
| Tank capacity | 9L | |||||
| Inlet and outlet | External Φ10mm brass connector | Φ8mm speedy connector | ||||
| Max. lift | 10M | 70M | ||||
| Max. flow | 10L/min | 2L/min | ||||
| Protection | Flow alarm | |||||
| N.W | 9.5Kgs | 12Kgs | ||||
| G.W | 12Kgs | 14.5Kgs | ||||
| Dimension | 49 x 27 x 38cm (L x W x H) | |||||
| Packing dimension | 55 x 36 x 45cm (L x W x H) | |||||
Product Advantages:
1. Leading refrigeration technology;
2.Self-developed intelligent temperature controller;
3. High efficiency,compact design and stable performance;
4.Simple setup,operation and maintenance.
