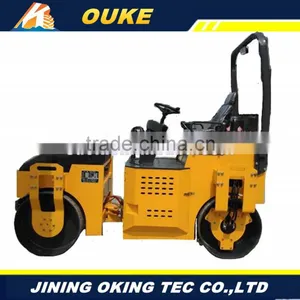

Compacting Machine,dynapac Vibratory Roller,electric Start Compaction Equipment

Compacting Machine,dynapac Vibratory Roller,electric Start Compaction Equipment thumbnail-1
Compacting Machine,dynapac Vibratory Roller,electric Start Compaction Equipment thumbnail-2
Compacting Machine,dynapac Vibratory Roller,electric Start Compaction Equipment thumbnail-3
Compacting Machine,dynapac Vibratory Roller,electric Start Compaction Equipment thumbnail-4
Compacting Machine,dynapac Vibratory Roller,electric Start Compaction Equipment thumbnail-5
Compacting Machine,dynapac Vibratory Roller,electric Start Compaction Equipment thumbnail-6
Compacting Machine,dynapac Vibratory Roller,electric Start Compaction Equipment photo-1
Compacting Machine,dynapac Vibratory Roller,electric Start Compaction Equipment photo-2
Compacting Machine,dynapac Vibratory Roller,electric Start Compaction Equipment photo-3
Compacting Machine,dynapac Vibratory Roller,electric Start Compaction Equipment photo-4
Compacting Machine,dynapac Vibratory Roller,electric Start Compaction Equipment photo-5
Compacting Machine,dynapac Vibratory Roller,electric Start Compaction Equipment photo-6
US$ 12,000 - 15,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Double Drum Roller
Static Linear Pressure:
55/70N/cm
Contact Supplier Request Quote Chat Now
Jining Oking Tec Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Double Drum Roller
Static Linear Pressure 55/70N/cm
Travel Speed 0-8Km/h
Grade Ability 30%
Brand Name OUKE
Model Number OKR-2.0T
Power(W) 19.5KW
Dimension(L*W*H) 2500*1140*1700
Weight 2 ton
Certification ISO9001, CE
After-sales Service Provided Engineers available to service machinery overseas
compacting machine,dynapac vibratory roller,electric start compaction equipment



Factory direct supply driving type daul drum road roller,Hydraulic vibration steel wheel road roller,mini road roller wholesales
compacting machine,dynapac vibratory roller,electric start compaction equipment
   driving type daul drum road roller,smooth wheel roller,Hydraulic vibration road roller
   2 ton Hydraulic Vibratory,mini road roller,Asphalt Compactor Diesel Motor Road Roller

We Can Guarantee


1. High quality, one year warranty.

2. Factory direct sale, decates production experience.

3. Competitive price.

4. Perfect pre-sale service ; Perfect after sales service.

5. Fast delivery.

6. OEM & Customized order available.

Hydraulic vibration steel wheel road roller

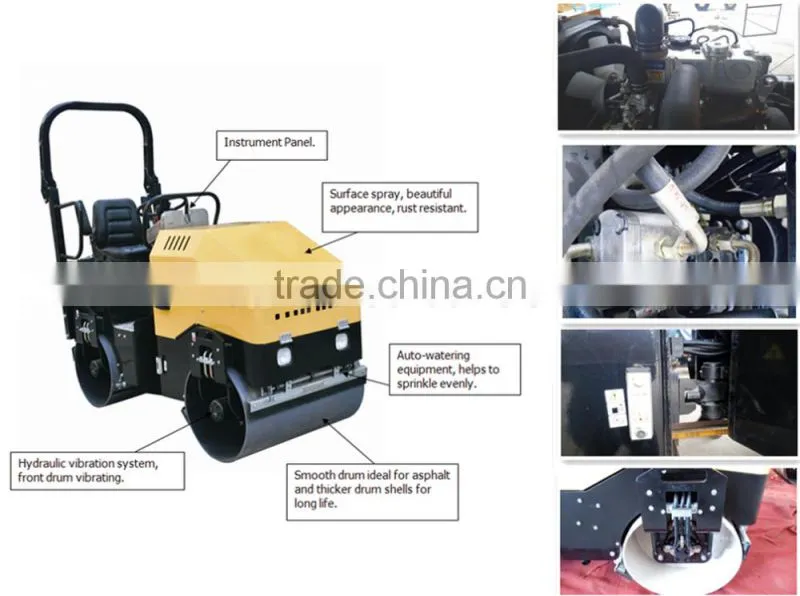

Product features



1).Operating radius is small, can work in a small area; suitable for groove backfill;

2). Full hydraulic transmission, h ydraulic vibration, hydraulic double drum drive, hydraulic steering;

3). 3 ton vibration force;

4).Italy Poclain hydraulic pump, America Permco and White hydraulic motor, which ensure the high quality of the machine;

5). With international NSK Bearings, ensure the good preformance of the machine;

6).Surface spray, beautiful appearance, rust resistant;

7).Engine Optional: orginal Perkins diesel engine, HONDA petrol engine, Changchai diesel engine.



compacting machine,dynapac vibratory roller,electric start compaction equipment
Driving type daul drum road roller

Technical Parameter


Walk

Speed

0-8km/h

Steering radius

1900mm

Climbing capacity

30%

Compaction

Static linear load forward/back

85/80 N/cm

Nominal amplitude

0.5mm

Vibration frequency

65Hz

Exciting force

21kN

Water tank capacity

150L

Engine

Model

KONLER

Type

Diesel,Water-cooled 4 stroke,three cylinders

Driving mode

Full hydraulic transmission

Power

19.5KW

Hydraulic oil tank capacity

30L

Lubricating oil quantity

2.4L

Fuel consumption

281g/kw*h

Dimensions

Width of the steel wheel

900mm

Diameter of steel wheel

560mm

Wheel base

1400mm

Total length

2450mm

Total width

990mm

Total height

2100mm

Packing size

2500*1140*1700

Weight

Working weight

1850kg



compacting machine,dynapac vibratory roller,electric start compaction equipment

OKR-2.0T road roller, both the front and rear wheel have the hydraulic drive set which has strong gradeability and high compacting efficiency. OKR-2.0T is hydraulic vibration, the single drum (front drum) vibration. Adopt Honda gasoline engine or KONLER diesel engine, has high quality and high performance.

compacting machine,dynapac vibratory roller,electric start compaction equipment
compacting machine,dynapac vibratory roller,electric start compaction equipment

More Types of Ride On Vibratory Road Rollers


OKR-2.0T (fully hydraulic drive & steering & vibration, 2000kgs, 30KN, Perkins engine and Honda engine Optional)



OKR-1.0T(fully hydraulic drive & steering, 1000kgs, 25KN, Water cooling diesel engine/ Air cooling diesel engine/ Honda gasoline engine)



OKR-850 (hydrostatic drive, mechanical steering, 800kgs, 20KN, Water cooled diesel engine/Air cooled diesel engine)

compacting machine,dynapac vibratory roller,electric start compaction equipment

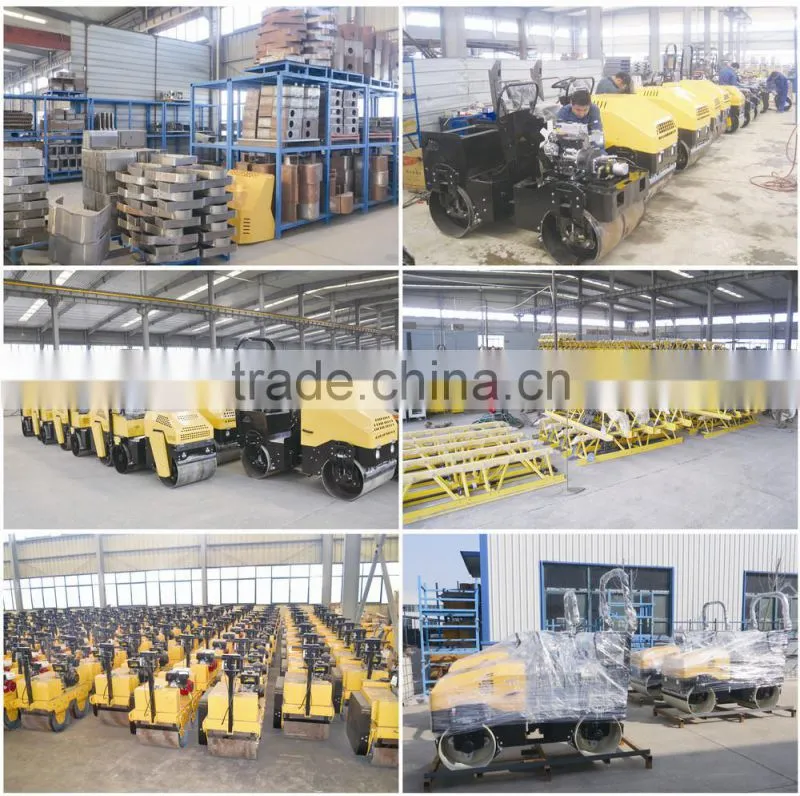

Our Workshop

compacting machine,dynapac vibratory roller,electric start compaction equipment

Thanks to pay attention to our products. We will be appreciate to hear from you for any question. If you need any information, please don't hesitate to contact us, we will at your service 24hours.
