Road construction equipment

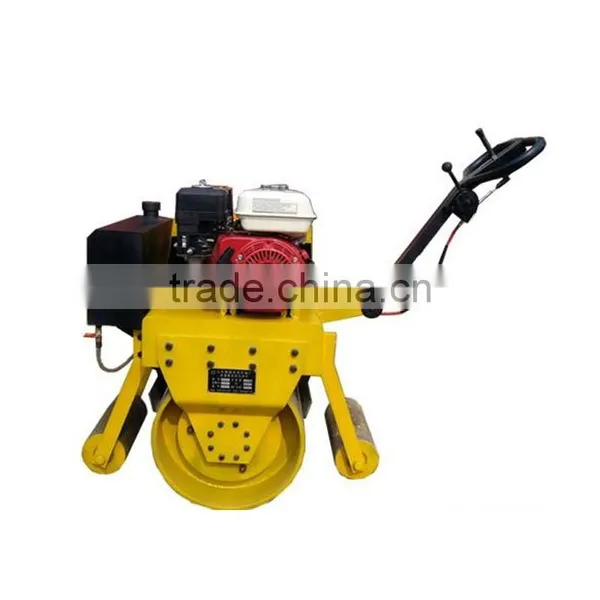

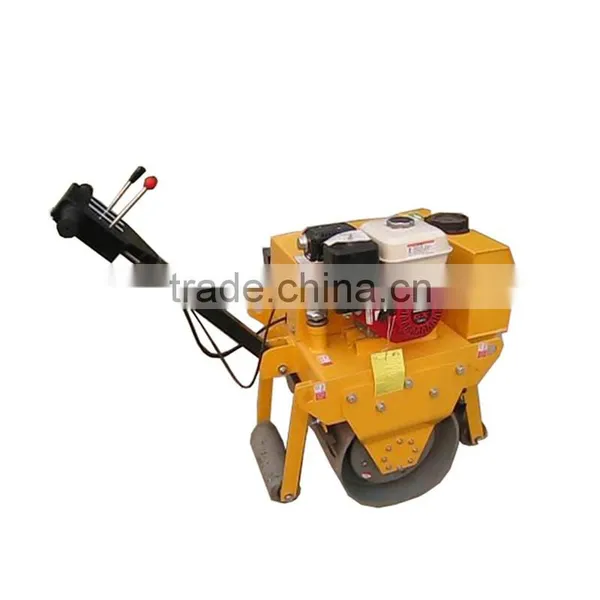

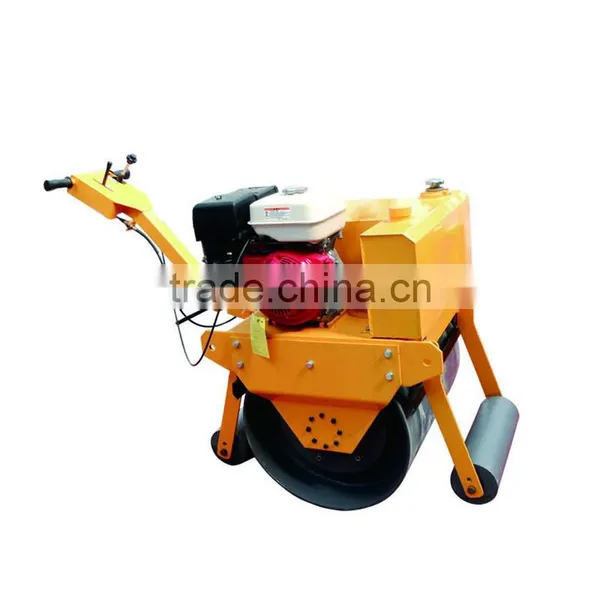

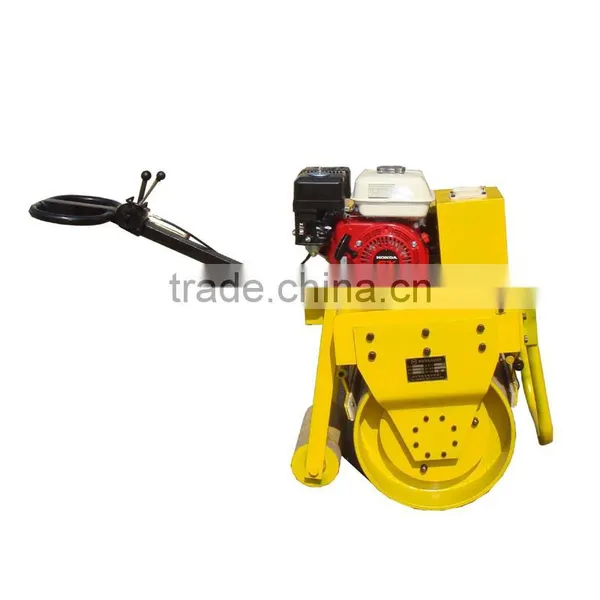

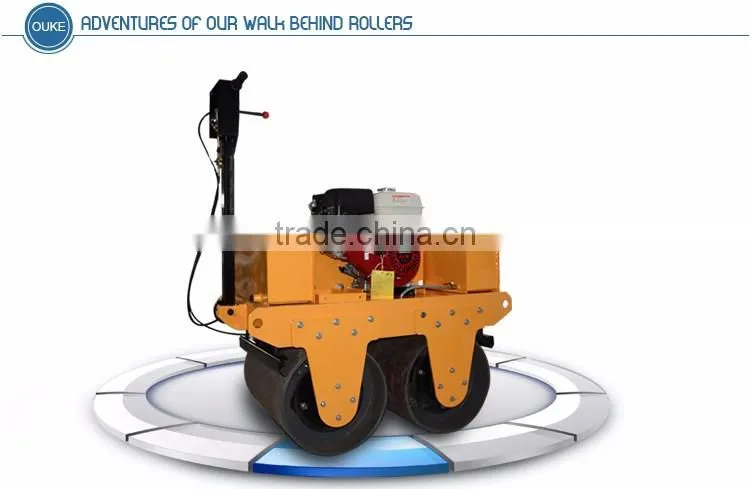

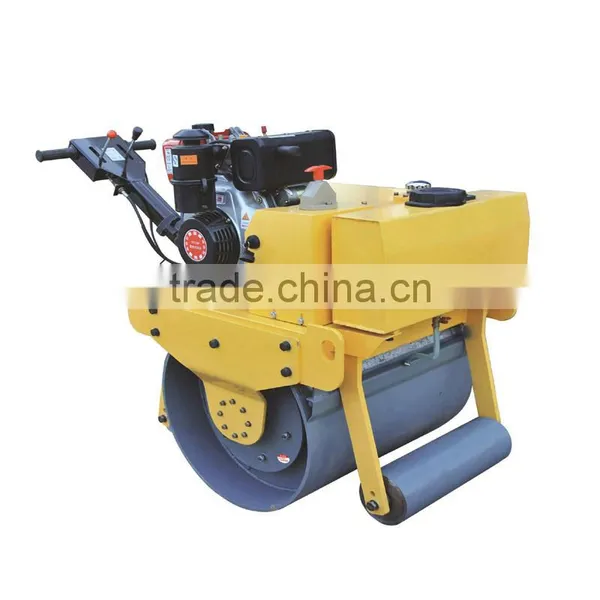

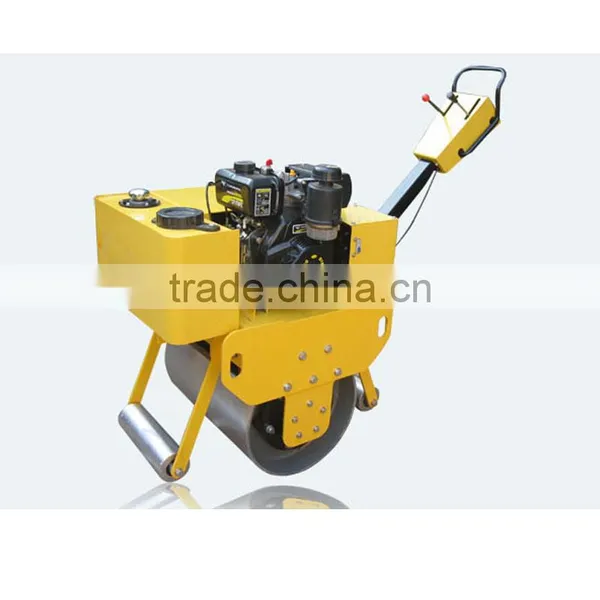

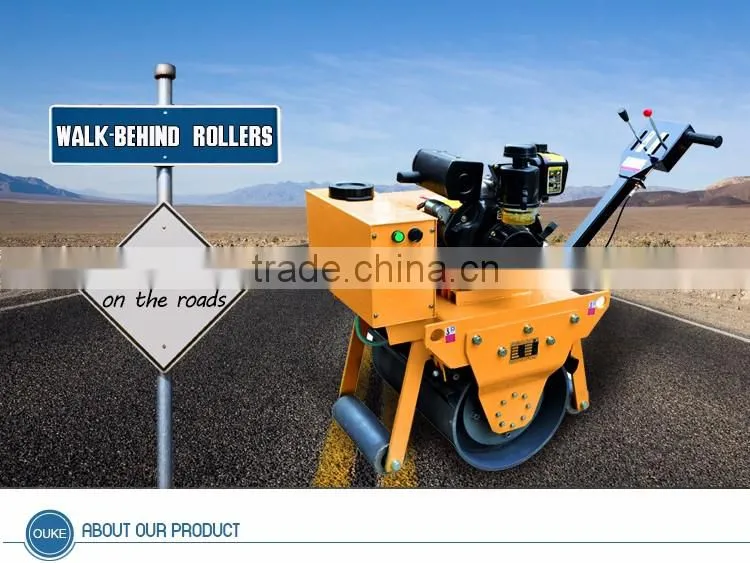

Walk-behind rollers can be single drum or tandem models. Both types are self-propelled and can work in reverse travel direction and are controlled by cable or road linkages. The mobility of walk-behind rollers improves compaction power when compared to plates and tampers. They are used for soil, granular and asphalt compaction and for small area repair and pothole work.
Data of our walk-behind rollers:
Items |
Single drum rollers |
Tandem drum rollers |
||
Model No. |
OKR-600 |
OKR-600C |
OKR-S600 |
OKR-S600C |
Engine Type |
Gasoline |
Diesel |
Gasoline |
Diesel |
Drive Speed |
4 km/h |
4 km/h |
4 km/h |
4 km/h |
Working depth |
600 mm |
600 mm |
600 mm |
600 mm |
Frequency |
75hz |
75hz |
75hz |
75hz |
Power |
5.5ph |
3.0kw |
9hp |
4.0kw |
Drive type |
hydraulic |
hydraulic |
hydraulic |
hydraulic |
Weight |
325kg |
350kg |
520kg |
530kg |
Material |
Steel |
Steel |
Steel |
Steel |
Linear static Pressure |
20KN |
20KN |
20KN |
20KN |
Grade ability |
30% |
30% |
25% |
25% |
Size (mm) |
1500x760x1050 |
1500x760x1050 |
2450x780x1100 |
2450x780x1100 |
| Engine Type | Honda GX160 | Changfa CF170F | Honda GX270 | Changfa CF178F |
*Beveled edge steel drum has adjustable and reversible polyurethane self-cleaning scrapers to prevent soil and
asphalt buildup between the frame and the drum giving smooth and uniform services.
*Automatic breaking system in forward and reverse for greater operator safety.
*Adjustable, enclosed handle improves operator comfort and folds vertically for convenient transportation and storage.
*Transport drive system is fully enclosed, increasing component life for continued operation and higher production.
*With small operating radius, make sure it can working within small area.
*To adopt international famous brand for hydraulic driving system, which is stepless speed regulation and reverting conveniently.
*Self-locking reverting mechanism, make sure reverting easily and operating conveniently.
*Stainless steel water sprinkling pipe with filtering net, make water flow smoothly.
*For drive elements , adopts NSK bearing and MITSUBOSHI V-belt from Japan to make sure the performance of whole machine.
*The whole machine frame is plastic treated, so it is anti-rusting, anti-corrosion and beautiful.
Jining oking tec co.,ltd has advanced management, strong technical force and perfect production and testing equipment. We have attained ISO9001:2008 Quality System Certification, and our mining rubber products have got "SAFETY CERTIFICATE OF APPROVAL FOR MINING PRODUCTS" .We always pursues outstanding product quality.Our products are widely used in bulk material handling industries including mine power generation tallurgy chemical and other fields.We will always adhere to the principle of "trustworthy and innovative, pursuing excellence" and continue doing our best as before to provide high standard products and satisfactory services for customers.We welcome customers from domestic and abroad to co-operate with us for mutual benefits and common development.
