Specifications
2015 Factory supply single wheel,self leveling screed,construction concrete screed machine
1. High performance, more durable.
2. HONDA engine.
3. Fast delivery.
4. Best service

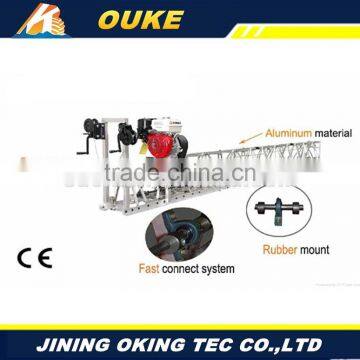

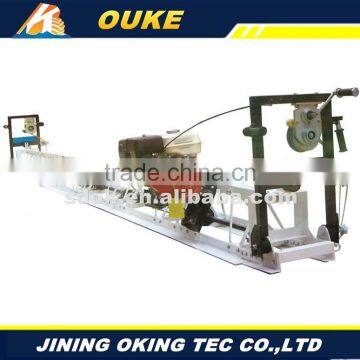

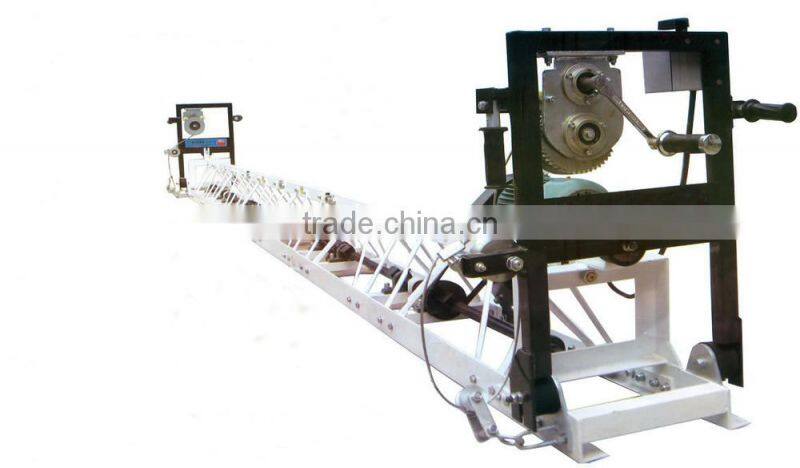

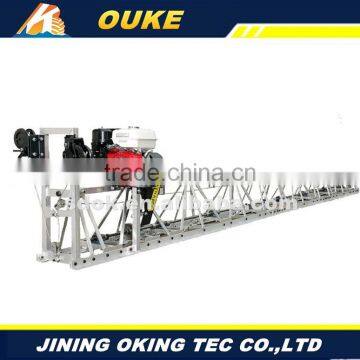

2015 Factory supply single wheel,self leveling screed,construction concrete screed machine
Concrete vibrating truss screed has the biggest advantage that it can accord to customer requirements, customized length,the maximum can be extended to 18M concrete. This framework is a set of vibrating beam construction concrete floor of compaction, leveling, vibration, put the pulp and integration of small construction machinery and equipment.
Technical Parameter of Best quality concrete vibratory screed self leveling screed
Model |
OKS-55 |
OKS-90 |
OKS-130 |
||
Engine Model |
HONDA GX160 |
HONDA GX270 |
HONDA GX390 |
||
Power |
5.5HP/4.0kw |
9HP/6.6kw |
13.0HP/9.6kw |
||
Type |
Gasoline engine, air-cooled 4-stroke, OHV, single cylinder |
||||
Working width |
4-6.5m |
7-9m |
9-18m |
||
Working depth |
260mm |
||||
Vibration frequency |
70Hz |
||||
Truss material |
aluminium alloy or steel |
||||
Fuel tank capacity |
3.6L |
6L |
6.5L |
||
The amount of lubricating oil |
0.6L |
1.1L |
|||
Truss length |
2m or 1m |
||||
travel speed |
1.2-2.5m/min |
||||
Impact force |
120N |
||||
Weight |
40KG/M |
||||
Features of Best quality concrete vibratory screed self leveling screed
1). HONDA power (or famous electric) brand quality assurance, superior performance, easy to start.
2). Truss screeds baseplate select cold rolled sheet, wear and corrosion resistance.
3). The overall frame adopts full aluminum alloy structure, portable.
4). Removable and free combination design, greatly reduces the maintenance and transportation cost.
5). The whole meters can fast joint together, reduce the cost.
6) Our factory production of bearing vibration are imported bearing; To improve the service life of the machine
Truss Screed Packing: packed in one carton box or wooden box, section in separate package.
Service for 2015 Factory supply single wheel,self leveling screed,construction concrete screed machine
1).Ensure that our products meet the quality standard.
2).Ensure the orders will be delivery on time.
3).Provide warm and friendly after-sales-service.
4) 24 hours techinical support online
5)Calling or door-to-door service
2015 Factory supply single wheel,self leveling screed,construction concrete screed machine
As a professional manufacturer of construction machines used in buildings, bridges, railways and tunnel projects. We special in production of steel bar cutting machine, steel bar bending machine, CNC steel bar straightening and cutting machine, thread rolling machines and related products. Our products are domestically in a leading position in the same field. Welcome to visit & cooperate with us and create a bright future together.
Q: What's the usually delivery terms?
A: FOB, CFR, CIF, Exwwill be OK.
Q: What’s the payment term?
A: We accept T/T, L/C, Cash.
Q: What's your delivery port?
A: Usually Qingdao port, Tianjin, Shanghai or other port of China is OK.
Q: Can I change the motor to my local voltage and frequency, Is there any extra charge?
A: Yes, we can supply motor with frequency and voltage according to local standard.
Such as 220V/380V/410V/415V/440V, and 50HZ/60HZ without extra charge.
Q: Can you place OEM?
A: Yes, OEM orders are acceptable. We can manufacture machines according to your
requirement with your design, logo, color, materials or brand information.
Q: Does machine have warranty?
A: Yes,Our machine with one year warranty period for the main parts.
Q: Dose machine have certificate?
A: Yes, Our machine with ISO Certificates.
