Multifunctional sex dynapac concrete vibrator,Electric Concrete Vibrator,dynapac dynapac concrete vibrator for wholesales | ||

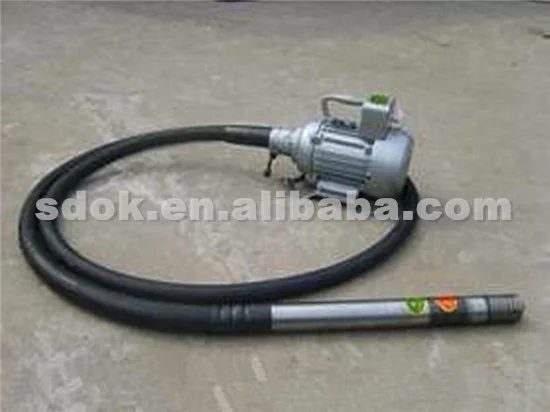

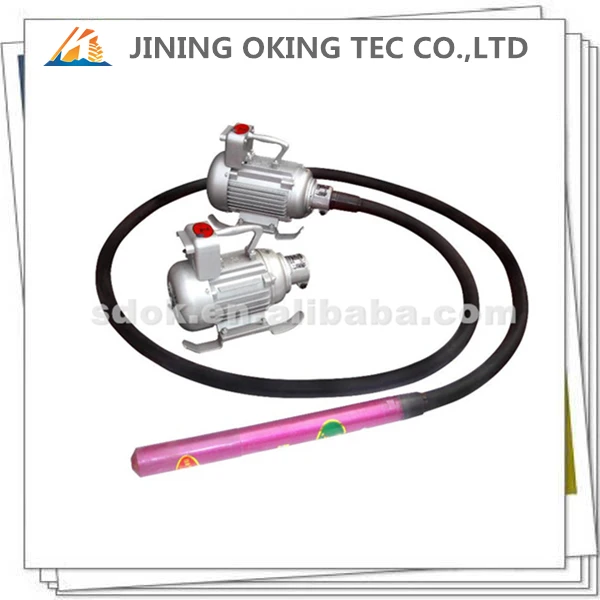

Electric concrete vibrator |

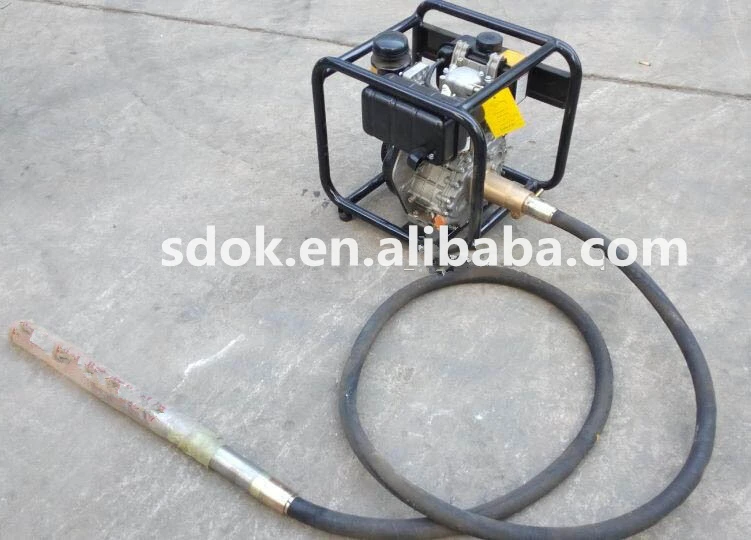

Gasoline concrete vibrator |

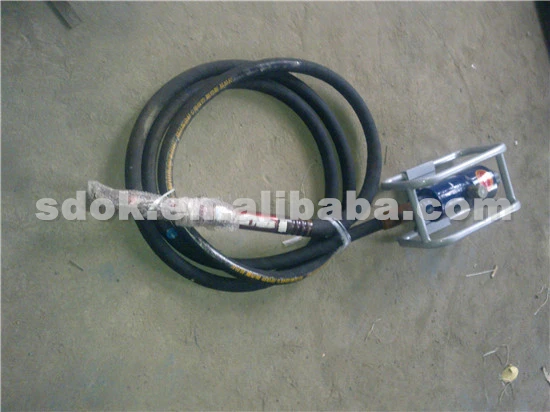

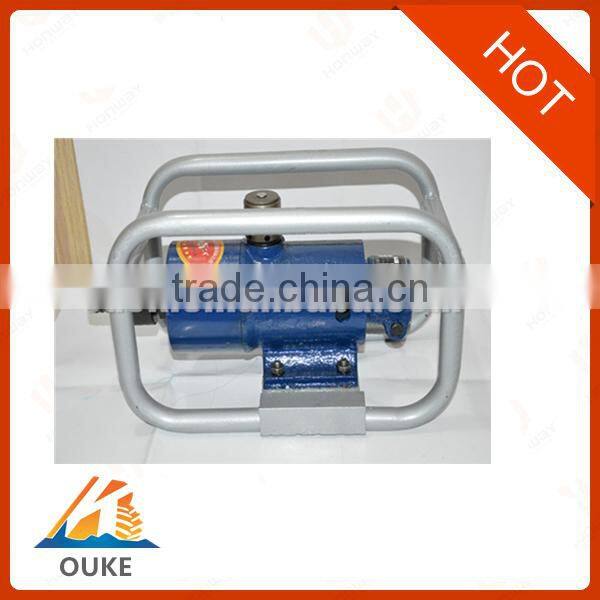

Pneumatic concrete vibrator |
Photo image display | ||
|
|
|
Specifications | ||

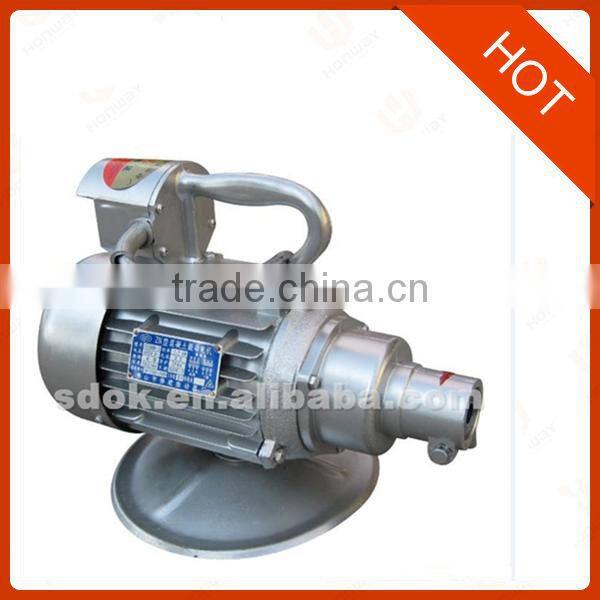

Electric concrete vibrator |
Gasoline concrete vibrator |
Pneumatic concrete vibrator |
|
Weight: 18KG Power: 2.2KW Vibration frequency: 225HZ Vibration amplitude: 1.35mm Power supply: 3 phase 50HZ380V |
Weight : 48KG Power : 4KW Vibration frequency : 200HZ Vibration amplitude : 1.15mm Fuel consumption : less than 395g/kw-h |
Weight: 15KG Using air pressure: 0.4-0.5MPa Vibration frequency: 200HZ Vibration amplitude: 1.15mm Rated speed: 3000r/min |
| Application of concrete vibrator | ||
| concrete vibrators are widely used in industrial buildings, civil buildings, commercial buildings, bridges, ports, construction, tunnel, highway, airport, dock, defense engineering, stadiums, hydraulic engineering, mining engineering, high-rise building medium perfusion column, dense network of reinforced concrete wall construction sites. The machine is used for vibrating construction work. | ||
| Classification of concrete vibrator | ||
| Concrete vibrator can be divided into three types according to the power source: electric, pneumatic, gasoline engine. According to the power source can be divided electric motor, pneumatic motor, gasoline engine. | ||
| Instructions of concrete vibrator | ||
|
1. Should be the vibrating rod mounted on a solid foundation, anchor bolts should be of sufficient strength and tighten, also in the middle of the foundation must leave the underground tunnel, for frequent adjustment and maintenance. 2. Before use, should check and test run, check the parts are intact, all fasteners, especially bearing bolt seat, an eccentric block bolts, motor and gear box bolt etc., we must firmly fasten. 3. Vibration rod is not good for long time operation. In the production operation, we must place a solid and reliable template lock clamp, to ensure that the template and the concrete surface vibration. 4. The gear box is loaded with high speed and heavy load, so it should be lubricated and cooled. The oil should be kept in the specified level, and the working temperature should not exceed 70. 5. Shaking table all bearing should regularly check and regular cleaning replace grease, good lubrication of the bearing, and should pay attention to check the bearing temperature rise when overheating should immediately try to eliminate. 6. Power cord and cable connector should be insulated, and the motor grounding performance should be good and reliable, and there is no leakage phenomenon. 7. Vibrating rod surface should be kept clean and flat, so that contact with the steel mold is good. Due to the high frequency and heavy load of the surface vibration, easy to produce cracks, we must pay attention to check, timely repair. Every shift should be cleaned in time. | ||

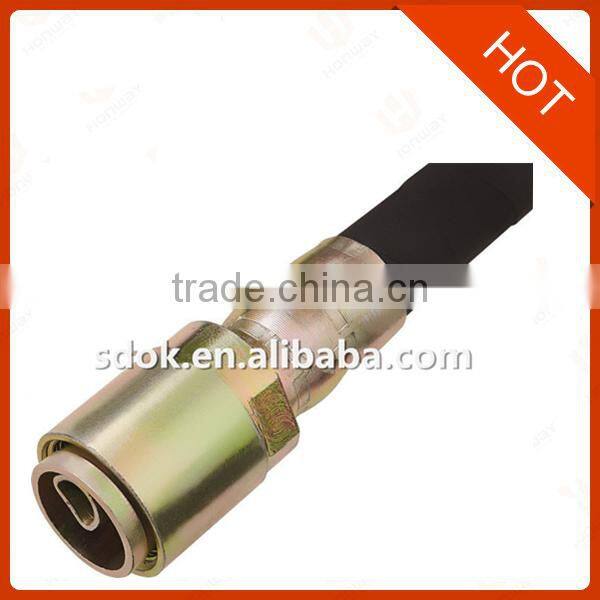

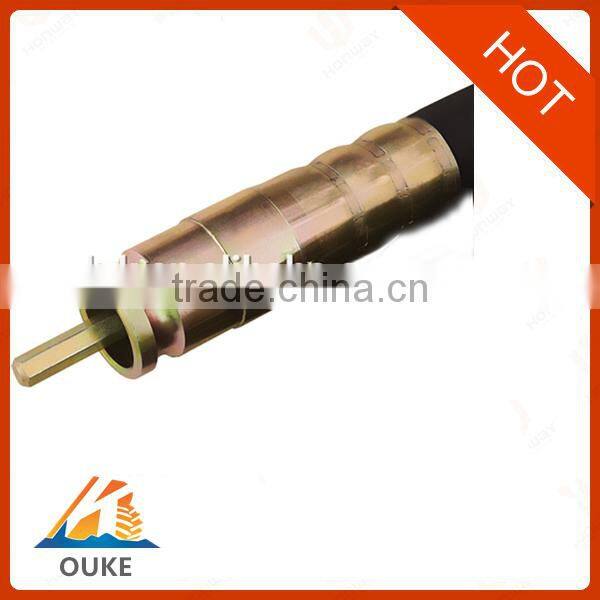

| Accessories of concrete vibrator | ||

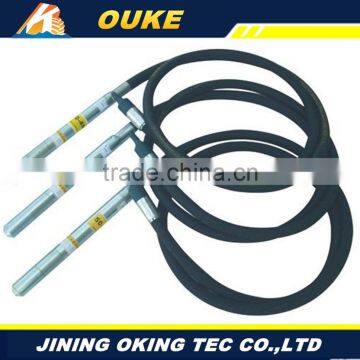

| Vibrating rod according to the diameter can be divided into 25mm, 35 mm, 50 mm and 70 mm. The length of the vibrating rod is 4 meters, 6 meters, 8 meters. Our can be customized according to customer requirements. According to the machine with different configurations, prices are not the same. | ||
|
|
|
|
| ||
| Physical display of concrete vibrator | ||
|
|
|
| Concrete vibrator to participate in the exhibition | ||
|
| ||
|
| ||
| Contact us | ||
