Home > Products > 03. Log Splitter (Gasoline) > Professional CE EPA approved horizontal and veitical super towable hydraulic log splitter 50 ton

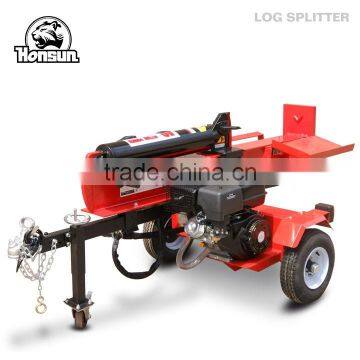

Professional CE EPA approved horizontal and veitical super towable hydraulic log splitter 50 ton
US$ 850 - 890
/ Piece
1 Piece(Min. Order)
- Qingdao
You May Like
-
Italy Bologna Fair exhibited HONDA GX390 50 ton electric start hydraulic gasoline log splitter
-
(HS-LS-50T) Honda, Kohler, B&S gasoline engine 50 ton hydraulic log splitter
-
6.5 HP industrial Honda 30 ton wood splitter
-
Self-power 6.5 HP industrial Honda 30 ton wood cutter
-
Powered 6.5 HP Honda engine hydraulic horizontal/vertical log splitter
-
Powered 6.5 HP Honda engine hydraulic horizontal/vertical log cutter
Product Details
| Condition | New | Type | Log Splitter | |
| Use | Split log wood into pieces | Power Type | Gasoline | |
| Production Capacity | 50 ton | Place of Origin | Shandong, China | |
| Brand Name | HONSUN | Model Number | HS-LS-50T | |
| Dimension(L*W*H) | 2300*1150*960mm | Weight | 285kg | |
| Certification | CE EPA | Warranty | 24 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
SPECIFICATIONS | ||
| √ | Model No. | HS-LS-50T |
| √ | Manufacturer | HONSUN |
| √ | Pre-Assembled | No |
| √ | Engine brand | Honda, Briggs & Stratton, Kohler, Lifan, Ducar and Loncin optional |
| √ | Displacement | Honda 389cc, B&S 420cc, Kohler 429cc, Ducar 420cc |
| √ | Horse power | Honda 13hp, B&S 13.5hp, Kohler 14hp, Ducar 15hp |
| √ | Engine start | Recoil/Electric |
| √ | Splitting method | Vertical and horizontal |
| √ | Max log length | 25" |
| √ | Max log diameter | 25" |
| √ | Hydraulic cylinder | 5"x25" |
| √ | Ram travel | 25" |
| √ | Cycle time | 12 seconds |
| √ | Wedge | 4 way blade (2 way available), replaceable, sharpenble |
| √ | Max force | 50 ton |
| √ | Control valve | 100L three position with auto-return |
| √ | Pump | 22 gallon, two stage |
| √ | Tank capacity | 36L |
| √ | Hydraulic filter | Yes |
| √ | Log cradles | Yes |
| √ | Oil and temperature gauge | Yes |
| √ | Standard tire | 6.8-8 |
| √ | Vacuum tire | 4.8-8 |
| √ | Fenders | Included |
| √ | Log guardian | Included |
| √ | Hitch ball | 2" America, Australia, New Zealand and Europe type optional |
| √ | OEM | Acceptable |
| √ | Consumer warranty | 24 months limited |
| √ | Packing | Splitter will be arrived in a plywood box with complete instruction manual |
| √ | Free parts | 10 pcs cylinder seals, 5 pcs keyway, 5 pcs plum pad, 2 pcs tank cap |
| ADVANTAGE | |
| • | Oil and temperature gauge, can see oil ullage obviously |
| • | Backplate with pierced design, deform difficulty |
| • | Honda GX390, Briggs & Stratton I/C Gross and Kohler Command Pro gasoline engine optional |
| • | Special design, oil tank can be widely opened to get rid of silt |
| • | With rear light and vacuum tire, can be towed on public road legal |
| • | 4 types tow hitch option: 2" America, Australia, New Zealand and Europe type |
| HONDA 390 ENGINE | |
| Engine brand | Honda GX390 |
| Type | GX series OV-commercial duty |
| Horse power | 13hp |
| Rated power | 9.56kw |
| Displacement | 389cc |
| Bore | 3.5" |
| Stroke | 2.5" |
| Torque (ft./lbs.) | 18.50 2500 RPM |
| Shaft output | Horizontal |
| Crankshaft | Q-type |
| Shaft diameter | 1" |
| Shaft length | 3 31/64 |
| Shaft keyway | 1/4" |
| Shaft end tapped | 3/8-24 |
| Shaft rotation | Counterclockwise |
| Cylinder (qty.) | 1 |
| Cylinder bore | Cast iron |
| Compression ratio | 8.0:1 |
| Cooling system | Air cooled |
| Air cleaner type | Dual element |
| Fuel tank capacity (qt.) | 6.4 |
| Fuel filter | Fuel tank filler neck strainer |
| Oil capacity (qt.) | 1.16 |
| Lubrication system | Forced splash |
| Low oil alert | Yes |
| Low oil shutdown | Yes |
| Ignition system | Electronic |
| Governor system | Centrifugal mechanical |
| Carburetor | Float, external vent |
| Throttle control | Remote (wire) |
| Choke control | Manual |
| Max. RPM | 3600 |
| Charging system amps | 10 |
| Muffler included | Silent, exhaust pipe protector, deflector |
| Auto compression release | Yes |
| Bolt circle (in.) | 5, 6 1/2 |
| Mounting base L x W (in.) | 7 11/16x3 25/64 to 4 1/16 |
| Dimensions L x W x H (in.) | 15 7/8x17 11/16x17 3/8 |
| EPA/CARB approval (California air resource board) | Yes |
| HONSUN MAIN PRODUCT | |||
| 18 ton log splitter | 26 ton log splitter | 30 ton log splitter | 34 ton log splitter |
| 50 ton log splitter | Leaf blower | Stump grinder | Mini trencher |
