Home > Transportation > Train & Railway > Railway Supplies > Imported Rail Changer Device for 10kN

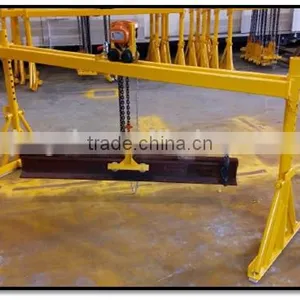

Imported Rail Changer Device for 10kN

Name: Imported Rail Changer Device for 10kN
Brand: Delta
SKU: 143286208
Availability: InStock

Imported Rail Changer Device for 10kN thumbnail-1

Imported Rail Changer Device for 10kN photo-1

US$ 2,000 - 2,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Dimensions (L x W x H) (mm):

2310mm*700*1295mm

Place of Origin:

Singapore

Brand Name:

Delta

Contact Supplier Request Quote Chat Now

Jinzhou Tiegong Railway Maintenance Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian or any other ports

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Dimensions (L x W x H) (mm) 2310mm*700*1295mm

Place of Origin Singapore

Brand Name Delta

Model Number 10kN

Rail Changer for 10 kN

DESCRIPTION OF RAIL CHANGER

The Rail Changer is a specific machine designed to lift rails with a maximum weight of 12T.

WARNING: Any other use of the machine is prohibited.

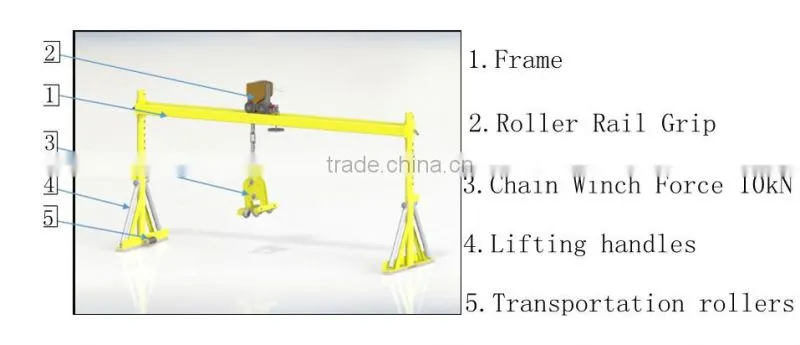

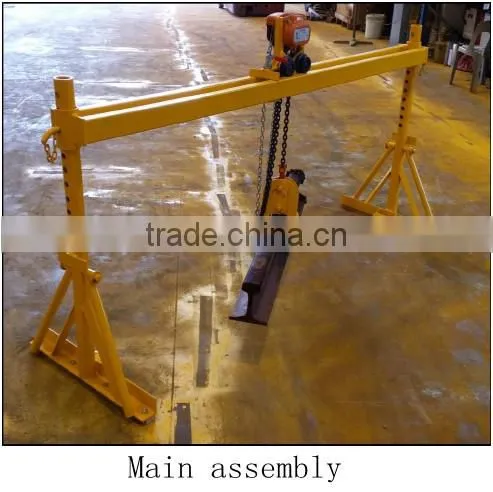

The rail changer consists of a metal structure, and mainly comprises the following parts (see figures below):

GENERAL MANUFACTURING SPECIFICATION

Overall Length with Lifting Arms Closed	:	2310 mm
Overall Length with Lifting Arms Opened	:	3150 mm
Height	:	1295 mm
Width	:	700 mm
Weight of the Rail to be lifted	:	1.0 Ton

MAINTENANCE

1. Frame

Periodical lubrication every 200 hours

- Adjustable legs;

- Articulation of the handles;

2. Roller Rail Grip

Periodical lubrication every 100 hours

- Rollers;

- All the pins/articulation of the rail grip;

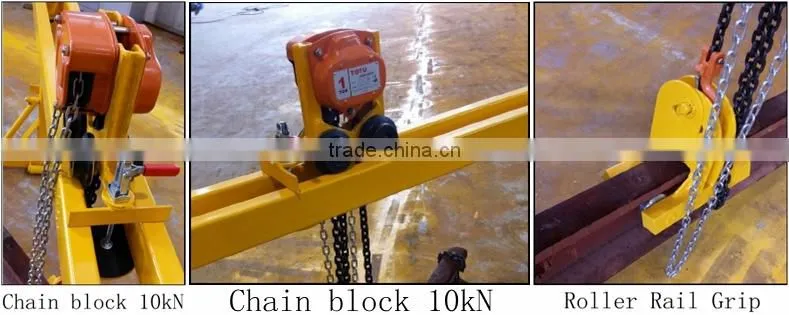

3. Chain Winch Force 10kN

a. Slightly oil the lifting chain before first use of the equipment;

b. Every 200 hours oil:

- The lifting chain;

- The lifting eye and lower carrier;

- The single flange rollers;

c. Regularly check the state of the links of the chain;

d. Never grease the braking system crank side.

SAFE OPERATION OF CHAIN BLOCK

1.Don’t overload your chain block.

2.Don’t step in under the load.

3.Don’t try to suspend a load with two blocks.

4.Don’t pull up too far or pull down slamming fast.

5.Don’t use the chain with a kink.

6.Don’t get the load dragged against the floor.

7.Don’t give the load a sudden take-off. Take a breath when the load chain is just taut and check for the brake action by pulling up and down about 10 cm above the floor.

8. Do not turn round the chain block as loaded.

COMPONENTS
