Reinforced Resinoid Offset Flexible Cutting Wheel 100*3*16MM

Reinforced Resinoid Offset Flexible Cutting Wheel 100*3*16MM thumbnail-1
Reinforced Resinoid Offset Flexible Cutting Wheel 100*3*16MM photo-1
US$ 0.2 - 0.26 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
PEXCRAFT
Model Number:
100*3*16MM
Contact Supplier Request Quote Chat Now
Sichuan Machinery Imp. & Exp. Corp.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name PEXCRAFT
Model Number 100*3*16MM
Type Abrasive Disc
Size 100*3*16MM



Reinforced Resinoid Offset Flexible Cutting Wheel 100*3*16MM1) Grinding wheel of reinforced style


2) Depressed center


3) Coarse surface, used for metal


4) Colors: Black & Brown



Wheel Size   (D×T×H) Max. Speed Carton Size (cm)
[inch] [R.P.M] [R.P.M] L×W×H
4×1/4×5/8 100×6×16 15200 41×22×22
4 1 / 2 ×1/4×7/8 115×6×22 13300 41×25×25
4 1 / 2 ×5/16×7/8 115×8×22 41×25×13
5×1/4×7/8 125×6×22 12200 41×27×14
5×5/16×7/8 125×8×22 41×27×14
6×1/4×7/8 150×6×22 10200 41×32×17
7×5/32×7/8 180×4×22 8500 38×31×20
7×1/4×7/8 180×6×22 41×38×19.5
7×5/16×7/8 180×8×22 41×20×20
9×1/4×7/8 230×6×22 6640 41×25×25
9×5/16×7/8 230×8×22 41×25×13

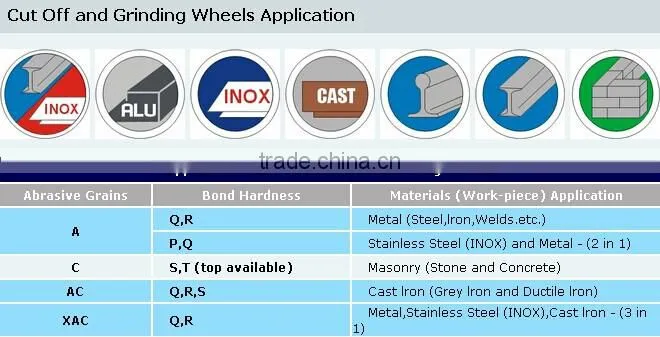

Standard Code of Specifications for wheels
The following table is an example of standard marking system for identifying grinding wheels and other bonded abrasives. For example: A24 RBF.
A 24 R B F
Primary Grains Grain  Size Bond Hardness Bond Type  Reinforcement
A    Brown Aluminium Oxide Coarse    Medium    Fine Soft  Medium  Hard B  =Resinoid Fiberglass
WA White Aluminium Oxide F1   =1 layer
C     Black Silicon Carbide 16/24 /30/36/46/60/80/100/120 N, O, P,  Q,  R, S,T   F2   =2 layers
XA   Excellent Super Grains
AC   Mixed Grains
Snagging Grinding &Cutting  Polishing
    F3   =3 layers
XAC Special Abrasive Grains     F2.5 =2 and half layers

Wheel Configurations

Bonded abrasive wheels have different configurations depending upon the wheel is used on and the desired end result. Below is an example of wheel configuration:

Each wheel configuration is shown on the pages throughout this catalog. The D, T, and B connotations represent the size of the wheel.

   D   Diametet the wheel
   T   Thickness of the wheel
   B   Bore or hole size of the wheel

Recommended Machines

Single-handed angle grinder
100mm, 115mm, 125mm; 500-1400 Watt

Double-handed angle grinder
150mm, 180mm, 230mm; up to 2500 Watt









 Advantages:
1.Research & Development to maximum efficiency.
2.High-grade raw materials and strictly monitoring.
3.Security and Quality.


 Product Line:
1.Production workshop

2.Productive process

3.Test room
