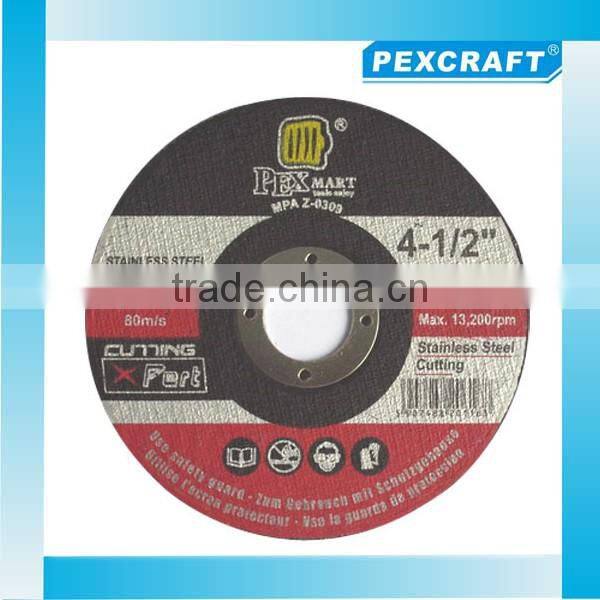

Cutting Wheel for Stainless Steel 115*1.0*22.2mm

Sichuan Machinery Imp. & Exp. Corp.
Cutting Wheel for Stainless Steel 115*1.0*22.2mm thumbnail-1
Cutting Wheel for Stainless Steel 115*1.0*22.2mm photo-1
US$ 0.13 - 0.14 MOQ: 10000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
PEXCRAFT
Shape:
Flat-Shaped
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name PEXCRAFT
Shape Flat-Shaped
Abrasive Corundum
Bonding Agent Resin
Hardness Standard
Viscosity Standrad
Size 115x1.0x22.2mm

 Specification



Grinding wheel Product Description

1. High metal removal rate.

2. Less material loss, noise and dust, few sparks.

3. Long-life durability.

4. Low vibration and high stability for comfortable grinding or cutting.

5. 2 sheets of fiberglass for durability and safety,

6. Made by abrasive and special resin, has high tensile, shock and bending strength.

7. Strict quality testing,good after-sale service.

8. Packing : shrink + neutral inner box + neutral carton

9. Accept OEM order for grinding wheel



Abrasives: (A) Aluminium Oxide

Cutting Wheel for Stainless Steel 115*1.0*22.2mmCutting Wheel for Stainless Steel 115*1.0*22.2mm
Cutting Wheel for Stainless Steel 115*1.0*22.2mm






iteminchcarton size inner box sizepiece/carton
100*3*164*1/8*5/841X22X22.519.7*10.2*10.5400
100*4*164*5/32*5/843.5X22.5X22.514*10.2*10.5300
100*6*164*2/8*5/838.5X22X2318.5*10.2*10.5200
115*3*224.5*1/8*7/843X25.5X13.520.7*12*12200
115*6*224.5*2/8*7/837X25X2618*12*12200
125*3*225*1/8*7/843X27.5X14.520.7*12*12200
125*6*225*2/8*7/827X19X2818*13*13100
150*3*226*1/8*7/832.5X23X16.516.5*11*16.5200
150*6*226*2/8*7/835.5X32X16.517*15.3*15.5100
180*3*227*1/8*7/838.5X23.5X2018.5*11*18.5100
180*6*227*2/8*7/836X19X2018.5*17.5*18.550
230*3*229*1/8*7/844X25X2523.5*10.5*23.5100
230*6*229*2/8*7/844X25X2523.5*8.5*23.550



Standard Code of Specifications for wheels
The following table is an example of standard marking system for identifying grinding wheels and other bonded abrasives. For example: A24 RBF.
A24RBF
Primary GrainsGrain  SizeBond HardnessBond Type Reinforcement
A    Brown Aluminium OxideCoarse    Medium    FineSoft  Medium  HardB  =ResinoidFiberglass
WA White Aluminium OxideF1   =1 layer
C     Black Silicon Carbide16/24 /30/36/46/60/80/100/120N, O, P,  Q,  R, S,T F2   =2 layers
XA   Excellent Super Grains
AC   Mixed Grains
SnaggingGrinding &Cutting Polishing
  F3   =3 layers
XAC Special Abrasive Grains  F2.5 =2 and half layers

Wheel Configurations

Bonded abrasive wheels have different configurations depending upon the wheel is used on and the desired end result. Below is an example of wheel configuration:

Each wheel configuration is shown on the pages throughout this catalog. The D, T, and B connotations represent the size of the wheel.

   D   Diametet the wheel
   T   Thickness of the wheel
   B   Bore or hole size of the wheel
Cutting Wheel for Stainless Steel 115*1.0*22.2mmCutting Wheel for Stainless Steel 115*1.0*22.2mm

Recommended Machines

Single-handed angle grinder
100mm, 115mm, 125mm; 500-1400 Watt

Double-handed angle grinder
150mm, 180mm, 230mm; up to 2500 Watt

Cutting Wheel for Stainless Steel 115*1.0*22.2mmCutting Wheel for Stainless Steel 115*1.0*22.2mmCutting Wheel for Stainless Steel 115*1.0*22.2mm

 Cutting Wheel for Stainless Steel 115*1.0*22.2mm





Cutting Wheel for Stainless Steel 115*1.0*22.2mm

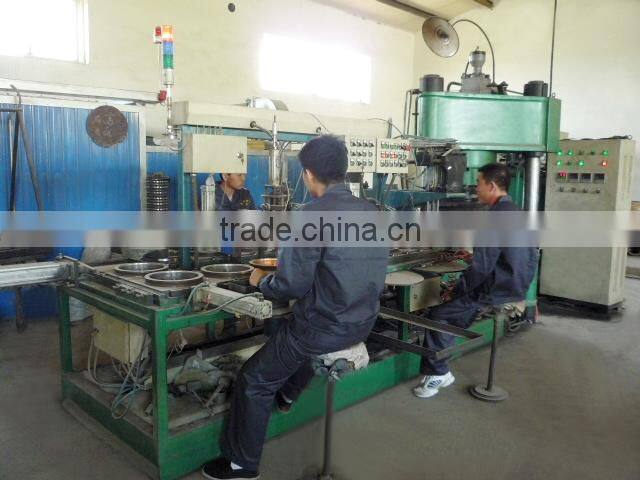

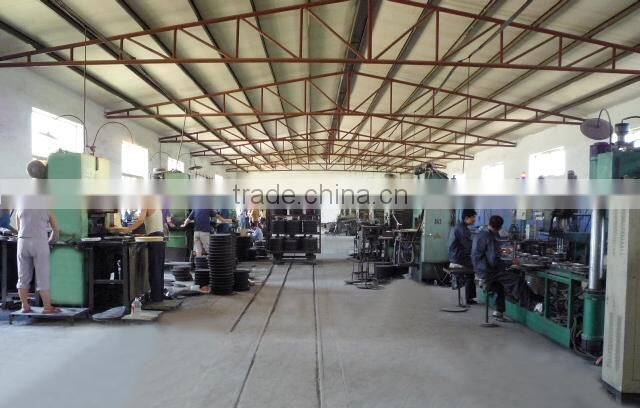

2.Productive process

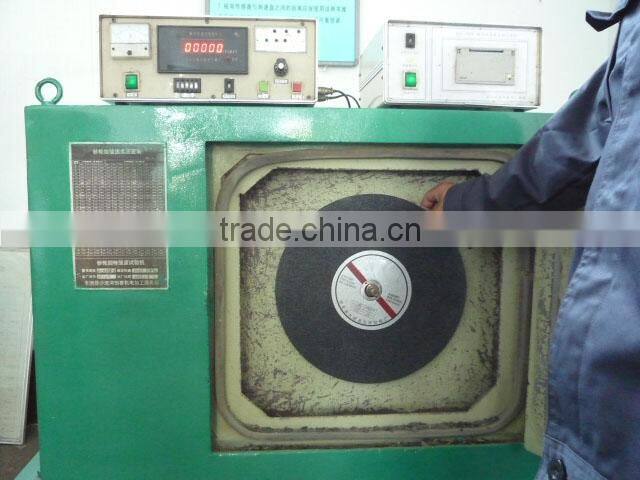

3.Test room
