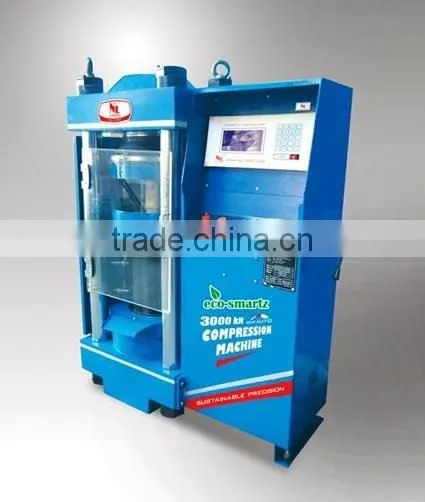

ECO-SMARTZ Digital Compression Machine 3000 kN
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Selangor, Malaysia
Brand Name:
NL Scientific
Model Number:
NL 4000 X / 012
Payment & Shipping
Payment Methods:
Port of Shipment:
Port Klang
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Selangor, Malaysia
Brand Name
NL Scientific
Model Number
NL 4000 X / 012
Specifications
ECO-SMARTZ Digital Compression Machine 3000 kNCompression & Flexural
Newly upgraded model with brand new outlook. Old AC motor replaced by new imported DC motor for more durability, low noise pollution, low oil temperature & low power consumption. Extra improvement on safety featured with fully protection cover & piston travel protection switch cover.
FEATURES:-
*Energy saving up to 70% compared with old version
*Less vibration & noise
*Auto result saving up to 450 specimen
*Simple operation system
*Fully covered safety enclosed
Technical Specifications :~
| Standard | EN 12390-4, ASTM C39, AASHTO T22 |
| Max. Vertical Clearance | 415 mm |
| Max. Horizontal Clearance | 360 mm |
| Capacity | 3000 kN x 0.1 & 1.0 kN Sensitivity |
| Compression Platen Diameter | 295 mm |
| Piston Ram Diameter | 310 mm |
| Piston Ram Travel | 80 mm |
| Column Diameter | 80 mm |
| Product Dimension | 630 (L) x 990 (W) x 1280 (H) mm |
| Packing Dimension | 730 (L) x 1090 (W) x 1500 (H) mm |
| Approx. Product Weight | 1100 kg |
| Approx. Packing Weight | 1200 kg |
| Power | 220 V, 2.5 Amp, 50 / 60 Hz, ½ ph |
Unit Consists Of :~
| Model Number | Parts Description | Qty |
| NL 4000 X / 004 – P 001 | Standard Distance Piece Ø 250 x 50 mm | 1no. |
| NL 4000 X / 004 – P 002 | Standard Distance Piece Ø 250 x 100 mm | 2nos. |
*1 Copy of Manual Instruction
Optional Accessories :~
| Model Number | Accessories Description |
| NL 4000 X / 002 – A 005 | 100 mm Cube Lower Platen Piece |
| NL 4000 X / 012 – A 002 | Block Test Compression Platen Set (510 x 320 x 55 mm) |
| NL 4000 X / 002 – A 008 | Thermo Printer Paper (3 rolls / pack) |
| NL 4000 X / 012 – A 001 | Extended Base Compartment |
| NL 4000 X / 002 – A 010 | Portable Flexural Test Device |
| NL 4008 X / 001 – P 001 | 100 kN Hydraulic Flexural Frame |
| NL 4012 X / 001 | Split Tensile Test Device |
| NL MMP – 100 | Mini Micro Printer c/w Cable |
