Field inspection pocket vane tester
Standard: ASTM D2573

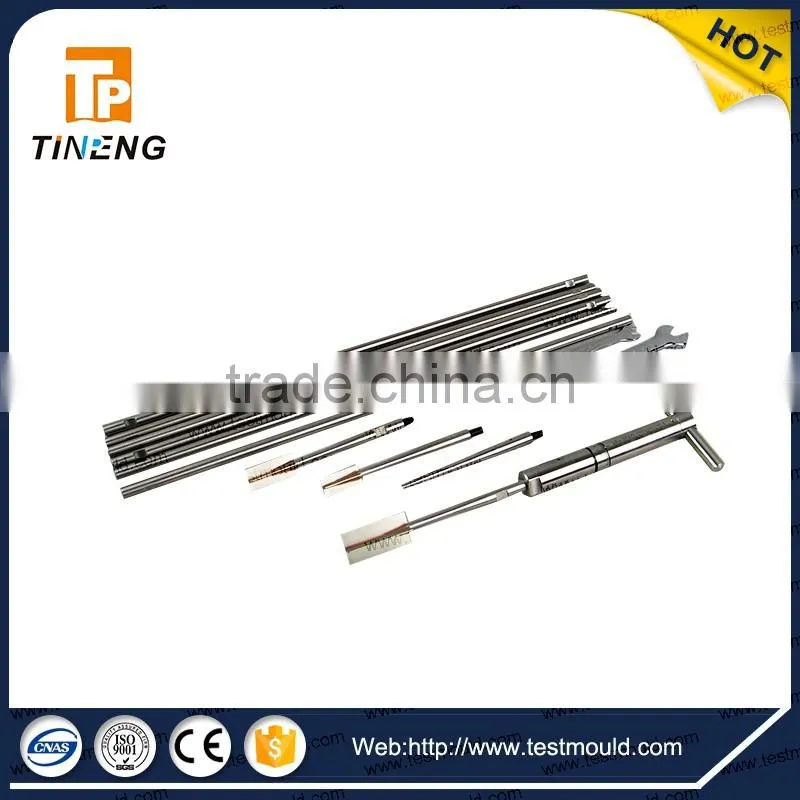

This tester, designed to measure the undrained shear strength (Cu) of cohesive soils, consists of a cylindrical body with a torsional spring and three interchangeable vanes of different sizes used depending upon the expected strength
of the soil.
The vanes have the following dimensions:
- small size 32x16 mm (height x dia.)
- medium size 40x20 mm (height x dia.)
- large size 50.8x25.4 mm (height x dia.).
101.6 x 50.8 mm (height x dia.).
The height/diameter ratio of all vanes is 2.
During operation the vane is driven for 10 cm into the soil and then turned with the handle. Deep measures (i.e. on the top of undisturbed samples) can be obtained using the extension rod 16-T0174
Vane dimensions (height x dia.): 32x16 mm; 40x20 mm; 50.8x25.4 mm; 101.6 x 50.8 mm
Measuring range: 0 to 260 kPa
Torque value: 5 N·m
Extension rod: included
Max deepth: 3 m
Spare parts:
16-T0174/1 Spring torque meter 1 pcs
16-T0174/2 Extension rod 6 pcs
Vane 4 pcs
16-T0174/31 32x16 mm(height x dia.)
16-T0174/32 40x20 mm(height x dia.)
16-T0174/33 50.8x25.4 mm(height x dia.)
16-T0174/3 Vane rod 1 pcs
16-T0174/4 Spanner 3 pcs
