Specifications
1,non sparking safety tool2,L:335,543mm
3,material:al-cu be-cu,stainless steel,carbon steel
4,ISO9001 2000 UKAS
5,L/C,T/T

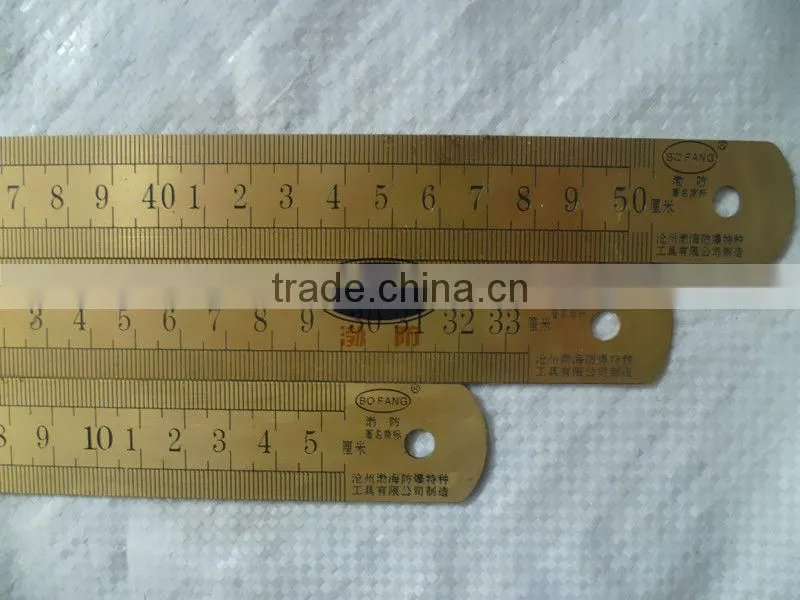

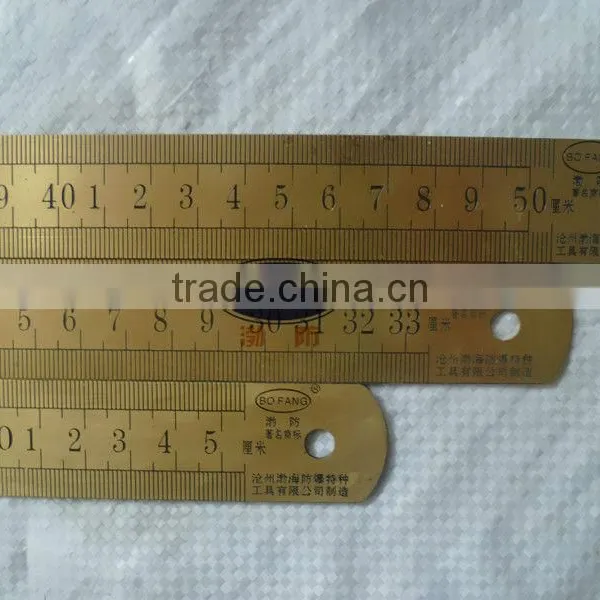

non sparking safety tool ruller
1.The processing procedure
Al-bronze (HRC≥25°b>75-85kgf/mm² )
Be-bronze(HRC≥35°b>105-120kgf/mm²)
1) To prepare the raw material, blanking
2) Smelting
3) Pouring
4) Cut the water gap
5) Stored in the semi finished products warehouse
6) Punching
7) Through the drawbench or slotting machine
8) PE plain end and chamfering
9) Drill hole
10) Perfect the product and marking
11)If Be-bronze, need heat treatment
12) Polishing
13) Surface treatment
14)Stored in the finished products warehouse
2.What is a "non-sparking" tool?
"Non-sparking", "spark reduced", "spark-resistant" or "spark-proof" tools are names given to tools made of metals such as brass,
bronze, Monel metal (copper-nickel alloy), copper-aluminum alloys (aluminum bronze), or copper-beryllium alloys (beryllium bronze).
Commonly used hand tools are often manufactured of steel alloys. Preferred "non-sparking" metals have less tensile strength
than steels usually used to make tools. A lower tensile strength means the metal has less strength or resistance to tearing apart
when stretched under test conditions. It also means that these tools are softer, wear down more quickly than ordinary steel tools,
and have to be dressed more frequently.
3.Explosion-proof tools technology parameters
1. Beryllium bronze explosion-proof tools explosion-proof performance
(a) Standard code: GBEx II C
(b) Hardness: HRC35 above
(c) Tensile strength: 105-120 KGF/mm²
(d) Magnetic: 0
2. Aluminium bronze explosion-proof tools explosion-proof performance
(a) Standard code: GBEx II B
(b) Hardness: HRC25 above
(c) Tensile strength: 75-85 KGF/mm²
4.Surface treatment
1.Zinc galvanization
2.Chrome treatment
3.Black finished
4.Electrostatic spraying
5.Quality
The products are made of choice of material so we assure you of the top quality
6.Package
Cases , wooden cases or as to your requirements . It is not only fashionable and attractive but also strong enough for long voyage
7.Company strength
-Experience: over 30 years
-Price: always reasonable based on high quality.good quality ,best price.
-Quality: high quality, national and international quality standard
-Function: cushion grip, easy to handle, low maintenance cost, rust protection
-Delivery: punctual, always try to be faster
-Service: quick, caring, faithful, responsible
8.The main products of our company are as follow:
Name | Material | Scale | Expot | Technical process | Surface treatment |
Non sparking tool | Al-Cu,Be-Cu | Small oil depot,oil refinery,transfer stations,gas production plant,drill crew,sevice station,chemical industry,petroleum industry,power generation and so on | Middle east,europe,south africa,southeastern asia | Charge mixture,pull the end of hole,revised neck,throw neck,ball blast,smelting,casting,bore a hole and so on | Zine,chrome,blacking treatment and so on |
Non magnetic tool | Be-Cu,Stainless steel | Magnetic scale | As above | forging | Adove |
Special tool | 45#steel,40Cr | As hardware tool scale | As above | forging | above |
9.Compay view
(1) Testing Center
(2)Production Line
Your success is our business
