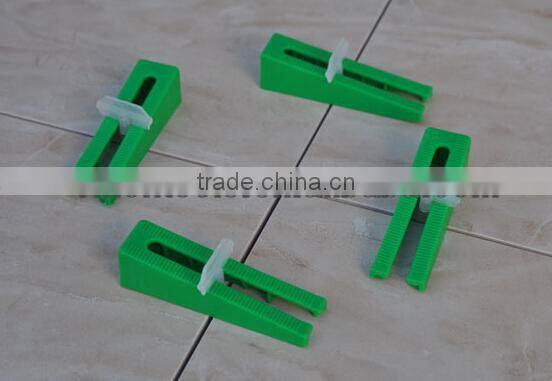

Tile Levelling system


1. different colors are availble.

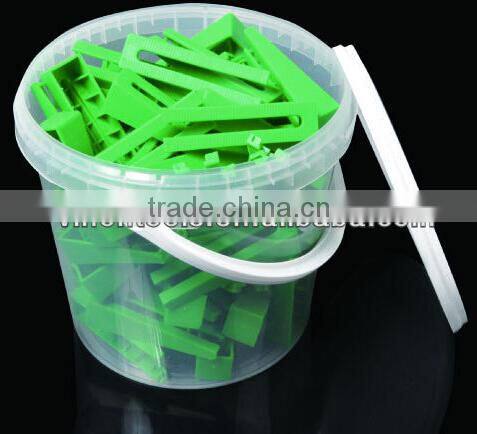

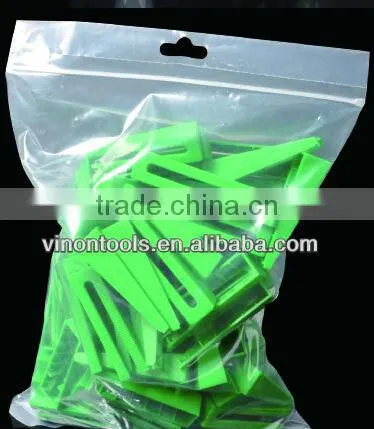

2. different package for choice

3. size: L85 X W22 X H21mm

4.new PP material, enviroment-friendly

How to set the support:

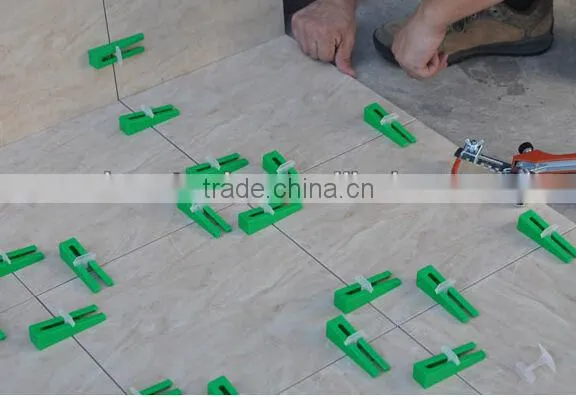

1. After having spread the adhesive, insert the clip (base/support) underneath the tiles and along the 4 sides.
2. According with tiles size, set one or more clips on every side of the tile.
3. Set the tile and beat it with a rubber mallet.

How to insert the wedge:
1. Insert the wedge in the clip (base) slot paying attention not to pass the breakpoint.

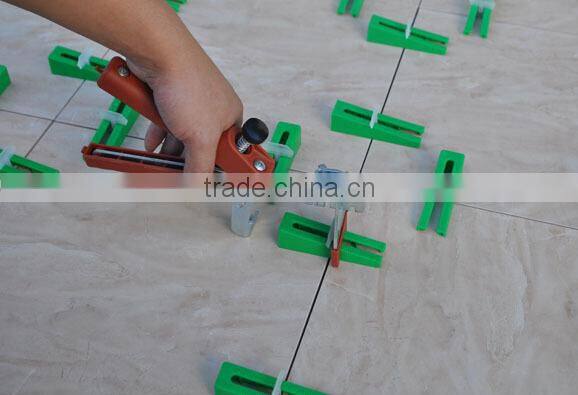

2. To facilitate this operation, the use of the special traction-adjustable-pliers is recommended.

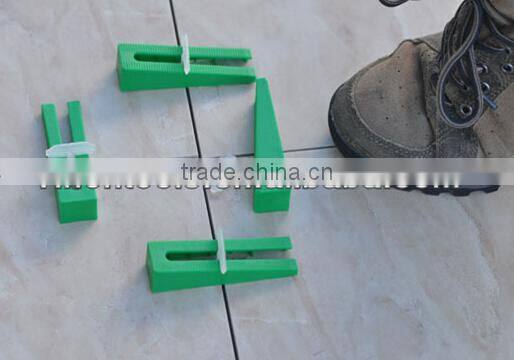

How to removed the support:
Once the adhesive is set, the protruding part of support, has to be removed by separating it from the clip/base. This can be done with a rubber mallet or even with feet. Beat parallel to the joint.
