Hydraulic excavator mounted vibro hammer ripper for breaking

FOB Price

USD $20,000 - $150,000 / Set

1 Set(Min.Order)

Supply Ability 150 Set / Sets per Month
Port Shanghai Port Ningbo Port and any port you required
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	RAY
Model Number	RVR60		After-sales Service Provided	Overseas service center available

Product Description

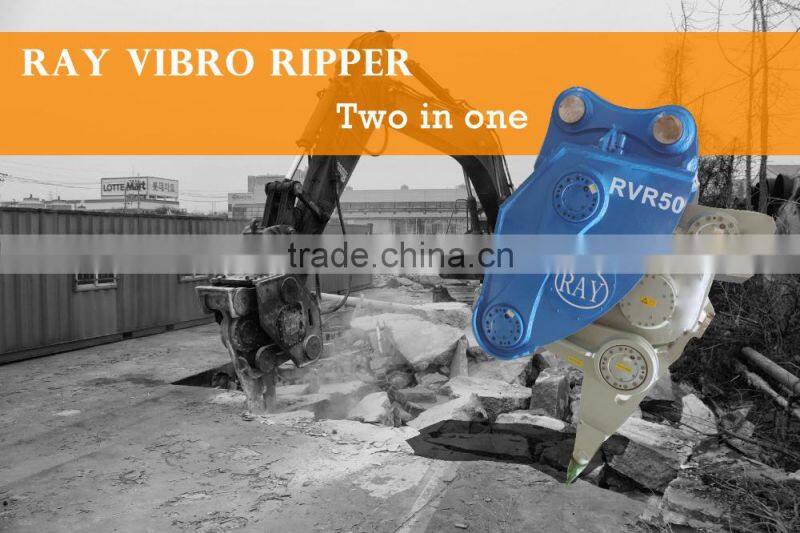

Hydraulic excavator mounted vibro hammer ripper for breaking

It’s a new generation attachment recently developed and manufactured to effectively excavate, crush and destroy the soft rock mass such as rocks weathered by wind and water, hard soil, slate, quartz, concrete and Asphalt.

Vibro ripper makes light work of ripping the soil to make excavation productive and easier. Practically no modification is required to switch from working on land to water. Also, inexpensive easily replaceable wear tool is provided for economical operation, this can be changed according to the strata to be ripped.

Enhance 3-5 times higher output (compare with regular breaker equipment)
Reduce synthesize fuel consumption
Reduce unit output emission load
Work under water and subsurface without refit (Vibration casing is )
Minimum damage to excavator's bumps and arms (protect excavator)
Enhance comfort level during operate
Minimum operating noise (working noise is only 50-75 db)
Lower maintain
Lower vulnerable part cost
Enhance parts and full equipment working life

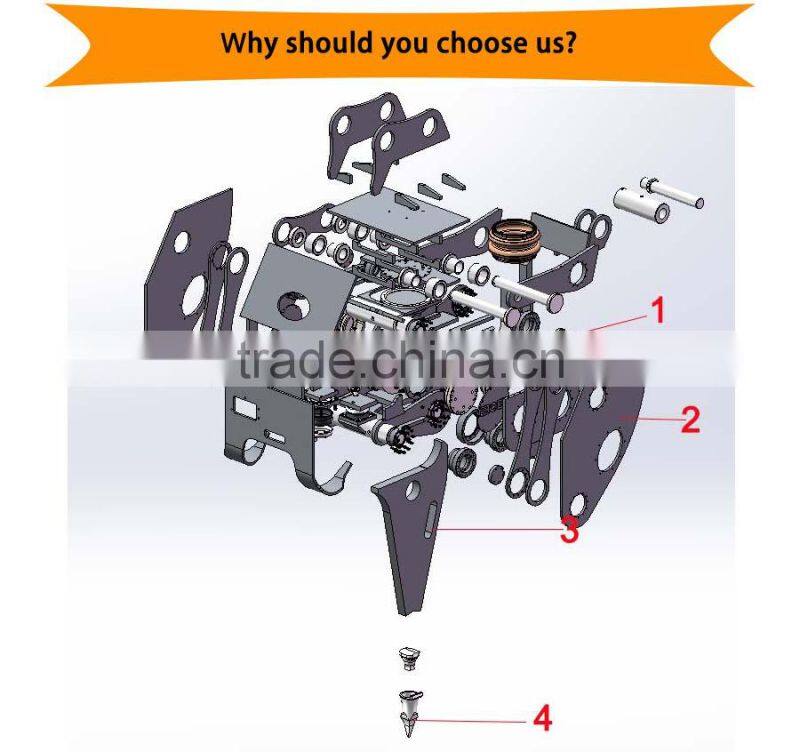

1. Import motor from Germany and France. The quality is reliable and more efficiency.

2. The traditional suspension method used the rubber to damping. It will restrict the vibrational frequency . But we used the Level vibration case to avoid this situation.

3. The prestress reduce point to reduce the impact force to protect the body case.

4. Wear-resistant steel teeth. The root is imported. It is durable.

The leading technology in the global market

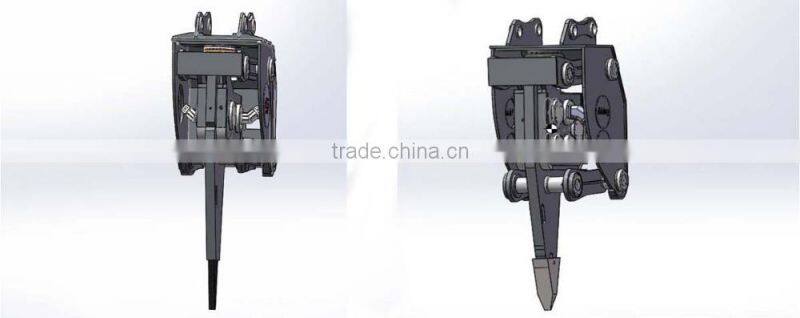

Coaxial double motors Superposition type double motors

Extra spare parts for free

1. Bucket teeth: 2 pieces

2. Air spring: 2 pieces ,

3. Damping device: 1 piece

4. Common tools: a few of pieces

5. Thermometer: 1 piece

6. Inflation device: 1 set

Rich experience

1. Make sure of the weight of your excavator.

Type		RVR-20	RVR-30	RVR-50	RVR-60	RVR-E6	RVR-E7
Excavator(T)		15-20	22-26	30-33	36-45	50-60	70-100
Working flow(L/min)		150-180	150-200	160-250	260-295	290-350	290-360
Working pressure(Mpa)		220-240	230-240	230-250	240-260	240-260	250-280
Size	Length	1350mm	1500mm	1550mm	1650mm	1750mm	1750mm
	Width	950mm	1200mm	1250mm	1250mm	1250mm	1250mm
	Height	1800mm	2500mm	2750mm	2750mm	2850mm	3200mm
Weight(Kg)		2300	2850	4300	5500	6200	8500
Hose size(G)		3/4	1	1	11/4’	11/4’	11/4’
Impact power(KN)		251	278	500	580	710	800
Impact frequency(Hz)		25-30	25-30	25-30	25-29	25-29	25-29
Used for		Use for some of exacavate and dismantle works also can work for arenaceous clay and ice breaking.	Wider working areas, can work for loose rock,some stand stone,city roadbed,and thicker feozen earth.	Design for some big earthwork and some stone mine.It has special effects on shale, fault fracture zone and some decomposed rock.	At some big earthworks areas, we used to have got a score ate 150 cubes per hour(sand rock). Wide working scopes,and could take some place of blast work.	Biggish type viber, design for mining, used to have 3800 cubes(22 hours)per day output to replace blast work)	Biggest type viber in the world at the moment. It can break the rock over 8 level.Empoly the most adcanced vibration technology, match on 80~100T excavators.

RVR-30 with Komatsu220: the daily quality for red sand rock is 800-1000CBM. It’s 2-3 times than 140 breaker.

RVR-50 with Hitachi350: the daily quality for Sandstone is about 1200CBM. It’s 2 times than 140 breaker.

RVR-60 with Komatsu450: the daily quality for red sand rock is about 1500CBM. It’s 2-3 times than 155 breaker.

RVR-60 with Sany460: the daily quality for Limestone is about 2300CBM. It’s 3 times than 165 breaker.

RVR-60 with Komatsu470: the daily quality for sandstone or limestone is 3000-3800CBM. It’s same with blast.

2. Make sure of the material of the stone.

Mohs’ hardness reference table
SV-15 SV-20	1-3 hardness level standard mineral: Talc, Gypsum.
SV-30 SV-40	3-4 hardness level standard mineral: Red sand rock, Fluorite.
SV-50 SV-60	5-6 hardness level standard mineral: Apatite, Syenite
SV-70 SV-80	7-8 hardness level standard mineral: Quartz, Topaz
Not recommended level	9-10 hardness level standard mineral: Marble, Adamas

If you are not sure the material you can take photos and send to us. We will help you to find the most suitable model.

Or write your needs on the below box and click "SEND" we will reply at once.
