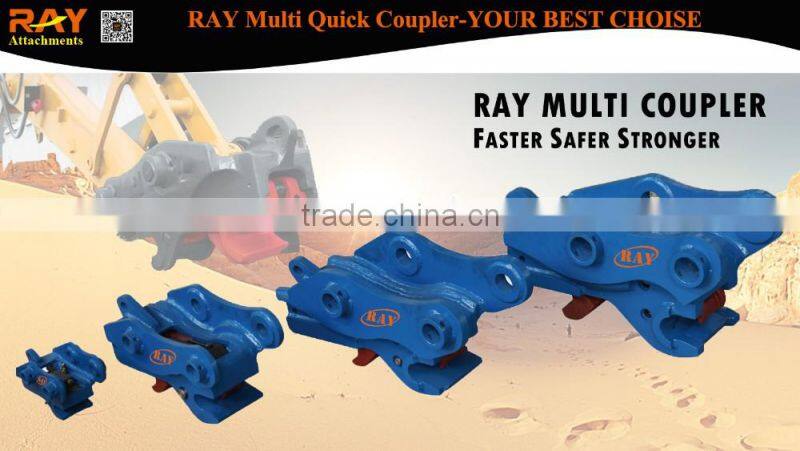

hydraulic faster multi quick hitch,multi-couler for excavator

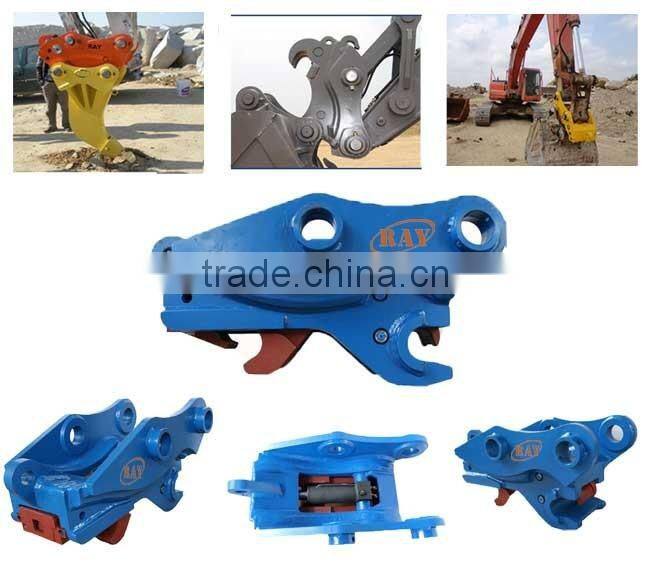

RAYATTACHMENTS Multi Quick Coupler is suitable for the excavator rapid installation, switching various attachments (bucket, ripper, hydraulic breaker, hydraulic shear, etc.). It can enlarge the scope of use of the excavator, and can save time and improve efficiency. They are designed and manufactured with our customers needs in mind and are safe, versatile and easy to use. Our quality products will reduce costly downtime and give you greater power and productivity.
RAY multi coupler has mechanical locks on both the front and rear attachments pins to ensure that they remain securely attached in the event of loss of hydraulic pressure or the operator accidently knocking the switch inside the cab. This means a secondary mechanical backup system is in place that is completely independent of the hydraulic circuit. Our couplers also have hydraulic check valves in the solenoid and cylinder as standard.
Details

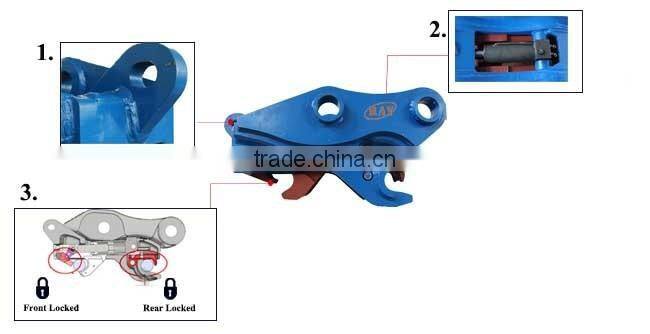

Advantages
1.Lifting Eye Large lifting eye, with SWL certification to individual weights
2.Single Cylinder Design – totally enclosed piston rod,no external pipes, eliminating the risk of damage.
3.Front Pin Lock Featuring a full lock on the front pin, this lock ensures full security on first contact. As soon as the coupler comes in contact with the front pin, it automatically locks on eliminating the pick-and-place of attachments
Rear Pin Lock This lock eliminates any danger of the ram releasing and dropping the attachment, therefore ensuring both front and rear pins are continuously locked into place. This font jaw has a large amount of movement allowing for large pin centre pickup range
12 month after-sale service. Factory price.
Specification
| RAY Multi Coupler Specification | ||||||||||
| Model | Unit |
RQH01D (a) |
RQH01D (b) |
RQH02D |
RQH04D (a) |
RQH04D (b) |
RQH06D (a) |
RQH06D (b) |
RQH08D (a) |
RQH08 (b) |
| Carrier | T | 1~2 | 2~4 | 4~6 | 4~6 | 6~8 | 10~15 | 10~15 | 15~27 | 15~27 |
|
Pin diameter (C&D) |
mm | 30 | 35/40 | 45 | 45 | 50/55 | 60 | 65 | 70/80 | 80/90 |
|
C-to-C distance (E) |
105~140 | 170-210 | 215~250 | 255~290 | 262~320 | 367~425 | 355~420 | 375~435 | 425~485 | |
|
Arm width (A&B ) |
110~125 | 145~180 | 185~220 | 250~270 | 320~340 | 320~340 | ||||
|
Oil pressure |
Bar | 40~248 | 40~248 | 40~248 | 40~248 | 40~205 | 40~205 | 40~205 | 40~205 | 40~205 |
| Oil flow | L/min | 10~20 | 10~20 | 10~20 | 10~20 | 10~20 | 10~20 | 10~20 | 10~20 | 10~20 |
| Hose | Inch | 1/4 | 1/4 | 1/4 | 1/4 | 1/4 | 1/4 | 1/4 | 1/4 | 1/4 |
| Height | 210 | 200 | 295 | 300 | 335 | 400 | 405 | 465 | 480 | |
|
lifting eye Rating |
T | 1 | 2 | 3 | 3 | 4 | 8 | 8 | 12 | 12 |
| Safty: | RAY Multi Coupler Auto Dual-Lock Mechanism meets Australian and New Zealand Standard AS4772-2008. | |||||||||
| Lifting eye: |
Lifting mechanism is closed and arranged so that addidental unhooking for load cannot occur. |
|||||||||

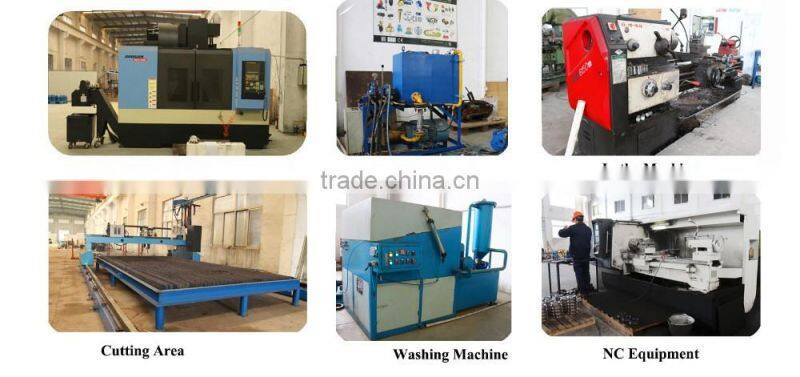

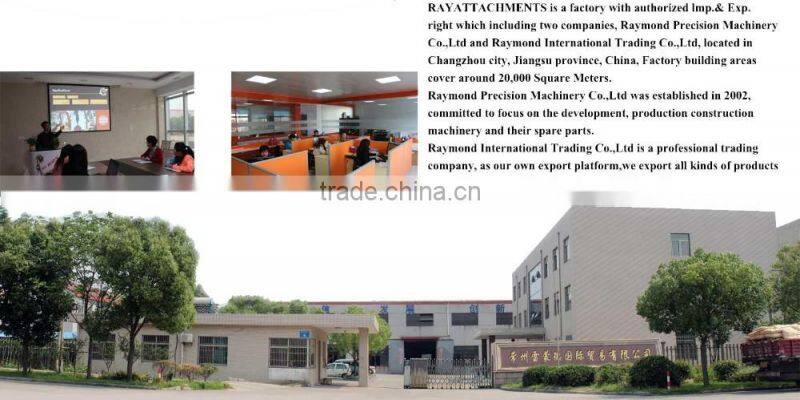

Factory and equipments
