Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Engineering & Construction Machinery Parts > Excavator Hydraulic Scrap Handling Equipment Grab

Excavator Hydraulic Scrap Handling Equipment Grab

Name: Excavator Hydraulic Scrap Handling Equipment Grab
Brand: RAYMOND
SKU: 143193928
Availability: InStock

Excavator Hydraulic Scrap Handling Equipment Grab thumbnail-1

Excavator Hydraulic Scrap Handling Equipment Grab photo-1

US$ 3,000 - 8,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

RAYMOND

Model Number:

RHG06

Contact Supplier Request Quote Chat Now

Changzhou Chuangcheng Precision Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name RAYMOND

Model Number RHG06

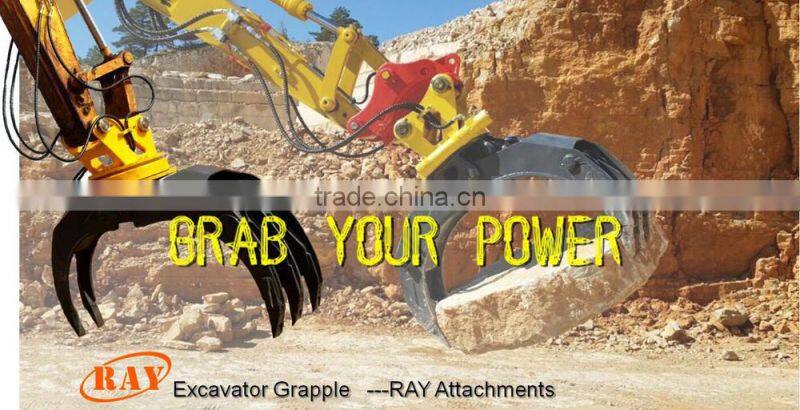

RAY excavator grapple :Apply to grab wood,stone,gravels,waster metals,industry waste,construction garbage and daily rubbish.
1.How to choose what you need?
You can choose what you need according to specification sheet as below.

Model	unit	RHG03	RHG04	RHG06	RHG08	RHG10	RHG14	RHG20
Carrier	ton	4-6	7-11	12-16	17-23	24-30	31 -40	41-50
Weight	Kg	240	390	740	1380	1700	1900	2100
Jaw opening	mm	1300	1400	1800	2300	2500	2500	2700
Working pressure	Kg/cm²	110-140	120-160	150-170	160-180	160-180	180-200	180-200
Setting pressure	Kg/cm²	170	180	190	200	210	250	250
Oil flow	l/m	30-55	50-100	90-110	100-140	130-170	200-250	250-320
Cylinder	ton	4.0 x 2	4.5 x 2	8.0 x 2	9.7 x 2	12 x 2	12 x 2	14 x 2
* This specifications are subject to change without prior notice for the improvement of quality.

You can also give us information as below

Tell us waht you want to grab,like woods,stone,industry waste or other things.
Give me model of your excavator
Give me statistic of Arm width,pin size, pin center to center

2.Why should you choose our grapple?
Product Features

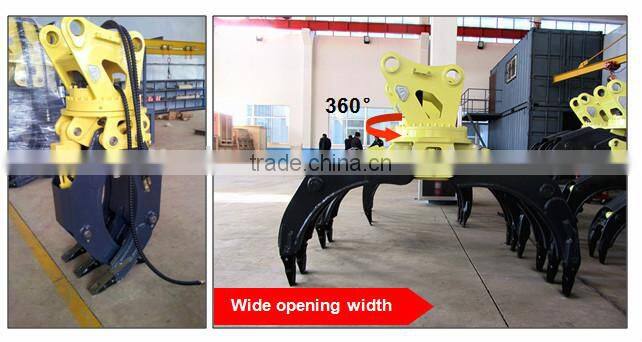

wide opening width with light weight, outstanding performance in handling the iron bar, maximize the operation efficiency with light weight.

Unlimited clockwise and anti-clockwise 360 degree rotatable.

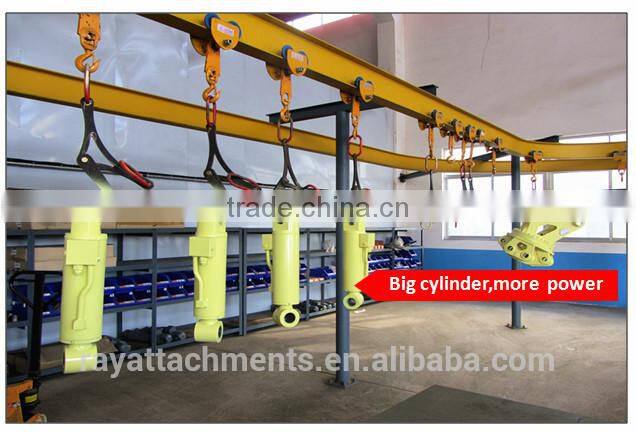

Special designed swing bearing for durability and big cylinder for more power.

Check valve is embedded for better safety ,shock value enclosed for better safety from damage.

Wear resistant special solid steel is used and no extra reinforcement is requirement.

Flexible choices dependend on job environment.

Operator can control the rotating speed.

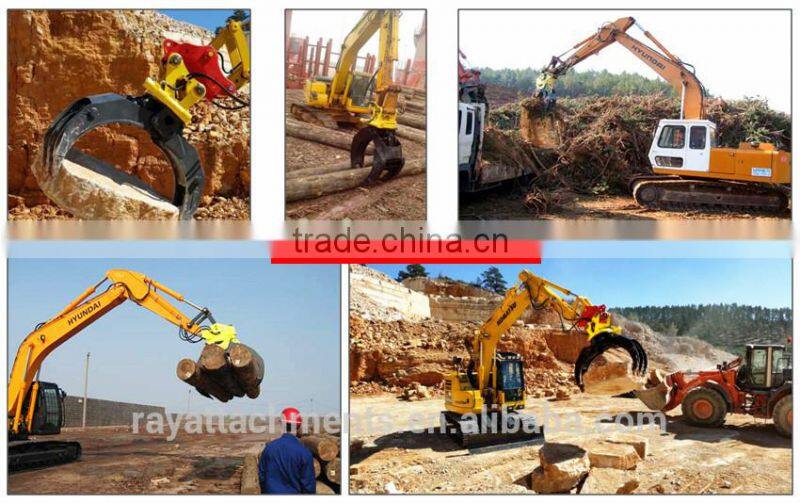

Versatile applications including handling of stones, pipes, disposable waste, landscaping works and many others.

Minimized hydraulic trouble which may occur during rotating works.

3. why should you choose our company?
RAYMOND is a factory with authorized Imp.&Exp. right which including two companies,
Raymond Precision Machinery Co.,Ltd and Raymond International Trading Co.,Ltd.

13 years experience in producing and servicing
We will attend the CTT 2015, the 16th International show of construction equipment and technology held in Moscow, Russian Federation on June 2,2015.

FAQ
1.What’s your payment terms?
Trade terms:T/T,L/C,cash
