Prouct Introduction
1.HW crawler hydraulic drilling rig, using a new hydraulic technology, low consumption, large rotary torque,move the hole and shift the position is convenient.
2.The drilling rig structure is compact, it has a telescopic compensation function when promoting the slide carriage, the slide carriage supported on the ground when drilling, the drilling stability is very good.
3.The drilling rig is mainly used for piling anchoring, well ,photovoltaic solar rotating pile and water conservancy, power plants, open-air mining, road construction and other stonework blast hole drilling and so on.
Technology Parameters
| Technical Parameters | ||||
| 1 | Model | HWZGX-600L | Remark | |
| 2 | Hammer Model | 390 | this is hammer model , weight :200KG | |
| 3 | Pile length | 0-6000 | mm | |
| 4 | Bolt height | 5.2 | m | |
| 5 | Duplex gear pump pressure | 20 | Mpa | |
| 6 | Duplex gear pump displacement | 40 | ml/r | |
| 7 | Hydraulic system pressure | 20 | Mpa | |
| 8 | Main valve flow | 120 | L/Min | |
| 9 | Overall Machine weight | 6 | T | |
| 10 | Diesel engine power | 80 | KW | |
| 11 | Rated Speed | 2400 | R/min | |
| 12 | Starting Voltage | 24 | V | |
| 13 | Rotation angle | 360 | ° | |
| 14 | Rotation semi diameter(rotating shaft to Pod distance) | 1925 | mm | |
| 15 | Effective press pile stroke | 0-3000 | mm | |
| 16 | Dimension(LXWXH) | 4650×2150×2700 | mm | |
| 17 | Track shoe | 350 | mm | |
| 18 | Walking motor total displacement | 1575 | ml/m | |
| 19 | Walking motor rated pressure | 18 | Mpa | |
| 20 | Walking motor output torque | 4300 | N.M | |
| 21 | Walking motor rotate speed | 50 | r/min | |
| 22 | Press Pile Diameter | 0-600 | mm | |
| 23 | Drilling Depth | 0-6000 | mm | |
| 24 | Operating Speed (m/min) | 1.5 | 90s/per pile | |
| 25 | Number of impacts / strokes per 1 minute | 900 | times/min | |
| 26 | Maximum lengh of Piles to be rammed | 6 | M | |
| 27 | Walking speed | 5-10 | Km/hr | |
| 28 | Gradeability | 0-35 | ° | |
| 29 | Oil tank capacity | 200 | L | |
| 30 | Hydraulic tank capacity (L) | 500 | L | |

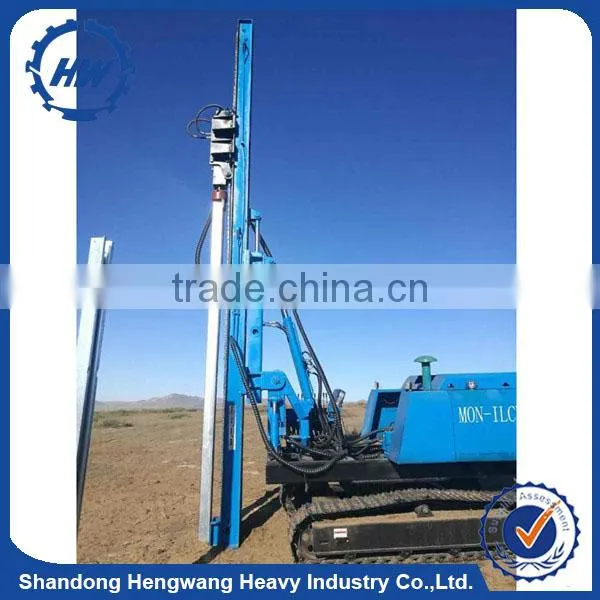

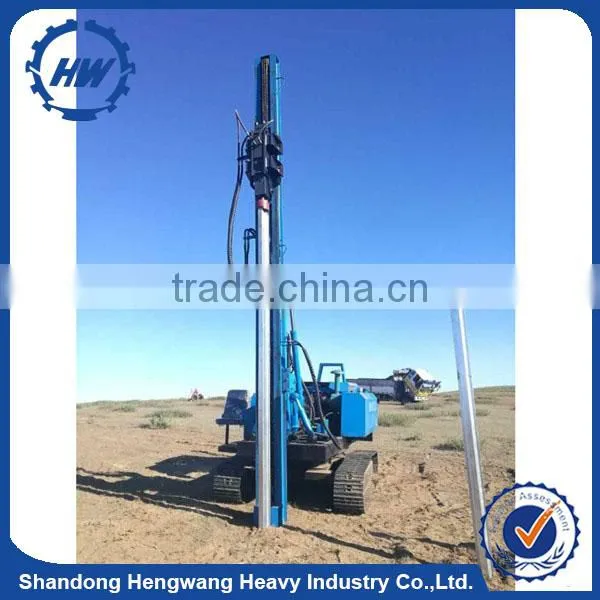

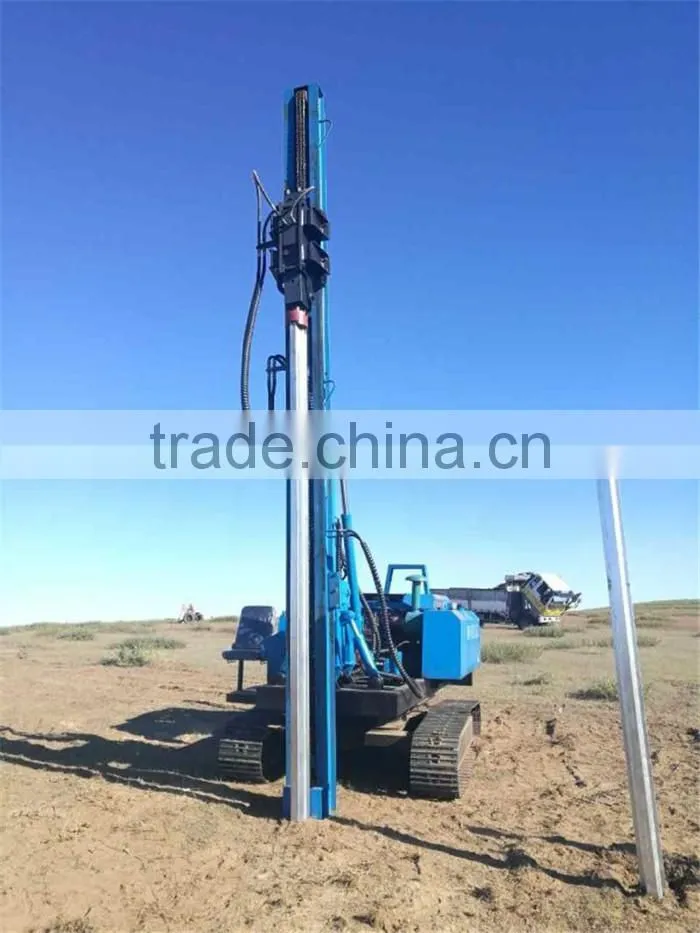

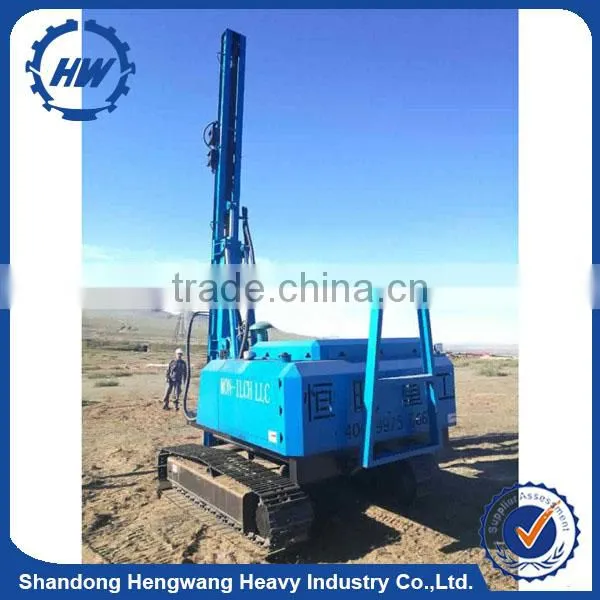

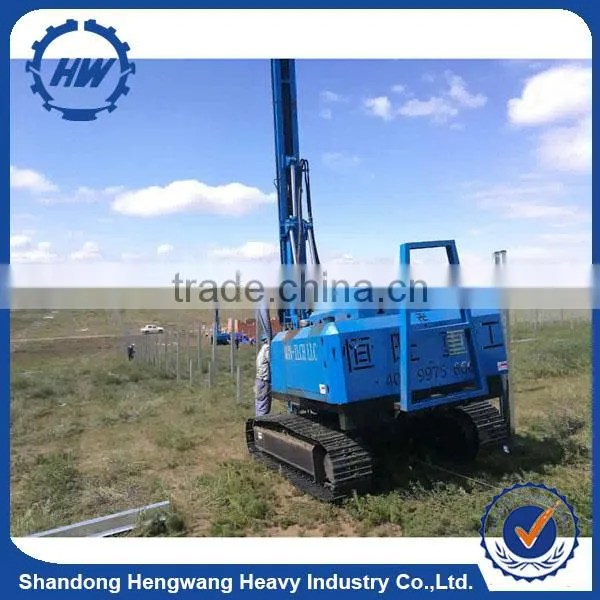

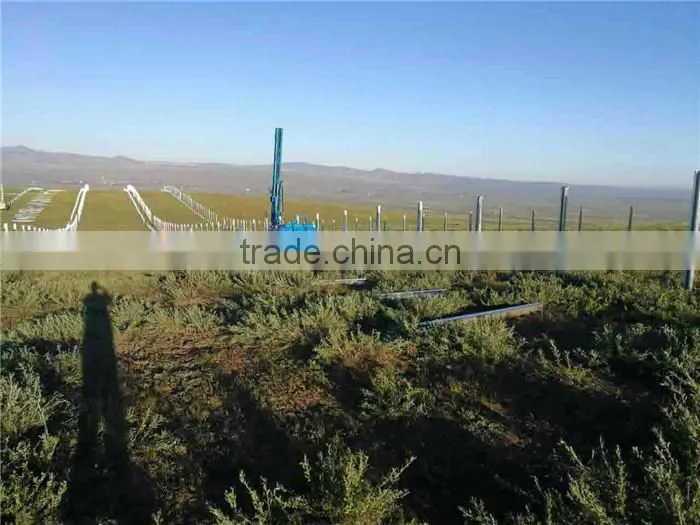

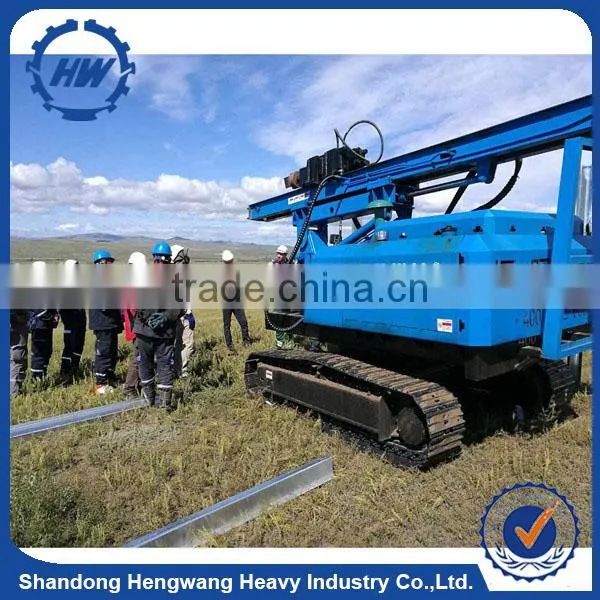

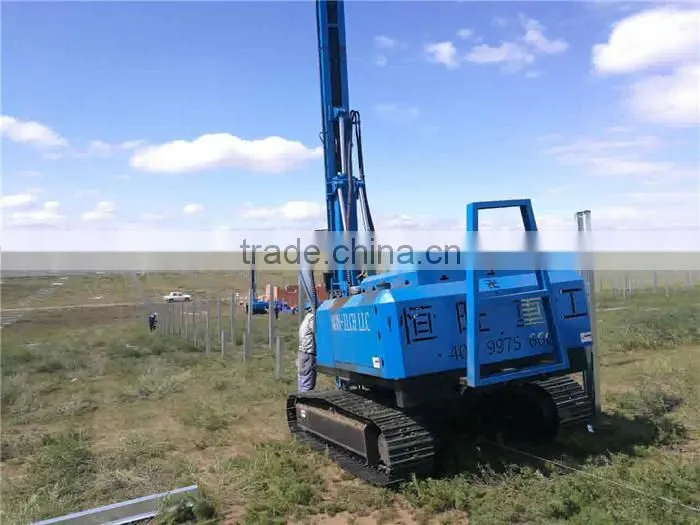

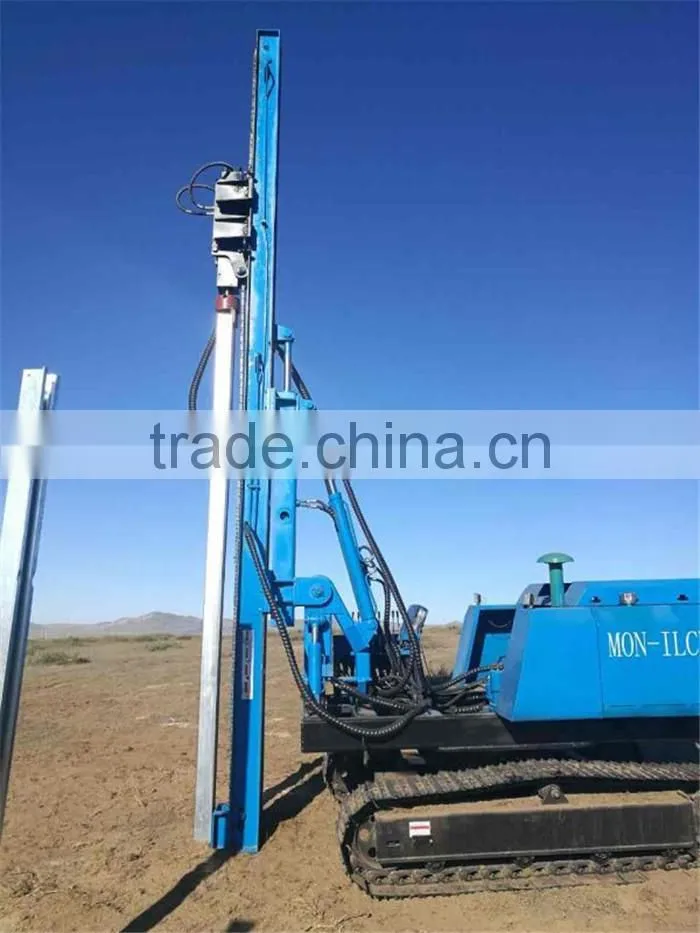

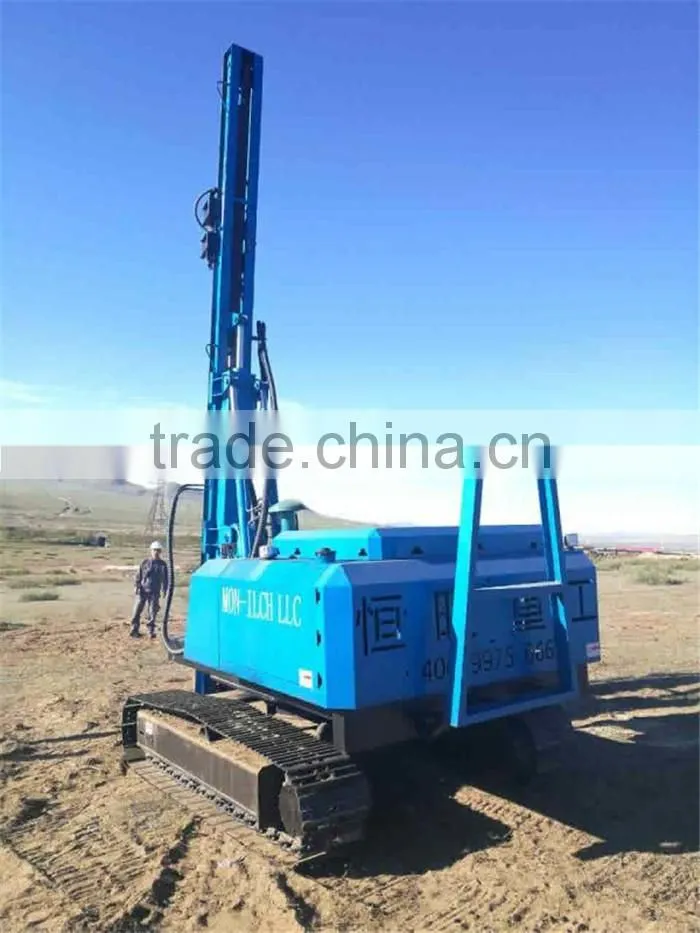

PILE DRIVER PHOTOS

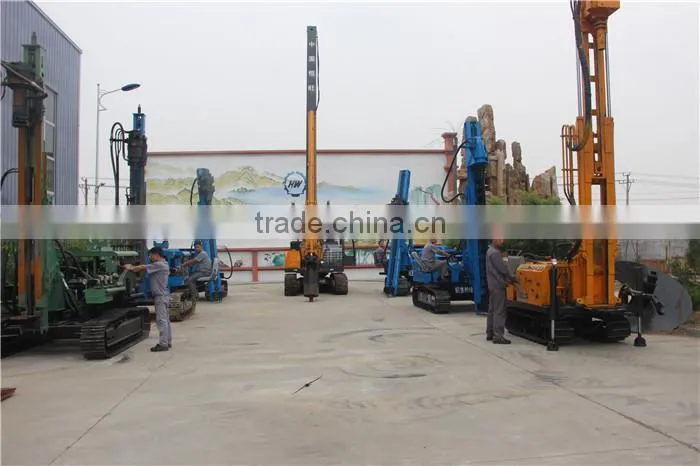

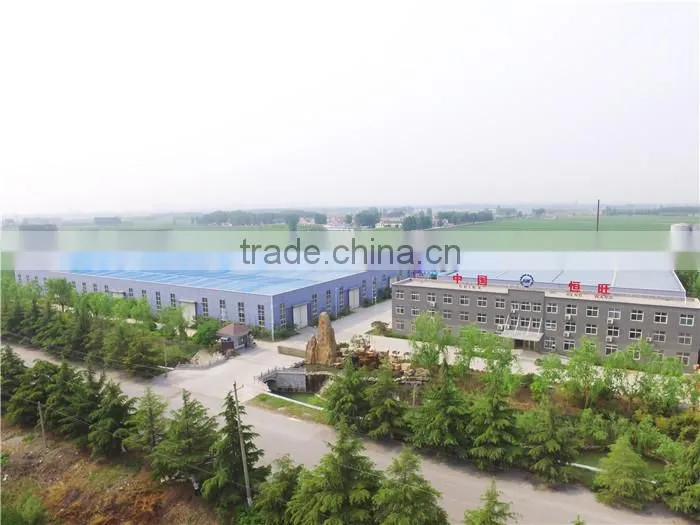

Our factory
Quality Certificate
