0.5T Self-Loading Mini Dumper With Hydraulic System
US$ 2,000 - 3,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
HW
Model Number:
HW500
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Agriculture Machine Self-Loading Gasoline Mini Track DumperUS$ 2,000 - 3,000MOQ: 1 Set -
Self-Loading Mini Dumper/Chinese Mini Loader Dumper/Power BarrowUS$ 2,000 - 3,000MOQ: 1 Set
-
HW500 Mini Dumper Manufacturers Self-Loading Mini DumperUS$ 2,000 - 3,000MOQ: 1 Set
-
Best Price China Mini Garden Crawler Loader Mini Dumper for SaleUS$ 2,000 - 3,000MOQ: 1 Set
-
Construction Equipment Rated 1Ton Hydraulic Transmission Mini Dumper PriceUS$ 2,000 - 4,000MOQ: 1 Set
Condition
New
Brand Name
HW
Model Number
HW500
Place of Origin
Shandong, China
Type
Mini Loader
Moving Type
Crawler Loader
Dimension(Long * Breadth * High)
2021*695*1220mm
Rated Load
500kg
Certification
CE ISO
Warranty
1 Year
After-sales Service Provided
No overseas service provided
Product Description
0.5T Self-Loading Mini Dumper With Hydraulic System Introduction
13HP Briggs&Stratton Engine
Walk behind operating
695mm width only,can enter into narrow space
500kg load capacity
Self-loading bucket for choice
High-lifting device for choice
0.5T Self-Loading Mini Dumper With Hydraulic System Parameter
Total Height (H) | 1220mm | |||
Max Lifting Height | 1719mm | |||
Max Dump Height | 1447mm | |||
Dump Angle | 57degree | |||
Wheelbase | 515mm | |||
Total Length without self-loading bucket | 2021mm | |||
Total Length with self-loading bucket | 2421mm | |||
Departure Angle | 10degree | |||
Axles base | 862mm | |||
Total Width | 695mm | |||
Min Turning Radius R | 820mm | |||
Engine (Briggs&Stratton) | Rated Power | 9.6Kw (13HP) | ||
Rated Speed | 3000 rpm | |||
Fuel | gasoline | |||
Noise | <=80 | |||
Hydraulic Pressure | 16Mpa | |||
Flow Rate | 20L/min | |||
Hydraulic oil tank volume | 19.4L | |||
Load capacity | 500kg | |||
Hopper capacity | 0.31cbm | |||
Self-loading bucket capacity | 0.04cbm | |||
Speed | 0-3.5km/h | |||
Operating weight | 600kg or 800kg | |||

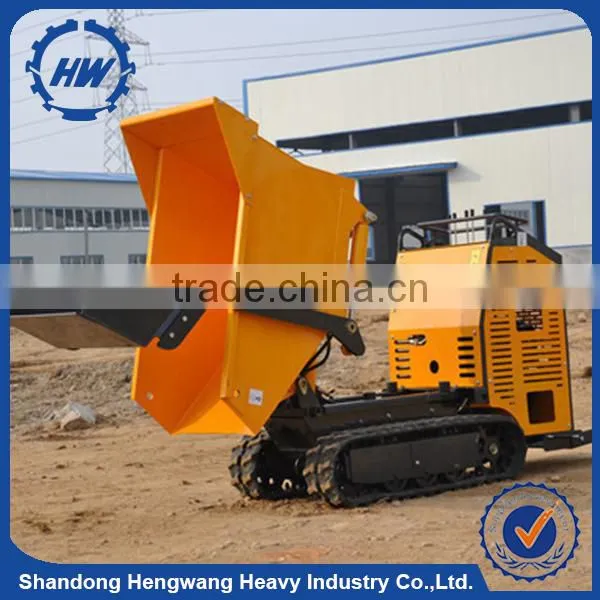

0.5T Self-Loading Mini Dumper With Hydraulic System Photos
