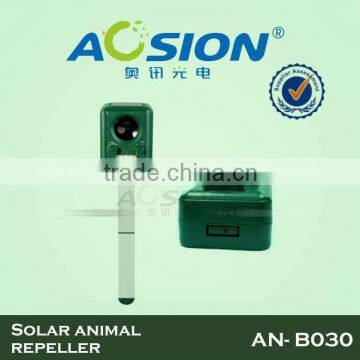

Scare Away Bird (AN-B030)

1. CE&RoHS certificates
2. Eco-friendly
3. Passive infared

Working Principle:
The solar animal repeller  is an effection way to help rid your gardens of univited  animal visitor.it combiness a sophisticated PIR detection system that detects movement and triggers shors bursts of poweful  ultrasonic sonic sound waves and flashing strobe lights.

Applicability:
Passive infrared bird repeller is suitable for garden, yard, farms, orchard and so on.

OPERATION
- A strong ultrasonic signal frighten animals. The animals avoid the area because of its unpleasant ultrasonic sound. The sound is activated when an animal enters the range. Thus, animals can not get used to the sound, and the repulsive effect is stronger.

- A strong flashing scared animals. The strong flashing is activated when an animal enters the range, then the animals will be scared and give back.

WHERE TO PLACE THE DEVICE

1. Regarding to the linear propagation characteristic of ultrasonic waves, please installing this device to direction of animals invading in, which will have a better effect.

2. When installing this device, please choose a place where the solar parts of the top can get as long time sunshine as possible, and avoid the obstacles to block the sunshine. If there is dust or besmirch on the solar panel, please wipe them off to ensure the high efficiency of photoelectric conversion.

3. Fix the spike stake on the unit, Plant the unit into the ground at the place that seems more favorable.

You will feel a little hard to connect the spikes for the first time, which is normal. After using for several times, it will be easy to install them, so do not use external force to hammer the top of products. When selecting the installation place, please choose a suitable terrain to ensure water won't dip the USB interface (see chart) in bad weather conditions, so as to avoiding damage to the product.

4. The back of device has the hang hole, you can hang up the device to the place that you want frighten animals.

SETTINGS
- Button "SENS" (Left): Is for adjusting sensitivity and distance. By turning the knob clockwise, you increase the range of protection. To repel small animals, turn the knob up to the right.
- Button "FREQ" (Right): Frequency control. By turning the knob clockwise, you increase the frequency.
Button "FREQ" Position:

- 0: OFF
- 1: 13.5kHz-17.5kHz Repels animals such as mice, small rodents ...
- 2: 15.5kHz-19.5kHz Repels animals such as large dogs, foxes ...
- 3: 19.5kHz-23.5kHz Repels animals such as small dogs, cat, bird...

- 4: Strong flashing

- 5: All functions working, sweep frequency from mode 1 -- mode 2 -- mode 3, and turn on strong flashing. This is the best function as it is will cover all the functions of the device.

Important: To change a setting, you must always start from OFF position and then go directly to the function you need. If you want to change the setting, you always have to restart from Off position. (Ex. if you go from 5 to 3 directly, the frequency the result will be different from the real 3 position).

Battery protection

1. When to use the product for the first time, please use up the power of battery (included in the device or bought by yourself).When the power is not enough, the red light of low voltage indicator will keep on flashing, then please connect the device to a USB output interface (computer, cell phone chargers, MP3, etc) via the USB line attached with the device. After fully charged, the red indicator will always be on), and when the product is in low power again, please charge again.

Due to transportation, warehousing, and distribution time vary, when to use it initially, the power of rechargeable battery will be fully charged soon, that’s a normal phenomenon. This charging process had better repeat 3 times or so, and then the battery will have a better effect

2. If new rechargeable battery or battery in the product stowed for a long time (more than one month), it is normal for rechargeable battery to be fully charged soon. It needs 3-5 times charging to activate this battery, and then it becomes normal to use. If the batteries which have been used for a long time can be charged fully very soon, it means you need to change the batteries.

3. If new rechargeable battery or battery in the product stowed for a long time (more than one month), it is normal for rechargeable battery to be fully charged soon. It needs 3-5 times charging to activate this battery, and then it becomes normal to use. If the batteries which have been used for a long time can be charged fully very soon, it means you need to change the batteries.

4. If the battery cannot be use for a long time, please replace 3 pieces 1.2V AA rechargeable batteries (Ni-Cad or Ni-MH) in the battery case. The better quantity the batteries are, and the bigger capacity the batteries are, the effect of the product will be better.

5. Please deal with the abandoned batteries according to the local laws and regulation. Don’t throw them away optionally.

TECHNICAL DATA
Power supply: 3 rechargeable batteries (recharged by solar panel or USB line)
Infrared sensor angle: 110 degrees
Detection range: 8 to 9 meters depending on animal size (For largest animal, increase the range).

ADDITIONNAL INFORMATION RELATIVE TO ULTRASONICS:

The ultrasonic is really powerful to scare efficiently. It happens that human can hear part of its range (Young people and children). So put the device as far as possible from human life place to avoid annoyances.

Don't install this device in a children and baby playing ground area.
