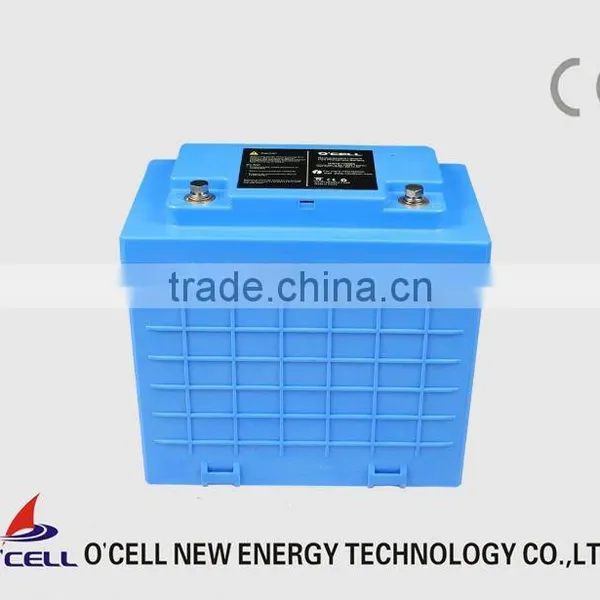

12V120Ah LiFePO4 Battery for Replacement of Lead Acid Battery

Name: 12V120Ah LiFePO4 Battery for Replacement of Lead Acid Battery
Brand: OCELL
SKU: 143103308
Availability: InStock

Negotiable MOQ: 10 Packs (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

OCELL

Model Number:

IFM12-1200E2

Ocell New Energy Technology Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name OCELL

Model Number IFM12-1200E2

Type Li-Ion

Components Other, lifepo4

Size L260*W158*H246mm

Voltage 12.8V

Weight 15.1Kg (33.3 lbs)

Nominal Capacity 120Ah

Application lead acid battery replacement

Specifications

Steady power output;
Longer service life;
Easy to recover;
No acid leak;
Lightweight;

Specification
No.	Item	General Parameter	Remark
1	Rated Capacity	120Ah	Standard discharge(0.2C)after standard charge(0.1C)
2	Minimal Capacity	110Ah	Standard discharge(0.2C)after standard charge(0.1C)
3	Nominal Voltage	12.8V
4	Cycle Life	Residual capacity is more than 60% of the rated capacity	1. Charge: 0.1C constant current to 14.6V, then CV till current to 0.05 C 2.Rest: 30min. 3. Discharge: 0.2 C to 10.0V 4. Repeat 800cycles Temperature:20±5°C
5	Discharge cut-off voltage	9.0V	10.0V (recommended)
6	Charging cut-off voltage	15.6V	14.6V (recommended)
7	Assembly method	IFR18650EC-1.5AH	4S79P
8	Housing material	ABS+PC
9	Standard charge	0.1 C constant current (CC) charge to 14.6V,then constant voltage (CC)14.6V charge till charge current decline to less than 0.05 C	Charge time : Approx 14.0h
10	Standard discharge	Constant current 0.2 C,Cut-off voltage 10.0V
11	Maximum Charge Current	24A	Heat will accumulate inside, 12A or less recommended for better performance and life
12	Continuous Discharge Current	25A	Pulse current 40A (10S)
13	Operation Temperature Range	Charge: 0~55°C	60±25%R.H.
13	Operation Temperature Range	Discharge: -10~60°C	60±25%R.H.
14	Storage Temperature Range	Less than 1 year : 0~25°C	60±25%R.H.
14	Storage Temperature Range	Less than 3 months:-5~35°C	at the shipment state
15	Approx. Weight	15.1Kg
16	Dimension	Height: 260 mm	Female-threaded terminals: M8*1.25, build-in PCM
		Width: 158 mm
		Length: 246 mm
17	Balancing function	Yes
18	Short Circuit Protection	Yes	Will recover after recharge
