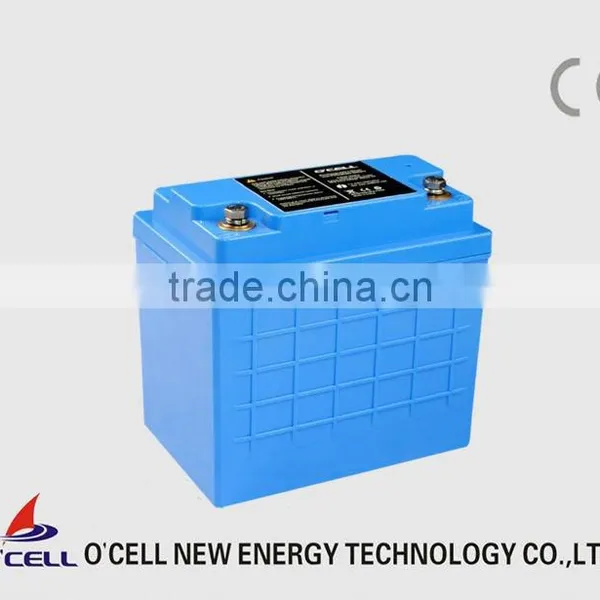

18V30Ah LiFePO4 Battery

Name: 18V30Ah LiFePO4 Battery
Brand: OCELL
SKU: 143103160

Negotiable MOQ: 10 Packs (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Hubei, China

Brand Name:

OCELL

Model Number:

IFM18-300E2

Ocell New Energy Technology Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hubei, China

Brand Name OCELL

Model Number IFM18-300E2

Type Li-Ion

Nominal Voltage Other, 18V

Size Other, 195*130*183

Nominal Capacity 30Ah

Specifications

UL approved cells; Qualified built-in BMS; Robust housing(U1R group);

Specification

No.	Item	General Parameter	Remark
1	Rated Capacity	30Ah	Standard discharge(0.2C)after standard charge(0.2C)
2	Minimal Capacity	28Ah	Standard discharge(0.2C)after standard charge(0.2C)
3	Nominal Voltage	19.2V
4	Cycle Life	Residual capacity is more than 60% of the rated capacity	1. Charge: CC@ 0.2C to 21.9V, then CV till current to 0.05 C 2. Rest: 30min. 3. Discharge: 0.2C to 15.0V Temperature:20±5°C Carry out 1200cycles
5	Discharge cut-off voltage	≥ 12.0V (2.0V/cell)
6	Charging cut-off voltage	≤ 23.4V (3.9V/cell)
7	Assembly method	IFR18650EC-1.5AH	6S20P
8	Housing material	ABS+PC	Flame Retardant Plastic
9	Standard charge	0.2C constant current(CC) charge to 21.9V,then constant voltage (CV)21.9V charge till charge current decline to ≤0.05 C	Charge time : Approx 7.0h
	Standard discharge	Constant current 0.2C Cut-off voltage 15.0V
11	Maximum Charge Current	15A
12	Continuous Discharge Current	20A	Over-current: 50±10A 70~90ms
13	Operation Temperature Range	Charge: 0~55°C	60±25%R.H.
13	Operation Temperature Range	Discharge: -10~60°C	60±25%R.H.
14	Storage Tem	Less than 1 year : 0~25°C	60±25%R.H.
14	erature Range	Less than 3 months:-5~35°C	at the shipment state
15	Approx. Weight	5.6Kg
16	Dimension	L195W130H183mm	Terminals: M6 female-threaded , build-in smart BMS
17	BCI Group Number	U1R
18	Specific Energy	84Wh/Kg
19	Energy Density	110Wh/L

OEM & ODM are welcome!
