Help Center36V 9AH Lithium Electric Bicycle Battery
Related Products
Specifications
Lithum battery 36V 9AH water bottle batteryMaterial:LiNiCoMnO
Dimention: 91*419mm
1.stable and safe
2.long cycle

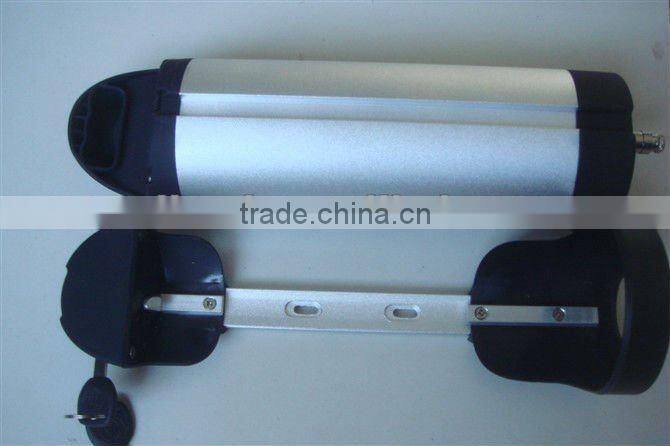

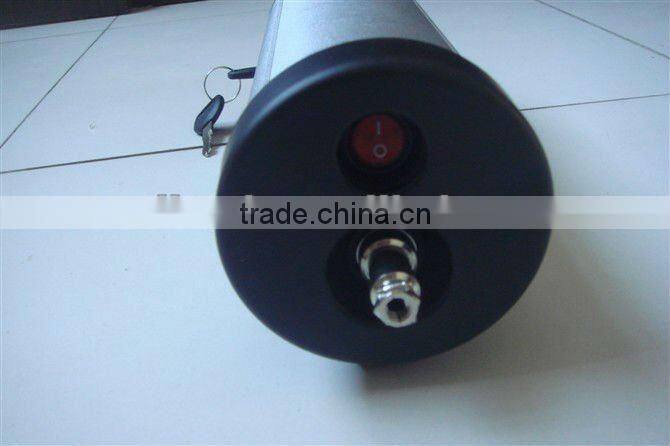

Lithum battery 36V 9AH water bottle battery
Material:LiNiCoMnO
Dimention: 91*419mm
1.stable and safe
2.long cycle
LiFePO4 battery specification:
| NO. | Items | specifications |
| 1 | Charge voltage | 42V |

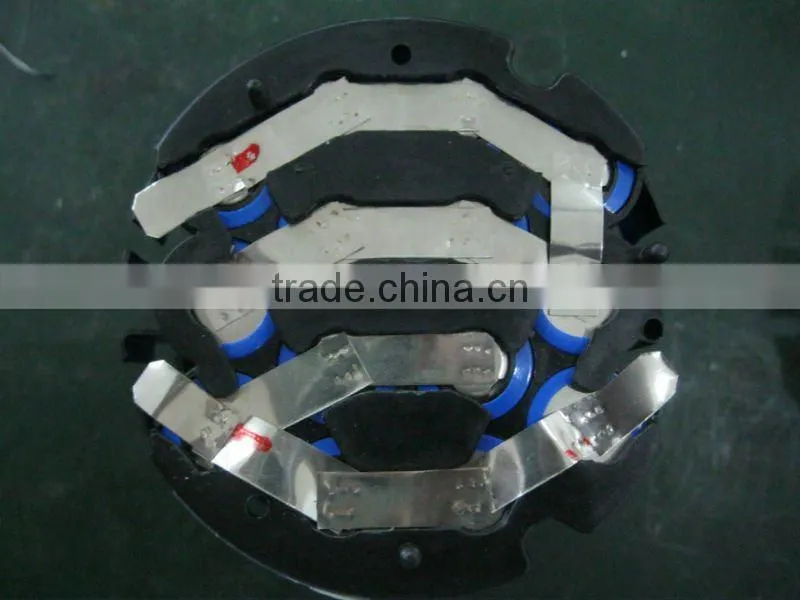

| 2 | Number of series | 10S4P |
| 3 | Nominal voltage | 36v |
| 4 | Norminal capacity | 9AH(0.2C discharge) |
| 5 | Charge current | standard charging: 0.2C |
| 6 | Rapid charge: 0.5C | |
| 7 | Charging time | standard charging:6.0 hours |
| 8 | rapid charge: 3.0 hours | |
| 9 | Max charge current | 0.5C |
| 10 | Max discharge current | 3C |
| 11 | Discharge cut-off voltage | 25.0V |
| 12 | Operating temperature | charging: 0°C-45°C |
| discharging: -10°C-45°C |
BMS Spec
1. Operating current: 10-20A
2. Peak current: 20-30A
3. Charge current: 2A
4. Over-voltage protection: 42V
5. Under-voltage protection: 25V
6. Over-temperature protection: 60°C
Charger Specification:
1. Output:42V DC 2A
2. Input: 100-240VAC (As your country's standard)
Packing List:
1) 1pack 36V 9Ah Lithium Battery (Aluminum Alloy Shell)
2) 1pcs 42V 10A-20A BMS
3) 1pcs 42V2Amps Alloy Charger
4) Key and other parts
Features:
1) Long cycle life
2) Maintenance-free operation
3) Good safety performance
4) Low self-discharge and fast charge
5) Environment friendly
6) High capability and stability
7) Broad operating temperature range: discharge temperature: -20-60°c
24v, 36v, 48V battery with different capacity are available for E-bike, the battery can be customize per customer request.
If you have any question, please feel free to contact Coco Guo.
Attention pls! Plastic case available to protect the bottle battery from shortcut!
