Home > Products > LiFePO4 Battery for Toys/tools & others > 12.8V 7.5 AH LiFePO4 battery pack for backup power
12.8V 7.5 AH LiFePO4 battery pack for backup power
- 10000 Pack / Packs per Month
- Shenzhen Hongkong
- T/T
- 36V9Ah lifepo4 ebike battery pack silver fish style
- LiFePO4 Battery 14500 3.2V 600mAh for Lawn LED lighting
- LiFePO4 Battery 24V 40Ah, lithium ion 24V 40Ah, for vehicle, scooter
- LiFePO4 Battery 24V10Ah lithium ion 24V 10Ah for golf trolley, lithium battery for golf chart
- 36v LiFePO4 electric bike battery with pvc cover
- LiFePO4 Battery 24V 10Ah, for Electric Bicycle and Power Supply, 24V lithium ion battery
Product Details
Brand Name: | O'CELL | Model Number: | IFM12-75E2 | Composed Type: | Other, 4S5P |
Type: | Li-Ion | Components: | Other, LiFePO4 | Size: | W*94*H65*L151mm |
Voltage: | 12.8V | Weight: | 1.05kg | Nominal Capacity: | 7.5AH |
Application: | UPS |
Packaging Details
Standard export package
Product Description
12V7.5AH LiFePO4 battery
1,Ultra-Longer Lifecycle-2000times
2,Lighter Weight,Smaller Size
3,Higher Safety
4,Free Maintenance

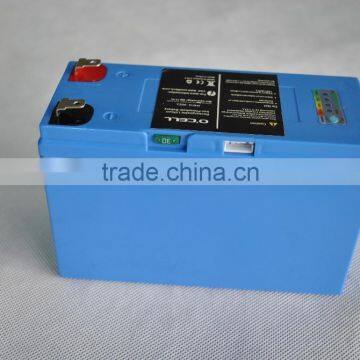

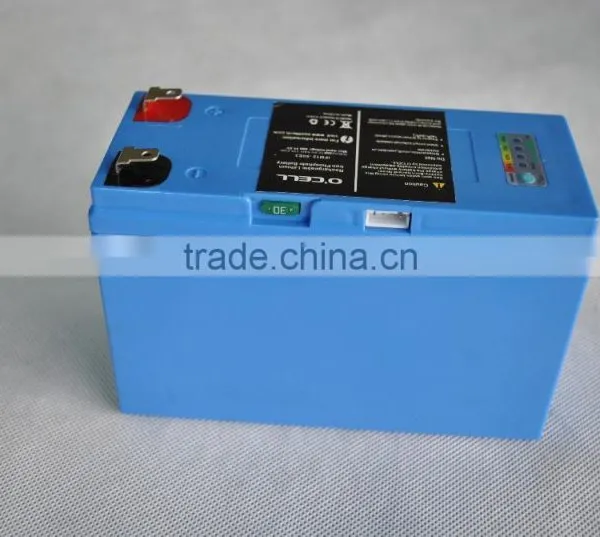

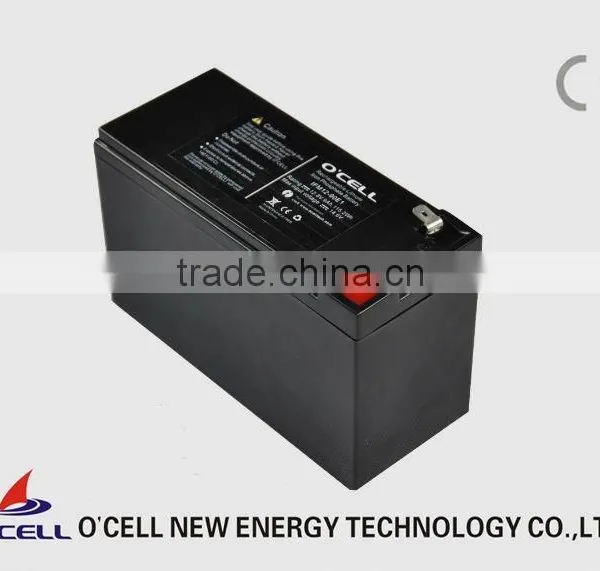

O'CELL 12V7.5Ah LiFePo4 Battery Pack with SLA Case
Usage Notes:
Our 12V7.5Ah battery module, with nominal voltage of 12V and capacity of 7.5Ah is assembled with high power LiFePo4 cells.
It can be used individually and can be connected in serial or parallel to achieve given voltage and capacity.
Features:
a. Extremely safe and stable chemistry: PCB and/or BMS built inside to balance protect the battery.
b. Long life-cycle: Can be circularly used, best can up to 2000 times recycles, 8 times of lead acid battery.
c. Lighter weight, with the best power-to-weight ratio: 1/3 of Lead acid battery weight.
d. Good performance at high temperature and high temperature resistance
e. Low self-discharge rate, less than 3% monthly.
f. No memory effects and highly efficient charge.
g. Environment friendly: Clean and Green energy poses no pollution on our environment.
Spec sheet:
Item | Unit | Specifications |
Nominal Capacity | Ah | 7.5 |
Nominal Voltage | Voltage | 12.0 |
DimensionH×W×L | mm | 151×65×94mm |
Weight | kg | 1.36 |
Charge Cut-off Voltage | Voltage | 14.6 |
Discharge Cut-off Voltage | Voltage | 10.0 |
Charge current | Amps | 7.5 |
Rated Discharging Amperage | Amps | 15.0 |
Maximum Continue Discharging | Amps | 7.5 |
Internal Resistance | mΩ | <15 mΩ |
Working Temperature (Charging) | oC | -10oC--45oC |
Working Temperature (Discharging) | oC | -20oC--60oC |
Relative Humidity | N/A | 45%--75%RH |
Life Cycle(2C,80%DOD) |
| 1000 |
Life Cycle(1C,80%DOD) |
| 2000 |
Warranty | Year | 1 |
Advantage:
1 Ultra-Long Lifecycle
2 Lighter Weight, Smaller Size
3 Higher Safety and Green
4 Maintenance Free
The advantage of LiFePO4 battery:
1. Smaller size, normally 1/3 as conventional SLA battery
2. Lighter weight, normally 1/3 as conventional SLA battery;
3. Longer cycle-lifespan battery is about 300cycles while LiFePO4 battery can be 1200 cycles or more;
4. Good performance in deep discharge, LiFePO4 battery can be 100%DOD while SLA battery is 60%-80%DOD, which means LiFePO4 battery will need less capacity in the same condition;
5. The lead acid battery will be end of life and price will increase.
6. Environmentally friendly of LiFePO4 battery.
Payment:
L/C, T/T, Paypal.
Payment in advance
Company Profile
O'CELL New Energy Technology Co., Ltd., established in Oct.2008, is a high-tech enterprise which involves in research, production, sales and services of qualified Lithium Iron Phosphate (LiFePO4) cell, battery pack, reliable battery management system and one-stop power solution, for a wide range of applications worldwide including HEV, EV, AGV, Solar & Wind Power Generation System, UPS, Lighting, Toys, etc.
O'CELL's manufacturing facilities are ISO9001:2008 and ISO14001:2004 registered. It's products are compliant with CE, RoHS and have passed UN transportation testing, which is required for international transportation of all lithium batteries.
O'CELL people are the engine of our success today and in the future. They are motivated to keep well informed about the most recent technological developments and modernization management. Meanwhile, O'CELL continues to invest in research and development in order to take a leadership role in advanced lithium battery technology.
O'CELL factory covers over than 96,000m2 and bases in Yichang which is famous for Three Gorges and the biggest water power center in the world. Taking the advantage of sufficient electricity, O'CELL will pass the benefit to our customers. O'CELL sincerely expects to cooperate with our customers for mutual benefit and common development. O'CELL also hopes that we can contribute to new energy development and green circular economy.
