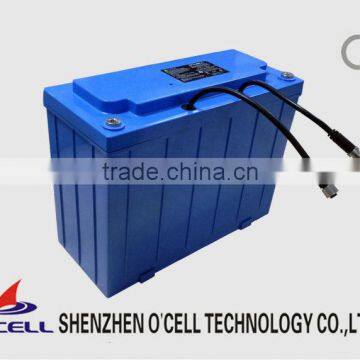

12V 170AH LiFePO4 Battery Pack

12V 170AH LiFePO4 Battery Pack thumbnail-1
12V 170AH LiFePO4 Battery Pack thumbnail-2
12V 170AH LiFePO4 Battery Pack photo-1
12V 170AH LiFePO4 Battery Pack photo-2
Negotiable MOQ: 4 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hubei, China
Brand Name:
OCELL
Model Number:
IFM12-1700E1
Contact Supplier Request Quote Chat Now
Ocell New Energy Technology Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hubei, China
Brand Name OCELL
Model Number IFM12-1700E1
Type Li-Ion
Nominal Voltage 12V
Size Other, 348x156x270 mm
Nominal Capacity 175Ah

12V170Ah LiFePO4 Battery For Electric Vehicle

Features:

1) Smaller size, 1/3 smaller vs traditional SLA battery;

2) 1/3 lighter weight vs traditional SLA battery;

3) 3-5 times longer cycle life vs traditional SLA battery;

4) High and stable output vs traditional SLA battery;

5) Totally environmental-friendly.



Specification:
170Ahr  or  2240Whr  (212PCS  O’CELL  IFR26650EC-3.3Ah  cells  in  a  4S53P
configuration.)
Approx. Dimension    270 mm x 156mm x 348 mm  (L*W*H)
Approx. Weight          21kg
Nominal voltage        12.8V
Maximum voltage      14.6V
Minimum voltage       10.0V
Nominal load current  80A max. continuous current @ 23° C

Peak load current       120A max for 30 sec @ 23° C
Charge protection  When the Battery modules are charged to full, they will communicate with BMU, and
the  BMU  has  the  capability  to  turn  off  the  charger  or  open  the  main  contactor.  The
battery module itself does not have any switch to disconnect the charger.
Balancing  The  intra-module  balancing  circuit  is  used  to  compensate  slight  capacity  imbalance
among the four cell blocks within a battery module.
The  inter-module  balancing  circuit  is  used  to  compensate  slight  capacity  imbalance
between different battery modules in series connection.

Item IFM12-1700E1
Nominal Capacity(0.5C) 170Ah
Nominal Voltage 12.8V
Dimensions Including Terminals (L*W*H) 270*155*347mm
Approximate Weight 21Kg
Terminals, Female-threaded M6*1.25
Specific Energy 84Wh/kg
Standard Discharge Max. Constant Current 80A
Max. Pulse Current (30S) 120A
Cut-off Voltage 10V
Standard Charge Charge Voltage 14.6V
Float Charge Voltage 13.8V
Max. Constant Current 25A
Charge Time 1.5hrs
DC Internal Resistance (Approx.) 15mΩ
Water/Dust Resistance IP56
Temperature  Charge  0°C~45°C
Discharge  -10°C~55°C
Storage  -10°C~35°C



Tag : lifepo4 12v battery, lifepo4 battery 12v
