Golf Trolley Battery 12.8V16Ah With Anderson Plug

Name: Golf Trolley Battery 12.8V16Ah With Anderson Plug
Brand: OCELL
SKU: 143102386

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Type:

Other, Lithium battery

Capacity:

<30AH, 16AH (5P)

Voltage:

Other, 12V, 12.8V (4S)

Ocell New Energy Technology Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen Hongkong

Delivery Detail:

Delivery time depends on order quantity.

Type Other, Lithium battery

Voltage Other, 12V, 12.8V (4S)

Size 82x128x168mm

Brand Name OCELL

Model Number IFM12-160E2

Specifications

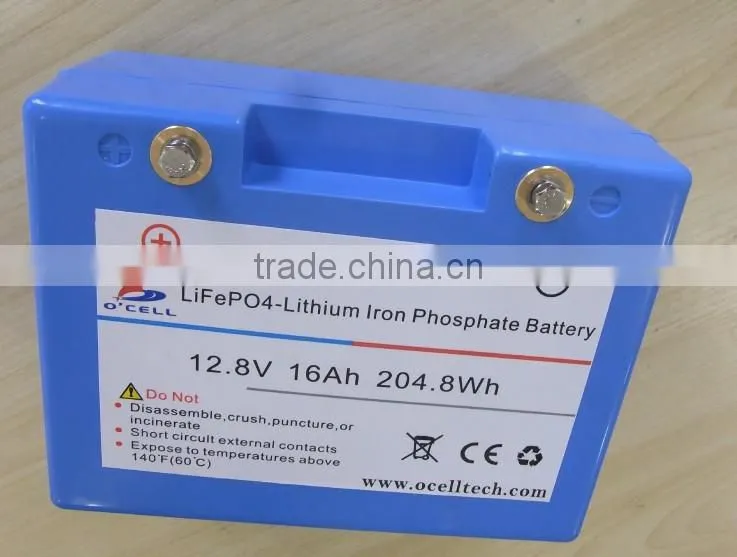

12.8V16Ah LiFePO4 battery with Anderson plug
Light weight, small size, long life cycle, environment friendly.

UN 38.3 certified LiFePO4 battery pack 12V16Ah.

Light weight, small size, long life cycle, high safety

No.	Item	General Parameter	Remark
1	Rated Capacity	16.0Ah	Standard discharge(0.2 C₅)after standard charge(0.2 C₅)
2	Minimal Rated Capacity	16.0Ah	Standard discharge(0.2 C₅)after standard charge(0.2 C₅)
3	Nominal Voltage	12.8V
4	Cycle Life	Higher than 60% of the Initial Capacity of the Cells	Charge: CC @0.2C to 14.6V, then CV till current to 0.05C Rest: 30min. Discharge: 0.2C to 10.0V Temperature:20±5°C Carry out 1800cycles
5	Discharge cut-off voltage	9.2V	10.0V( recommended) 10.0V
6	Charging cut-off voltage	14.8V	14.6V (recommended)
7	Cell and assembly method	IFR26650EC-3.3AH	4S5P
8	Housing material	ABS+PC

No.	Item	General Parameter	Remark
9	Standard charge	0.2C constant c 25A urrent(CC) charge to 14.6V,then constant voltage (CV)14.6V charge till charge current decline to ≤0.05C	Charge time : Approx 7h
10	Standard discharge	Constant current 0.2C Cut-off voltage 10.0V
11	Maximum Charge Current	15A
12	Continuous Discharge Current	15A	Over current 60±5A 9mS
13	Operation Temperature Range	Charge: 0~45°C	60±25%R.H.
13	Operation Temperature Range	Discharge: -10~60°C	60±25%R.H.
14	Storage Temperature Range	Less than 1 year : 0~25°C	60±25%R.H. at the shipment state
14	Storage Temperature Range	Less than 3 months:-5~35°C	60±25%R.H. at the shipment state
15	Weight	Approx: 2.25Kg
16	Max.Dimension	High:168mm
		Width: 82mm
		Length: 128mm
