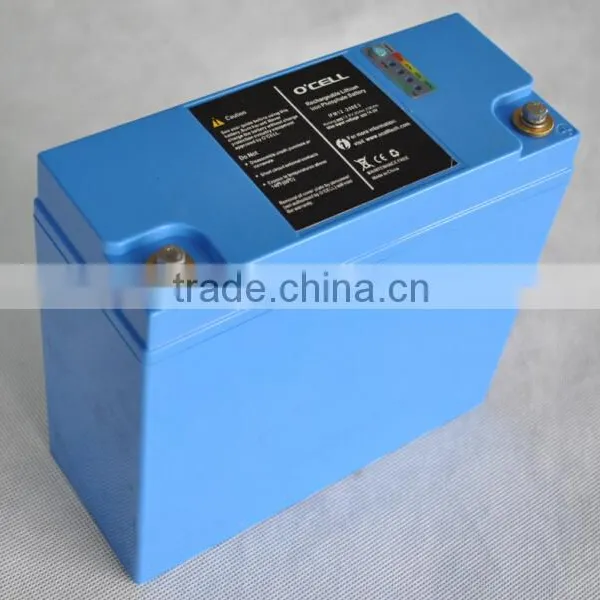

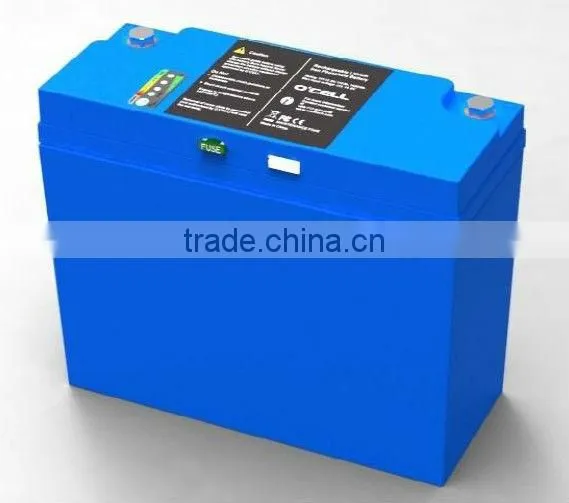

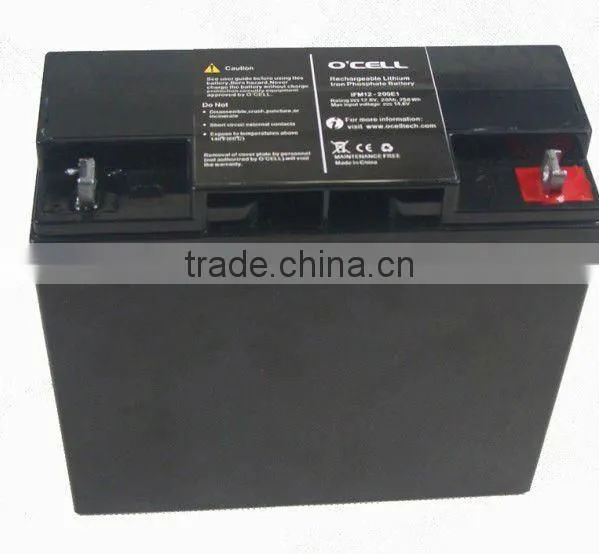

Help CenterHigh Capacity Lifepo4 Battery 12V 20AH for Robot,lighting System
Related Products
-
LiFePO4 Battery Pack for Golf Trolley 12V20ah 12v17ahNegotiableMOQ: 1 Set -
Fast Charging LiFePO4 Battery 12V20Ah With Carry Bag and Charger (Anderson Plug Optional)NegotiableMOQ: 1 Pack
-
12V1Ah Camcorder BatteryNegotiableMOQ: 300 Packs
-
12.8V12AH BatteryNegotiableMOQ: 1 Pack
-
Safe Lithium 12V12AH BatteryNegotiableMOQ: 1 Pack
12.8V20AH golf cart LiFePO4 battery, carry bag, charger and Anderson plug optional.
New Product:
LED Display available
Communication function available
More capacity can be choose
Spec sheet:
| Item | Spec |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 20Ah |
| Structure | 4S6P |
| Battery cell | 26650 3300mah |
| Dimension | W76*H166*L181mm |
| Internal resistance | ≤100mΩ |
| Relative humidity | ≤93% RH |
| Overcharge Protection Voltage | 4.0V±0.025V ( for random single cell) |
| Over discharge Protection Voltage | 2.2V±0.025V ( for random single cell) |
| Discharge Cutoff Voltage | 8.0V |
| Standard Charge Method | Constant 4A to 14.6V, then constant 14.6V with current taper to 0.2A |
| Max. Charge Current | 18A |
| Max Continuous Discharge Current | 18A |
| Peak Discharging Current | 20A |
| Max Discharge Voltage | 14.6V |
| Life Cycle | 2000 |
| Charge Temp. | 0-45 |
| Requirement of Voltage on Transportation | 13.2V- 13.6V |
Advantage:
1 Ultra-Long Lifecycle
2 Lighter Weight, Smaller Size
3 Higher Safety and Green
4 Maintenance Free
The advantage of LiFePO4 battery:
1. Smaller size, normally 1/3 as conventional SLA battery
2. Lighter weight, normally 1/3 as conventional SLA battery;
3. Longer cycle-lifespan battery is about 300cycles while LiFePO4 battery can be 1200 cycles or more;
4. Good performance in deep discharge, LiFePO4 battery can be 100%DOD while SLA battery is 60%-80%DOD, which means LiFePO4 battery will need less capacity in the same condition;
5. The lead acid battery will be end of life and price will increase.
6. Environmentally friendly of LiFePO4 battery.
Delivery time:
15 days for samples
30 days for mass order.
Payment:
L/C, T/T, Paypal.
Payment in advance
