LiFePO4 Battery pack 48V 110Ah for UPS,ENERGY STORAGE
1) Voltage:48V
2) Capacity:110Ah
3) High Safety & high-temperature working capability
4) High rate discharge current,discharge performance 1-3C.
5) Quality and security guaranted,with CE,ROHS approval.
6) Long cycle life(more than 2000 cycles)
7) Environmental friendly
8) 1/2 lightweight than normal lead acid battery
48v lifepo4 battery solution
We use IFM12-1100E1 (12.8V110Ah) battery module 4S1P to build 48V110Ah battery system. The basic parameters are as follows,
Item |
Specification |
Remark |
Battery module |
IFM12-1100E1(12.8V110Ah) |
|
Assemble method |
4S1P |
|
Nominal voltage |
51.2V |
|
Nominal capacity |
110Ah |
|
Whole energy |
5.6KWh |
|
Voltage range |
40~58.4V |
|
Max. constant charge current |
≤80A |
From controller |
Constant discharge current |
≤80A |
Limited by wire gauge |
Peak discharge current |
≤100A(10S) |
Limited by wire gauge |
Approx. weight |
<125Kg |
|
Approx. resistance |
<30mΩ |
|
Dimension(L*W*H) |
1100*330*260mm |
Close configuration |
Temperature range |
Charge:0~50℃ |
|
Discharge:-10~55℃ |
|
|
Storage temperature |
-10~45℃ |
|
Over voltage warning |
62.4V |
adjustable |
Over voltage alarm |
64.0V |
adjustable |
Under voltage warning |
44.8V |
adjustable |
Under voltage alarm |
36.8V |
adjustable |
Over temperature warning |
60℃ |
adjustable |
Over temperature alarm |
65℃ |
adjustable |
48v lifepo4 battery Main Features
1) Smart charging mode
2) Switching power supply’s control mode and parameter need not change
3) The discharge circuitry always connects switching power supply

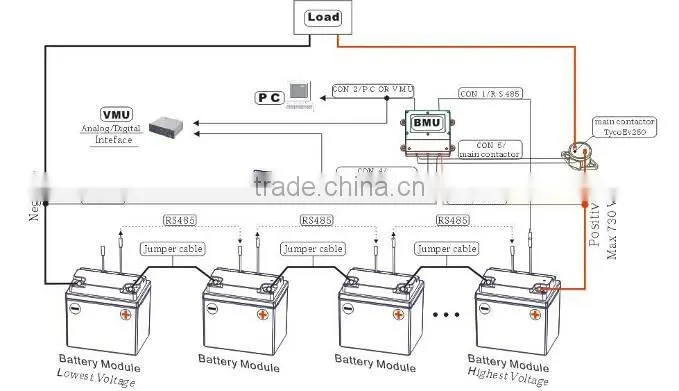

4) Beside the basic protection functions, BMS can monitor SOC, system / battery voltage, battery temperature, battery system charge/discharge current
5) RS485 or CANbus port for communication with switching power supply
48v lifepo4 battery configuration list
No. |
Item |
QTY |
Description |
1 |
Battery module |
8 pcs |
IFM12-1100E1(12.8V110Ah) 4S2P |
2 |
BMU |
1 pc |
BMU-LV |
Reference Price |
|
||
