24V LiFePO4 Battery 22AH for Medical Carts With UL,CE,FCC, IEC62133(CB)

24V LiFePO4 Battery 22AH for Medical Carts With UL,CE,FCC, IEC62133(CB) thumbnail-1
24V LiFePO4 Battery 22AH for Medical Carts With UL,CE,FCC, IEC62133(CB) thumbnail-2
24V LiFePO4 Battery 22AH for Medical Carts With UL,CE,FCC, IEC62133(CB) thumbnail-3
24V LiFePO4 Battery 22AH for Medical Carts With UL,CE,FCC, IEC62133(CB) thumbnail-4
24V LiFePO4 Battery 22AH for Medical Carts With UL,CE,FCC, IEC62133(CB) thumbnail-5
24V LiFePO4 Battery 22AH for Medical Carts With UL,CE,FCC, IEC62133(CB) thumbnail-6
24V LiFePO4 Battery 22AH for Medical Carts With UL,CE,FCC, IEC62133(CB) photo-1
24V LiFePO4 Battery 22AH for Medical Carts With UL,CE,FCC, IEC62133(CB) photo-2
24V LiFePO4 Battery 22AH for Medical Carts With UL,CE,FCC, IEC62133(CB) photo-3
24V LiFePO4 Battery 22AH for Medical Carts With UL,CE,FCC, IEC62133(CB) photo-4
24V LiFePO4 Battery 22AH for Medical Carts With UL,CE,FCC, IEC62133(CB) photo-5
24V LiFePO4 Battery 22AH for Medical Carts With UL,CE,FCC, IEC62133(CB) photo-6
Negotiable MOQ: 10 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hubei, China
Brand Name:
OCELL
Model Number:
IFM24-220E2
Contact Supplier Request Quote Chat Now
Ocell New Energy Technology Co., Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hubei, China
Brand Name OCELL
Model Number IFM24-220E2
Type Li-Ion
Nominal Voltage Other, 25.6V
Size Other, 195 x 130 x 183 mm (L*W*H)
Nominal Capacity 22Ah

24V LiFePO4 battery Features:

1) UL2054, UN38.3, CB(IEC62133) ,FCC, CE approved;

2) Real-time data mornitoring is available via communication box;

3) Fuel gauge for roughly judging is available;

4) Rubost housing for easy-carrying;



24V LiFePO4 battery VS traditional SLA battery:

1) Smaller size, normally 1/3 of traditional SLA battery;

2) Lighter weight, normally 2/3 of traditional SLA battery;

3) Longer cycle-life, normally 2000 cycles vs 300 cycles for SLA battery;

4) Higher available capacity in deep discharge,normally 100%DOD vs 60%∼70%DOD for traditional SLA battery;

5) Stable power output vs traditional SLA battery;

6) Totally environmental-friendly;





24V LiFePO4 Battery Specification:

No. Item General Parameter Remark
1 Rated Capacity 22.0Ah Standard discharge (0.2C) after standard charge (0.2C)
2 Minimal Capacity 21.0Ah
3 Nominal Voltage 25.6V
4 Life Expectation Residual capacity is more than 60% of the rated capacity 1)Charge: CC at 0.2C to 29.2V, then CV till current taper to 0.05C
2)Rest: 30min.
3)Discharge: 0.2C to 20.0V
Temperature:20±5°C
Carry out 1200cycles
5 Discharge cut-off voltage ≥19.2V (2.4V/cell) adjustable
6 Charging cut-off voltage  ≤31.2V(3.9V/cell) adjustable
7 Assembly method IFR18650EC-1.5AH 8S15P
8 Housing material ABS+PC Flame Retardant Plastic
9 Standard charge 0.2C constant current (CC) charge to 29.2V,then constant voltage (CV) 29.2V charge till charge current decline to ≤0.05C Charge time : Approx 7.0h
10 Standard discharge Constant current 0.2C
Cut-off voltage 20.0V
11 Maximum Continuous Charge Current 11A at 20°C Heat will accumulate inside, 10A or less  recommended for better performance and life
12 Maximum Continuous Discharge Current 20A at 20°C Over current 60±10A (7.2ms~11ms)
13 Operation Temperature Range Charge: 0~50°C 60±25%R.H.
Discharge: -10~50°C
14 Storage Temperature Range Less than 1 year: 0~25°C 60±25%R.H.
Less than 3 months:-5~35°C at the shipment state
15 Approx. Weight 5.9Kg Specific energy: 93Wh/Kg
16 Dimension L195*W130*H183mm Energy density: 116Wh/L
(BCI Group: U1R)
17 Balancing function Yes
18 Short circuit protection Recover after charging
19 Terminals Female-threaded terminals: M6*1.25, build-in BMS

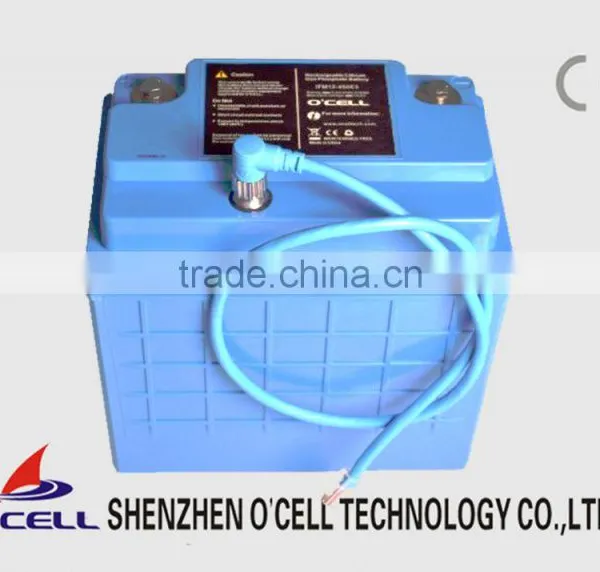

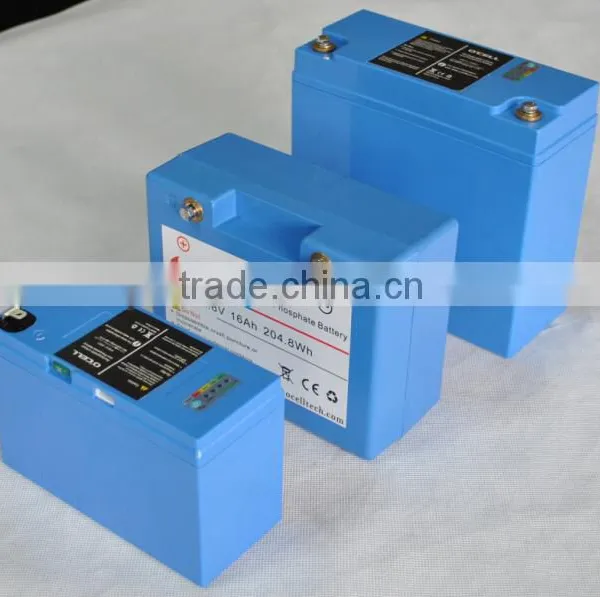

12V LiFePO4 battery SMbus batteries

Model

IFM12-6.6E3

IFM12-90E3

IFM12-200E3

IFM12-450E3

Nominal Capacity

6.6Ah

9.0AH

20.0AH

45.0AH

Nominal Voltage(V)

12.8V

Max. Voltage(V)

14.6V

Standard Charge Current(A)

3.3A (CC-CV)

4.5A (CC-CV)

10A (CC-CV)

20A (CC-CV)

Max. Constant Discharge Current(A)

13A

15A

18A

38A

Max. Pulse Discharge Current

20A(3S)

20A (3S)

20A (3S)

40A (3S)

Assembly method

IFR26650EC-3.3Ah 4S2P

IFR18650EC-1.5Ah 4S6P

IFR26650EC-3.3Ah 4S6P

IFR18650EC-1.5Ah 4S30P

Battery Housing

ABS + PC

Approx. Weight(g)

0.9 Kg

1.25Kg

2.5Kg

5.9Kg

Approx. Dimensions

 151X65X95mm

151X65X95mm

76X166X181mm

195X130X183mm

Life Expectation (80% DOD)

>2000 cycles

Communication protocol

SMbus

Fuel gauge

4 led indicators

 5 led indicators

Terminals

 F2 M5 M6

Self-discharge Ratio/month

≤3%

Temperature

Charge

0°C~45°C

Discharge

-20°C~55°C

Storage

-10°C~35°C



Contact Johnson AT for customized models

Skype: csulwp

QQ: 20146075



 24V LiFePO4 Battery 22AH for medical carts with UL,CE,FCC, IEC62133(CB)24V LiFePO4 Battery 22AH for medical carts with UL,CE,FCC, IEC62133(CB)24V LiFePO4 Battery 22AH for medical carts with UL,CE,FCC, IEC62133(CB)24V LiFePO4 Battery 22AH for medical carts with UL,CE,FCC, IEC62133(CB)
