Home > Electrical & Electronics > Battery, Storage Battery & Charger > Storage Battery > 12V6.6Ah Lifepo4 Battery Pack

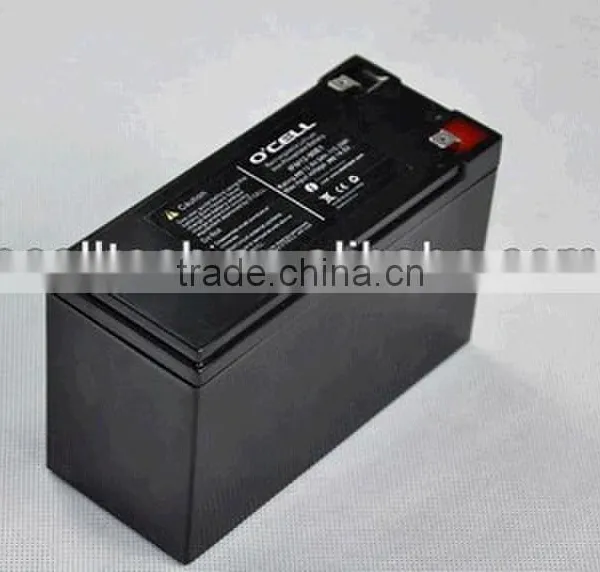

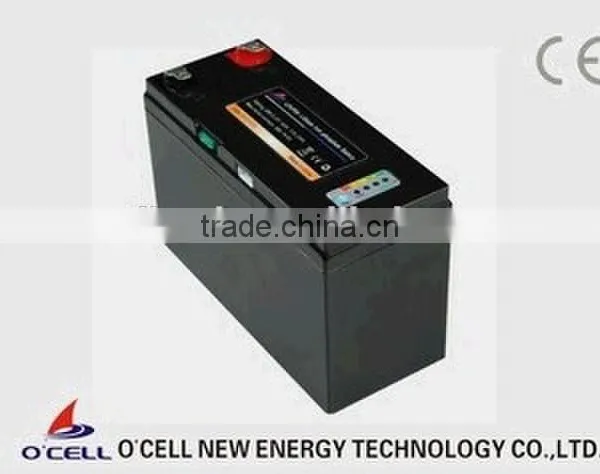

12V6.6Ah Lifepo4 Battery Pack
Negotiable
MOQ: 50 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hubei, China
Brand Name:
O'cell
Model Number:
IFM12-66E3
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
12V9Ah Lifepo4 Battery PackNegotiableMOQ: 10 Sets -
12V LiFePO4 Battery 45AH With Smbus, UL, FCC, IEC62133 ApprovedNegotiableMOQ: 110 Units
-
Lifepo4 Battery Pack 12V9AH for UPS Replace Lead Acid BatteryNegotiableMOQ: 1 Set
-
Lifepo4 Battery Pack 12V7AH for UPS Replace Lead Acid BatteryNegotiableMOQ: 1 Set
-
Solar Battery Lifepo4 Battery Lithium 12V40Ah PackNegotiableMOQ: 1 Set
Place of Origin
Hubei, China
Brand Name
O'cell
Model Number
IFM12-66E3
Type
Li-Ion
Nominal Voltage
12V
Size
Other, 151*65*97mm
Nominal Capacity
6.6Ah
Features:
UL1642 approved cells;
Steady power output vs lead acid battery;
3~5 times longer cycle life vs lead acid battery;
Environmental friendly vs lead acid battery;
1/3 Lightweight vs lead acid battery;
Specification
| 1 | Rated Capacity | 6.6Ah | Standard discharge(0.5C)after standard charge(0.5C) |
| 2 | Minimal Capacity | 6.2Ah | |
| 3 | Nominal Voltage | 12.8V | |
| 4 | Life Expectation | Higher than 60% of the Initial Capacity of the battery pack | 1)Charge: 0.5C CC to 14.6V, then CV till current to 0.05C 2)Rest: 30min. 3)Discharge: 0.5C to 10.0V 4)Carry out 1200cycles (Temperature:20±5°C) |
| 5 | Discharge cut-off voltage | 2.4V/cell (≥9.6V) | 10.0V(recommended) |
| 6 | Charging cut-off voltage | 3.9V/cell (≤15.6V) | 14.6V(recommended) |
| 7 | Cell and assembly method | IFR26650EC-3.3Ah | 4S2P |
| 8 | Packing material | 12V7AH SLA battery housing | |
| 9 | Standard charge | 0.5C constant current(CC) charge to 14.6V,then constant voltage (CC)14.6V charge till charge current decline to ≤0.05C | Charge time : Approx 3.5h |
| 10 | Standard discharge | Constant current 0.5C Cut-off voltage 10.0V | |
| 11 | Maximum Charge Current | 6.6A | |
| 12 | Continuous Discharge Current | 13A | Over current: 20A (≤5S) |
| 13 | Operation Temperature Range | Charge: 0~45°C | 60±25%R.H. |
| Discharge: -10~50°C | |||
| 14 | Storage Temperature Range | Less than 1 year : 0~25°C | 60±25%R.H. at the shipment state |
| Less than 3 months:-5~35°C | |||
| 15 | Weight | Approx: 0.9Kg | |
| 16 | Pack Dimension | L151*W65*H97mm |
