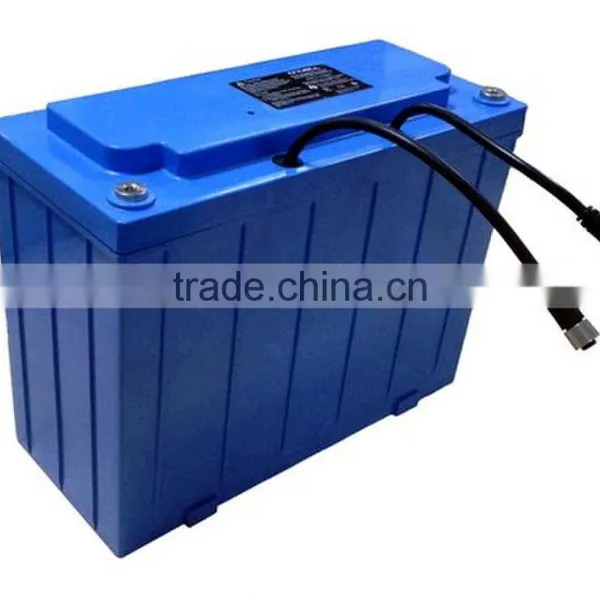

Lithium Ion 12V170Ah LiFePO4 Battery Pack for Back-up System

Lithium Ion 12V170Ah LiFePO4 Battery Pack for Back-up System thumbnail-1
Lithium Ion 12V170Ah LiFePO4 Battery Pack for Back-up System photo-1
US$ 1,000 - 1,500 MOQ: 5 Packs
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OCELL
Model Number:
12V 170Ah
Contact Supplier Request Quote Chat Now
Ocell New Energy Technology Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN HK
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name OCELL
Model Number 12V 170Ah
Composed Type Other, In series and parallel
Type Li-Ion
Components Other, LiFePO4,lithium-ion
Size 270*156*348mm
Voltage 12V
Weight 20Kg
Nominal Capacity 170Ah
Application 12V equiments,UPS,electric boat

Lithium ion 12V170Ah LifePO4 Battery For back-up system



Battery Comparison:

  • Smaller size,normally 1/3 as large as conventional SLA battery;
  • Lighter weight,normally 1/3 as conventional SLA battery;
  • Longer cycle-life,SLA battery is about 300cycles while LiFePO4 battery can be 1000 cycles or more;
  • Good performance in deep discharge,LiFePO4 battery can be 100%DOD while SLA battery is 60%∼80%DOD,which means LiFePO4 battery will need less capacity in the same condition;
  • Totally environmental-friendly.

 Features:

Battery module  170Ahr
Approx. Dimension   270 mm x 155mm x 347 mm  (L*W*H)
Approx. Weight  19.5kg
Nominal voltage  12.8V
Maximum voltage  14.6V
Minimum voltage  10.0V
Nominal load current  150A max. continuous current @ 23° C
Peak load current  300A max for 30 sec @ 23° C
Charge protection  When the Battery modules are charged to full, they will communicate with BMU, and
the  BMU  has  the  capability  to  turn  off  the  charger  or  open  the  main  contactor.  The
battery module itself does not have any switch to disconnect the charger.
Balancing  The  intra-module  balancing  circuit  is  used  to  compensate  slight  capacity  imbalance
among the four cell blocks within a battery module.
The  inter-module  balancing  circuit  is  used  to  compensate  slight  capacity  imbalance
between different battery modules in series connection.



contact sales11 AT for more details.



Specifiction:

Item IFM12-1700E1
Nominal Capacity 150Ah to 170Ah
Nominal Voltage 12.8V
Dimensions Including Terminals (L*W*H) 270*155*347mm
Approximate Weight 19.5Kg
Terminals, Female-threaded M6*1.25
Specific Energy 84Wh/kg
Standard Discharge Max. Constant Current 30A
Max. Pulse Current (30S) 40A
Cut-off Voltage 10V
Standard Charge Charge Voltage 14.6V
Float Charge Voltage 13.8V
Max. Constant Current 25A
Charge Time 2.5hrs
DC Internal Resistance (Approx.) 15mΩ
Water/Dust Resistance IP56
Temperature  Charge  0°C~45°C
Discharge  -10°C~55°C
Storage  -10°C~35°C

  contact sales11 AT for more details.



Lithium ion 12V170Ah LiFePO4 Battery Pack for back-up system
