Specifications
LiFePO4 battery1)Ultra-long lifecycle-2000times
2)Lighter weight and Smaller size
3)High safety
4)Free maintaenance

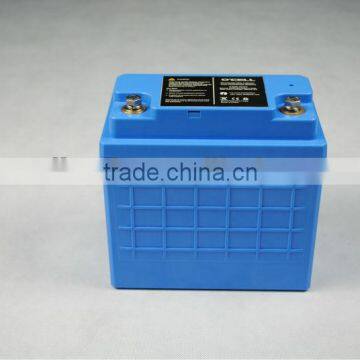

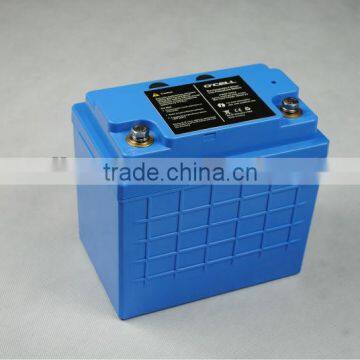

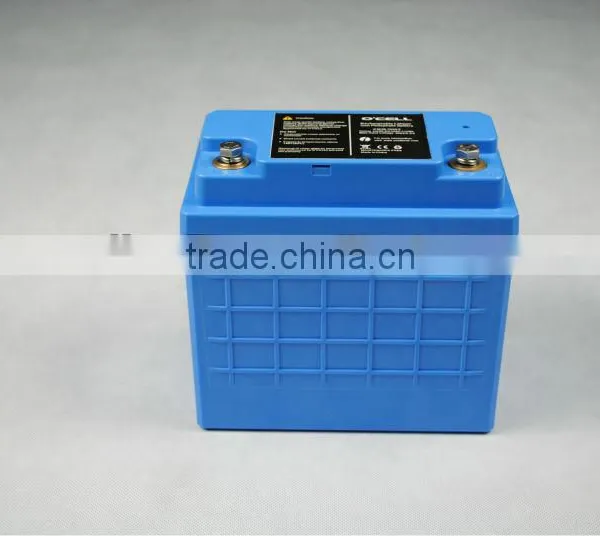

O'CELL 12V40Ah LiFePo4 Battery Pack:
Usage Notes:
Our OL12V400F LiFePO4 Battery Pack module, with nominal voltage of 12V and capacity of 40Ah is assembled with high power LiFePo4 Cells. It can be used individually and can be connected in serial or parallel to achieve given voltage and capacity.
Features:
a. Extremely safe and stable chemistry: PCB and/or BMS built inside to balance protect the battery.
b. Long life-cycle: Can be circularly used, best can up to 2000 times recycles, 8 times of Lead acid battery.
c. Lighter weight, with the best power-to-weight ratio: 1/3 of Lead acid battery weight.
d. Good performance at high temperature and high temperature resistance
e. Low self-discharge rate, less than 3% monthly.
f. No memory effects and highly efficient charge.
g. Environment friendly: Clean and Green energy poses no pollution on our environment.
Item |
Unit |
Specifications |
Typical Capacity |
Ah |
40.0 |
Minimum Capacity |
Ah |
40.0 |
Nominal Voltage |
Voltage |
12.0 |
Dimension (L*W*H) |
mm |
197*131*183mm |
Approx.Weight |
Kg |
6.5 |
Max. Charge Voltage |
Voltage |
14.6 |
Cut-Off Discharge Voltage |
Voltage |
8.0 |
Standard Charge Current |
Amps |
0.2C |
Rapid Charge Current |
Amps |
1.0C |
Continuous Discharge Current |
Amps |
24.0 |
Pulse Discharge Current(5S) |
Amps |
80.0 |
Storage Temperature Range |
oC |
-20oC--70oC |
Working Temperature (Charging) |
oC |
-10oC--45oC |
Working Temperature (Discharging) |
oC |
-20oC--60oC |
Life Cycle(2C,80%DOD) |
|
1000 |
Life Cycle(1C,80%DOD) |
|
2000 |
Application |
E-bike,E-Scooter,E-Wheelchair,E-motor,EV,E-Golf Car,E-Tour Car, Car Starter |
|
