Specifications
24V20AH LiFePO4 battery1. High discharge rate
2. Low impedance
3. Fast charge
4. Safe performance

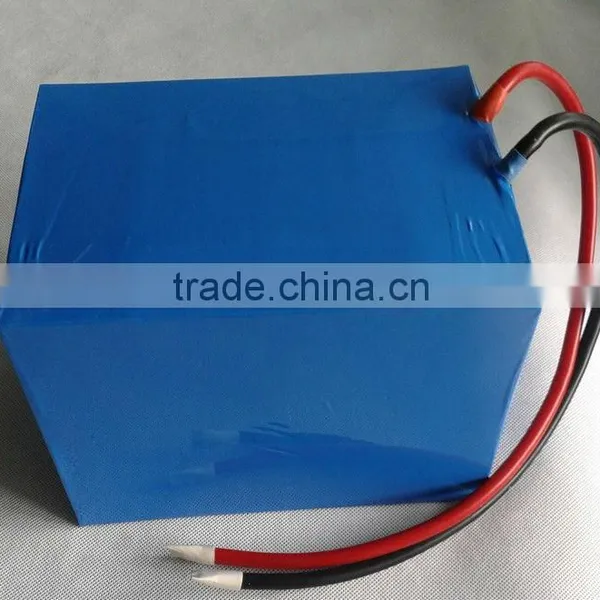

lifepo4 24V 20Ah electric scooter battery
1. High discharge rate
2. Low impedance
3. Fast charge
4. Safe performance
lifepo4 24V 20Ah electric scooter battery
1. Nominal voltage: 24V
2. Nominal capacity: 20Ah
3. Continuous diacharge current: 0.5C(10A)
4. Max discharge current: 1C(20A)
5. We have several series for your reference: 24V, 36V, 48V, 60V etc.
We can customize different voltage and capacity as customers' requirement.
Voltage (V) | Capacity (Ah) | Weight (kg) | Dimensions (mm) | Motor Power (W) |
12 | 40 | 4.5 | 185*105*145 | 400 |
24 | 10 | 3.0 | 150*70*145 | 250 |
20 | 4.5 | 145*135*145 | 350 | |
30 | 6.5 | 205*135*145 | 450 | |
40 | 8.5 | 280*135*145 | 800 | |
36 | 10 | 4.0 | 115*135*145 | 400 |
20 | 6.5 | 210*135*145 | 600 | |
30 | 10.0 | 305*135*145 | 800 | |
40 | 13.5 | 280*200*145 | 1200 | |
48 | 10 | 4.5 | 150*135*145 | 550 |
20 | 9.0 | 280*135*145 | 800 | |
30 | 16.0 | 205*305*135 | 1200 | |
40 | 20.0 | 275*305*135 | 1600 | |
60 | 10 | 6.0 | 180*135*145 | 600 |
20 | 11.0 | 280*200*145 | 1000 | |
30 | 20.0 | 240*305*135 | 1500 | |
40 | 25.0 | 320*305*135 | 2000 |
Features:
a. Extremely safe and stable chemistry: PCB and/or BMS built inside to balance protect the battery.
b. Long life-cycle: Can be circularly used, best can up to 2000 times recycles, 8 times of lead acid battery.
c. Lighter weight, with the best power-to-weight ratio: 1/3 of Lead acid battery weight.
d. Good performance at high temperature and high temperature resistance
e. Low self-discharge rate, less than 3% monthly.
f. No memory effects and highly efficient charge.
g. Environment friendly: Clean and Green energy poses no pollution on our environment
We could customize the current according to your request.
The input plug can be choosed by your preference.
Any question, please contact Coco Guo for help!
Tel: +86-755-81781377 Ext. 8028
Fax: +86-755-81781420
Mobile: +86-15820471001
Skype: coco.guo55
MSN: coco.guoliqin at hotmail
