12V Lithium Iron Phosphate Battery 100Ah for Solar Energy / LiFePO4 12V 100Ah Battery Pack
- 3000 Pack / Packs per Month
- SHENZHEN OR HONG KONG
- LiFePO4 battery Lithium ion battery 12V 20Ah 30Ah 40AH 50Ah for All-in-one Solar street light
- LiFePO4 Battery Pack 12V 16Ah for solar lighting, for golf trolley battery
- LiFePO4 battery 12V3.3Ah with charger for solar light
- 12V 40Ah LiFePO4 Battery lithium deep cycle batteires for solar energy storage
- 12V 12Ah LiFePO4 Battery for Golf Trolley Battery, Lithium ion 12V12Ah battery
- LiFePO4 battery 12V 45Ah with SMBus for Medical Cart, Lithium ion 12V45Ah
Product Details
Place of Origin: | Guangdong, China | Brand Name: | O'CELL | Model Number: | 12V 100Ah |
Type: | Other, Lithium iron phosphate battery | Nominal Voltage: | Other, 12,8V | Size: | Other, L260*W158*H246mm |
Nominal Capacity: | 100Ah |
Packaging Details
1pc/carton, 315*215*295mm, 480pcs/20" container.
Product Description

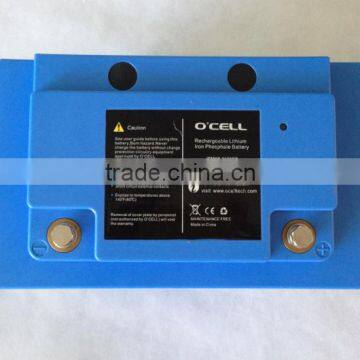

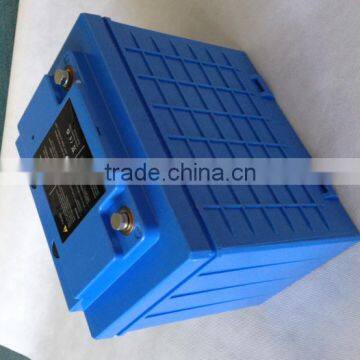

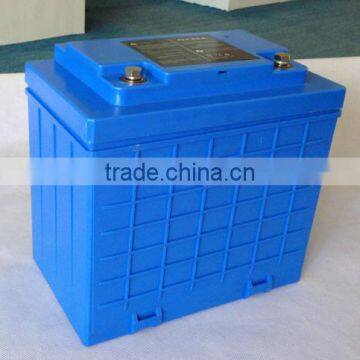

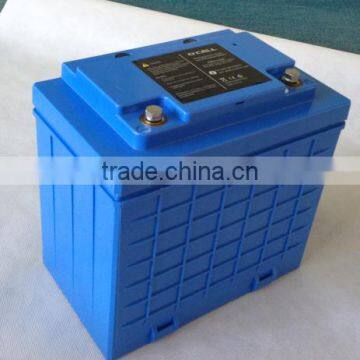

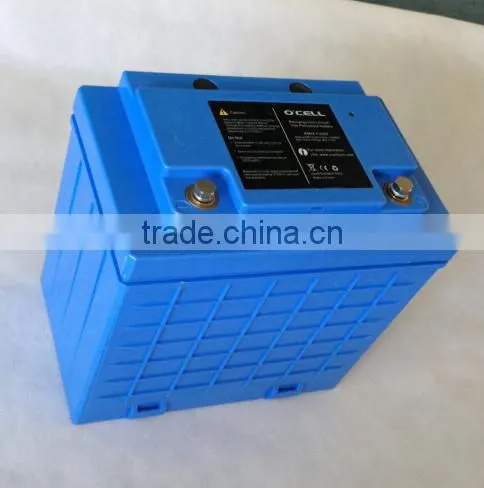

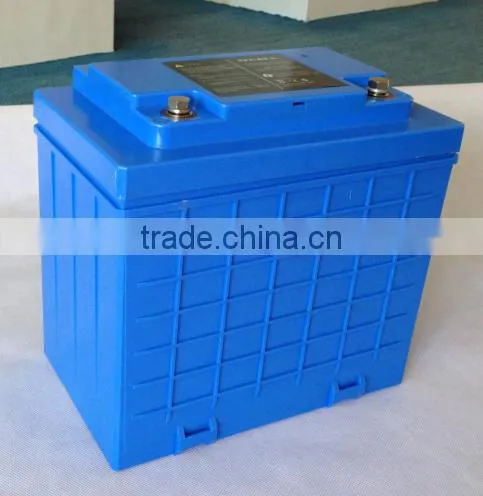

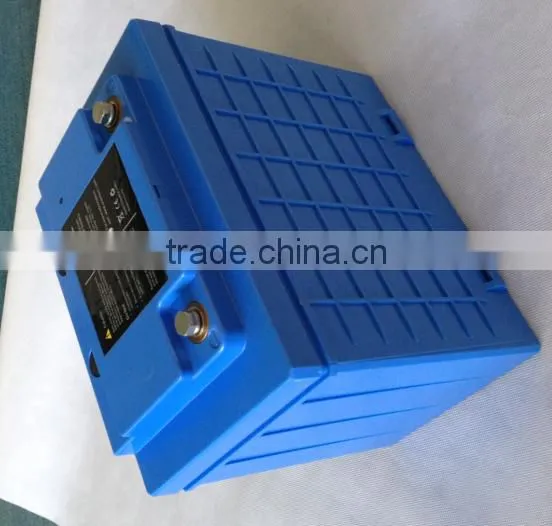

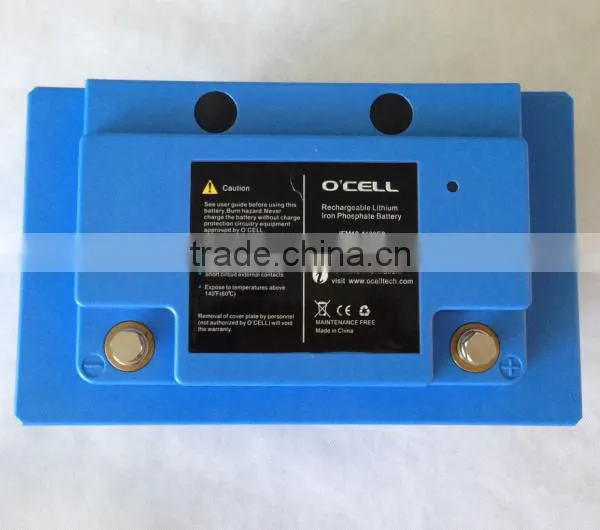

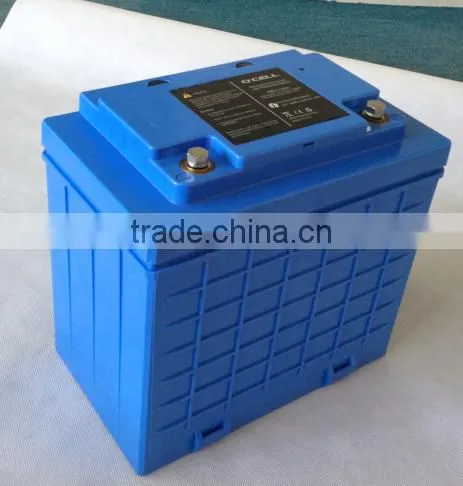

12V Lithium Iron Phosphate Battery 100Ah for Solar Energy
Description:
O'CELL integrates the slave module(PCBA) into batteries and developed a distinctive series of battery module. BMU will manage the whole system by opening/closing the contactor.
1. Interchangeable design to replace Lead Acid Battery.
2. The system can be scaled up by connecting modules in series and parallel.
3. IP56 dust and water proof design for the housing.
4. LED indicator will show the state of battery module.
Applications:
1. Eco battery power system for light electric vehicle, HEV, EV, etc.
2. Energy storage system for solar, wind or solar-wind system, etc.
3. Backup power system for telecom base station, communication equipments, power grid, banks, UPS, etc.
Specifications:
Item | IFM12-1100E1 | |
Nominal Voltage | 12.8V | |
Nominal Capacity(0.5C) | 110Ah | |
Dimensions including terminals(L*W*H) | 260*158*245 | |
Approximate Weight | 15Kg | |
Terminals, Female-threaded | M8*1.25 | |
Specific Energy | 90Wh/kg | |
Max. Constant Current | 150A | |
Standard Discharge | Max. Pulse Current (30S) | 300A |
Cut-off Voltage | 10V | |
Charge Voltage | 14.6V | |
Standard Charge | Max. Constant Current | 50A |
Charge Time | 2.5hrs | |
DC Internal Resistance (Approx.) | 6m | |
Water/Dust Resistance | IP56 |
² Modules communicate via RS485 by BMU(Battery Management Unit)
² Inter-module & intra-module balancing via BMU
² Enhanced SOC calculation via BMU
² Charge and discharge control via BMU
² Temperature monitor via BMU
² Isolation measurement via BMU
² Easy installation up to 160KWh system in series & parallel
² Rugged mechanical and easy handling design
² Built in LED battery status indicator
² Can be charged with most lead-acid chargers
² Thousands of cycles under normal conditions
Competitive Advantage:
1. Intrinsic Safety from LiFePO4 Material
Lithium ion battery made with O'CELL LiFePO4 cathode material can pass the safety tests easily such as nail test, 3C/15V over-charge test, etc.
2. Better Shelf Life
The shelf life of lithium ion battery can be measured by capacity retention at full charge state. Usually, the capacity loss of self-discharge can be divided into recoverable and irrecoverable capacity. O'CELL LiFePO4 has excellent shelf life. The self-discharge rate is about 3% per month, the capacity can recover up to 98% after long time storage.
3. Good Rate Performance
The discharging voltage platform of O'CELL LiFePO4 battery is flat. LiFePO4 power battery has good rate performance, the capacity @20C is more than 95% of 1C discharging capacity at room temperature. The maximum temperature rise is less than +20ºC.
4. Wider Operation Temperature
1.Operation temperature range:-20~+60℃;
2.Storage temperature range:-40~+60℃;
3.The capacity at -20℃ is more than 70% that of +25℃;
4.The capacity at +60℃ is more than 98% that of +25℃.
5. Excellent Cycle Life
During charging and discharging, the cathode (LiFePO4) and anode (graphite) in battery cause little changes of total volume. The small volume change will bring little internal stress to the separator, which will be helpful for the battery safety and cycle life. After 3,000 cycles, the residual capacity of O'CELL LiFePO4 battery is more than 75% of that of nominal capacity.
Company Profile
O'CELL New Energy Technology Co., Ltd., established in Oct.2008, is a high-tech enterprise which involves in research, production, sales and services of qualified Lithium Iron Phosphate (LiFePO4) cell, battery pack, reliable battery management system and one-stop power solution, for a wide range of applications worldwide including HEV, EV, AGV, Solar & Wind Power Generation System, UPS, Lighting, Toys, etc.
O'CELL's manufacturing facilities are ISO9001:2008 and ISO14001:2004 registered. It's products are compliant with CE, RoHS and have passed UN transportation testing, which is required for international transportation of all lithium batteries.
O'CELL people are the engine of our success today and in the future. They are motivated to keep well informed about the most recent technological developments and modernization management. Meanwhile, O'CELL continues to invest in research and development in order to take a leadership role in advanced lithium battery technology.

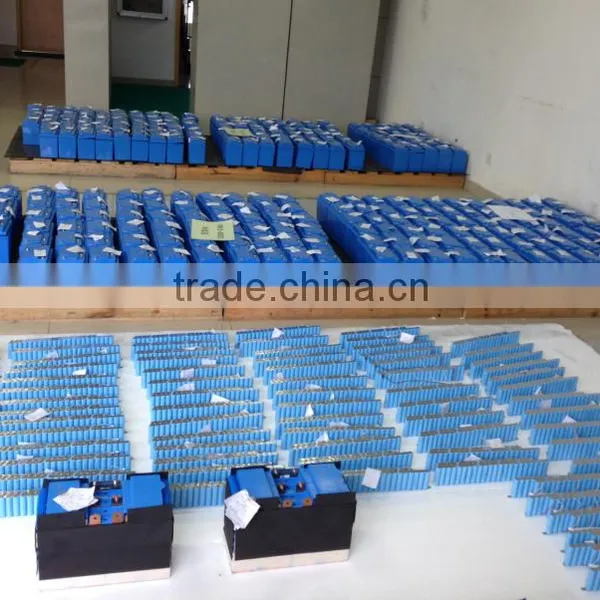

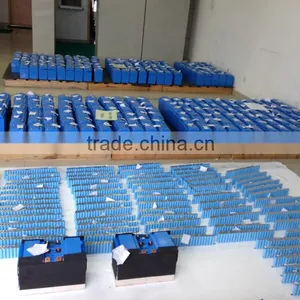

O'CELL factory covers over than 96,000m2 and bases in Yichang which is famous for Three Gorges and the biggest water power center in the world. Taking the advantage of sufficient electricity, O'CELL will pass the benefit to our customers. O'CELL sincerely expects to cooperate with our customers for mutual benefit and common development. O'CELL also hopes that we can contribute to new energy development and green circular economy.
